15
QM-710/715HD/720

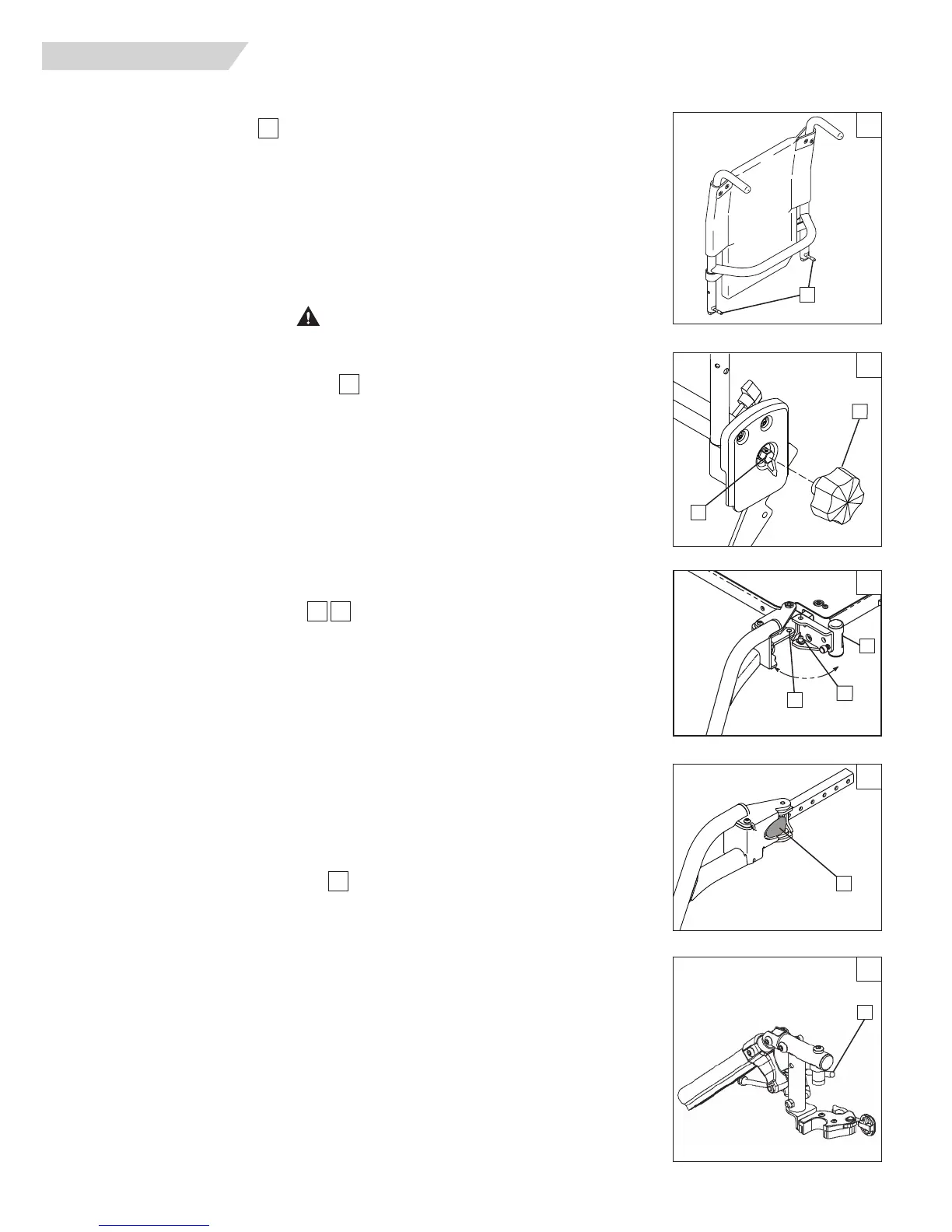

VIII. USE AND MAINTENANCE
1
3
4
5
2
A
B
C
D
E
F
G
H
I. FOLDING BACKREST
Quickie QM-710/715HD/720 wheelchairs are shipped with backrest in folded position. (optional)
1. Upright Positioning
a. Lift backrest to upright position so that latch handles (A) lock into place.
b. Backrest is ready for use.
2. Folding Backrest
a. Lift and turn backrest latch handles (A) inward
or outward.
b. Fold backrest forward.
WARNING
Backrest latches must be locked into place before operating wheelchair.
J. MANUAL RECLINE OPERATION
The ASAP II seating system has two manual recline options.
1. Manual operation with wrench
a. Using a 16mm socket wrench at point (B) Rotate clockwise to recline, and counterclock-
wise to return the back to an upright position.
b. Backrest is ready for use.
2. Manual operation with recline knob
a. Using the manual recline knob (C) on the side of the chair, rotate clockwise to recline, and
counter-clockwise to return the back to an upright position
K. SWING-AWAY FOOTRESTS
1. Installation
a. Place swing-away pivot pin (D) into the locating hole (E) on top of the hanger mount with
the footrest facing outward from frame.
b. Rotate the footrest inward until latch plate locks (F) into place on locking bolt.
2. Removal
a. To remove footrest, press quick-release lever (G).
b. Rotate footrest outward and lift.
L. ELEVATING LEGREST
(Optional)
1. Installation
To install or remove Elevating Legrest (ELR) see instructions for Swing-away Footrest installation.
2. Adjustment
a. To raise legrest, lift to desired position. Legrest will automatically lock in place.
b. To lower legrest, while seated in chair, first lift slightly then press release lever (H) down
and lower legrest to desired position.
1
2
43
5
