3) Pass the bolts through one of the holes in the back rest
bracket, (Fig.5.14).
4) Tighten each bolt using a 5.0mm Hexagon wrench,
(Allen Key) and a 10.0mm spanner, (Fig.5.15).
5) The Lap Belt correctly fitted to the Rumba Modular,
(Fig.5.16).

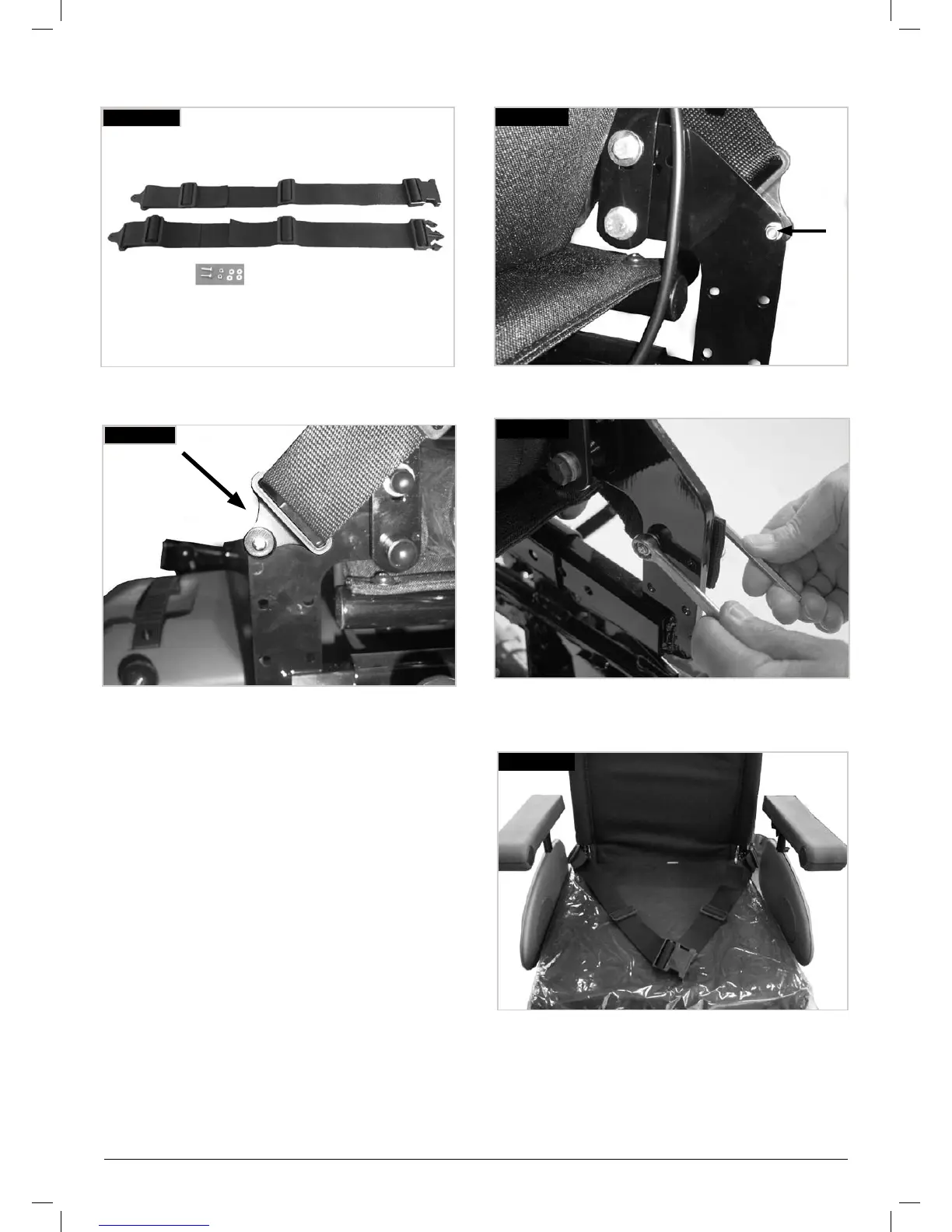

5.8. Fitting The Lap Belt Rumba Modular:
1) Remove Lap belt (Pt No. 52596) from bag, (Fig.5.12).
2) Feed the ends of the lap belt through the spaces
between the back rest & the left & right side guards. Place
one large washers over each bolt & feed the bolts through
the lap belt , (Fig.5.13).
Fig.5.14
Fig.5.12
Fig.5.15
Fig.5.16
Fig.5.13
To Next Page
