9.0 Batteries and Charging:
WARNING!
Please read the owner’s manual supplied with the charger
carefully. The general procedures and effects for the
interference with the chair and the batteries remain valid.
WARNING!
Do not expose any part of the battery to direct heat (i.e.
naked flame, gas fire).
WARNING!
When charging always place your charger on a hard
surface in a room with good ventilation.
WARNING!
You should not charge your batteries in outdoor
conditions.
9.1. Battery & Charger Specication:
Batteries:
24 V (2x12 V) / 40 Amph., maintenance-free
Dimensions: 197 x 165 x 170 mm
Capacity at the discharge time 34 Ah/5 h
Charger:
Connector: 3 pin “Cannon” type
Charger: 24 Vd.c. 8 A
9.2 Electrical fuses, (Circuit Breakers):
To prevent the wheelchair from becoming overloaded,
an electronic safety system has been built in, which
automatically disconnects the battery from the control.
This device cuts in only in extreme circumstances, such
as repeated climbing of steep hills in very high ambient
temperatures. The fuse button, located on the side of the
battery, trips immediately and the wheelchair comes to a
stop. The fuse can be reset by pressing the button. After a
few seconds the wheelchair can be driven again normally,
(Fig.9.1).
Fuses:
1. 50 A Fuses are connected into the battery harnesses to
protect the batteries and wiring.
2. 30 A Circuit Breakers with reset buttons. These are
located on the front left side of the battery boxes.
To replace them contact your Sunrise Medical authorised
dealer, who will also diagnose the fault.
9.3 Batteries (Fig. 9.2 - 9.9):
The batteries are contained within 2 Battery Boxes located
under the Seat Sling.
To remove the batteries, should they require changing or
maintenance:
Release the four retaining hooks located at every 1.
battery box mounting stud.
Disconnect the lead that joins the two battery boxes 2.
together.
Pull upwards & back to lift out the first battery box.3.
On the remaining battery box, disconnect the Black 2 4.
pin connector from the wheelchair power module.
Pull the battery box upwards & out taking care not to 5.
trap the lead.
Squeeze the edges of the battery box clips & lift the 6.
lid
Carefully lift the battery terminal insulating sleeves, 7.
one at a time.
Use 2 x 10.0mm spanners to undo the terminal 8.
bolts.
When fully disconnected, carefully lift the battery out 9.
of the battery box.
WARNING!
Do not short circuit the battery terminals. Remember that
spanners are conductive and if dropped across the battery
terminals may cause severe burns and/or explosion!
WARNING!
Batteries are heavy. Use correct lifting techniques when
removing them from the wheelchair and from the battery
boxes.
To refit the batteries please reverse the above procedure.
Circuit Breakers

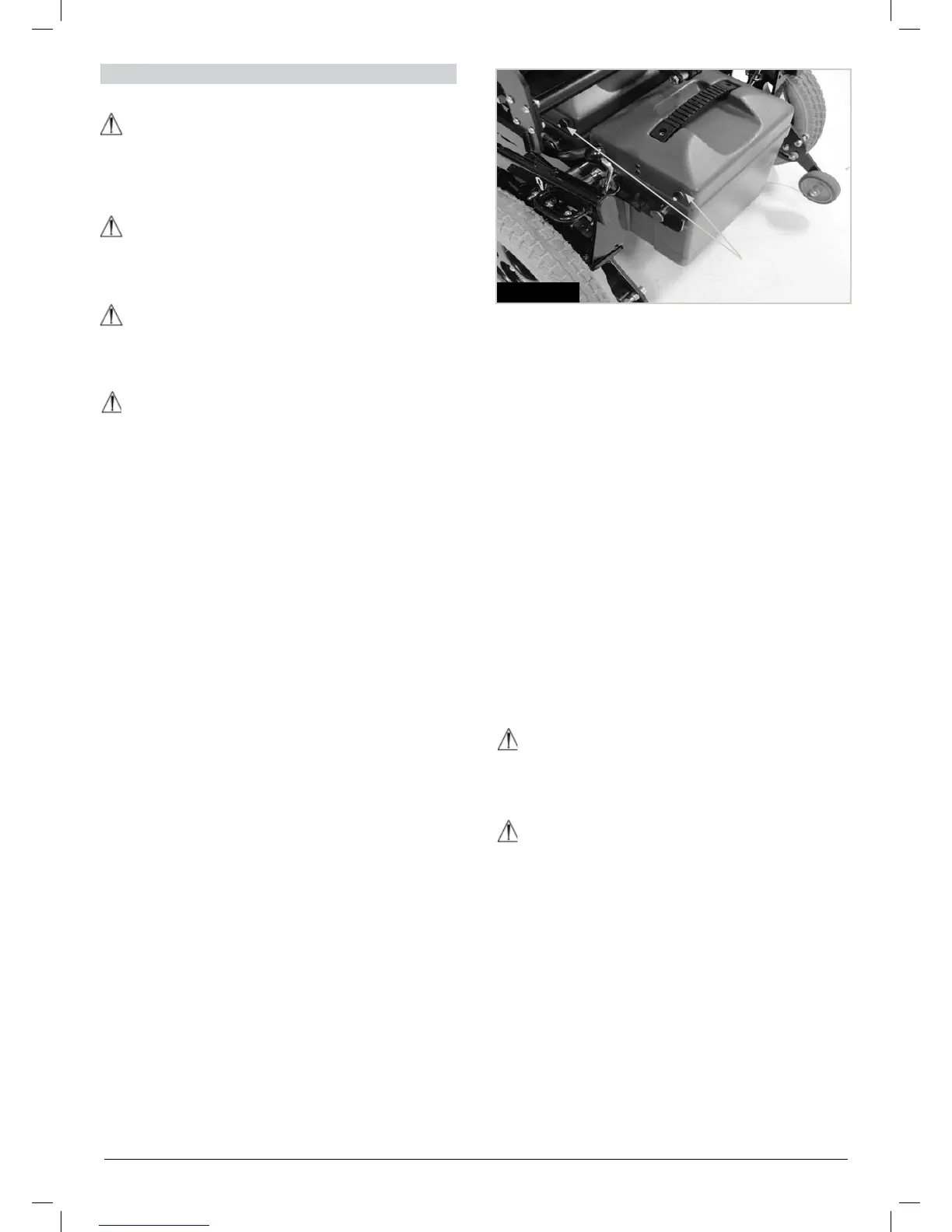

Fig. 9.1
