SALSA

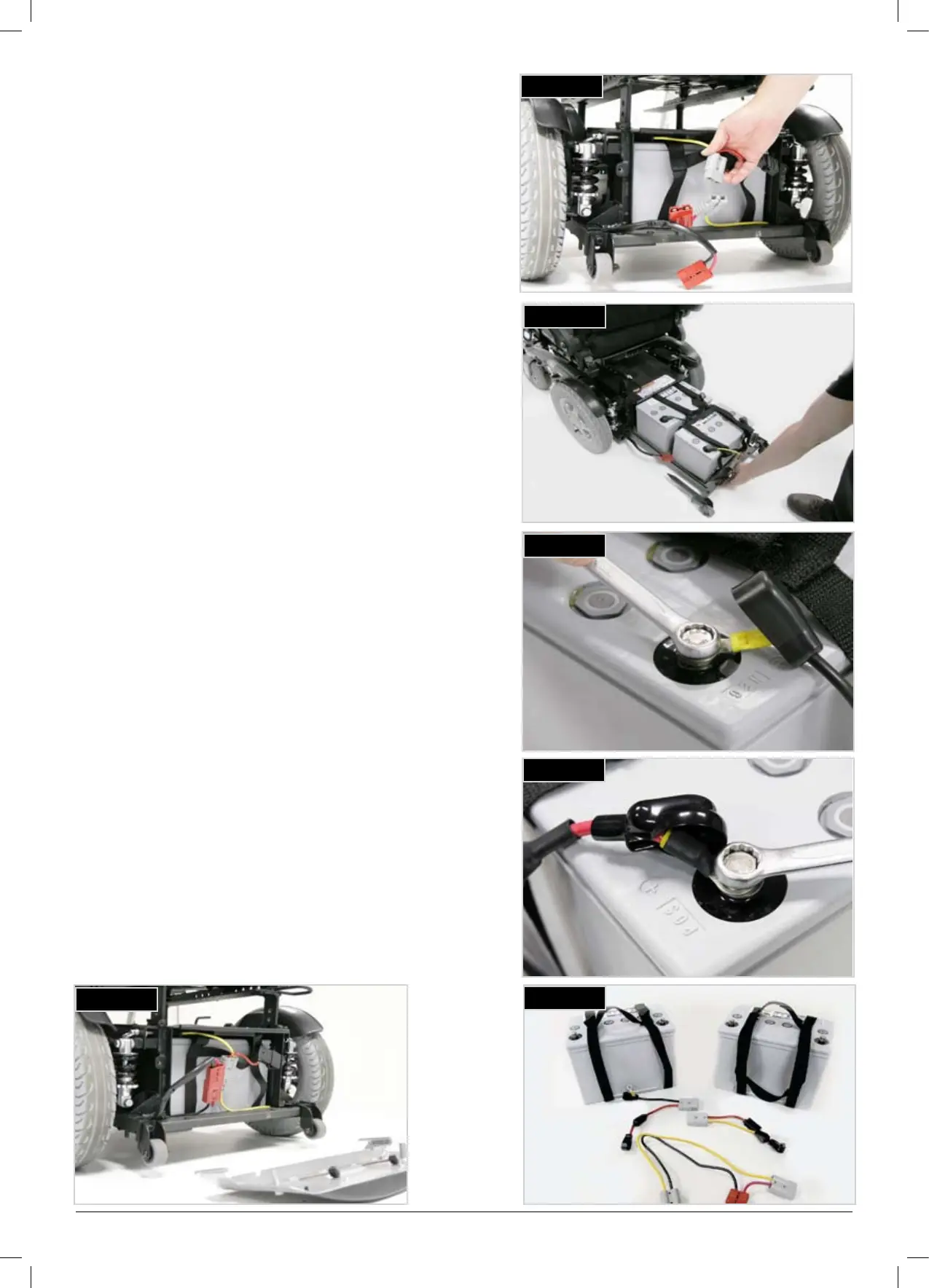

Parts in the battery box, (Fig.13.22):
Sliding support tray for 2 x 12V batteries.•
2 x battery looms with fuse and ring terminals.•
Battery link harness with red and grey connectors.•
Accessing the Batteries
Undo the TWO securing knobs on the rear cover, •
(Fig.13.17).
The TWO battery connector plugs are visible.•
Disconnect the RED plug.•
Disconnect the GREY plug, (Fig.13.18).•
Grab the rear chassis between the stabiliser wheels •
& pull backwards. The battery tray will slide out,
(Fig.13.19).
Handle the batteries using the straps provided.•
Always use correct lifting techniques as batteries are •
heavy.
The two battery looms are identical. One is required to be
connected to each battery:
To disconnect the batteries, lift up the insulator sleeve •
& use 11.0mm spanner to undo the bolt. Always fit the
insulator sleeve when reinstalling, (Fig.13.20).
The red wire containing the 150A fuse connects to the •
battery Positive (+) terminal, (Fig.13.21).
The other black wire connects to the battery Negative •
(-) terminal, (Fig.13.20)
The battery terminals must be covered after connection •
with the caps provided on the cable.
Both batteries are fitted to the battery tray with the •
terminals rear-most, so that the grey connectors can
be mated with the battery link harness.
Ensure the link harness is secured in the slots provided •
in the tray.
If you are in any doubt, please contact your Sunrise •
Medical authorised dealer.
Fig.13.17
Fig.13.18
Fig.13.19
Fig.13.20
Fig.13.21
Fig.13.22
