Parts in the battery box, (Fig.13.22):
Plastic battery box cover for 2 x 12V batteries.•
2 x battery looms with fuse and ring terminals.•
Battery link harness with red and grey connectors.•
Accessing the Batteries
Locate & loosen the 2 hand wheels at the front of the •
power base, (Fig.13.23).
Pull the spring loaded catch, (Fig.13.24).•
Carefully tilt the seat back, (Fig.13.25). •
Support the seat with the seat stay, (Fig.13.25). •
Ensure the plastic cap, clips over the end to secure •
the seat.
The Battery Cover is secured by 6 plastic rivets. Use a •
at blade screw driver to lift out the rivets.
Lift the Battery Cover clear. •
Disconnect the GREY plug on the front battery. •
Lift the front battery out using the lifting straps pro-•
vided.
Disconnect the GREY plug on the rear battery, •
(Fig.13.26).
Lift the rear battery out using the lifting straps pro-•
vided, (Fig.13.27).
Peel back 1 cover and using 2 x 13.0mm spanners, •
undo & remove the terminal bolt. Repeat for the other
terminal/battery, (Fig.13.28).
On retting, • the battery terminals must be covered
after connection with the caps provided on the cable,
(Fig.13.29).

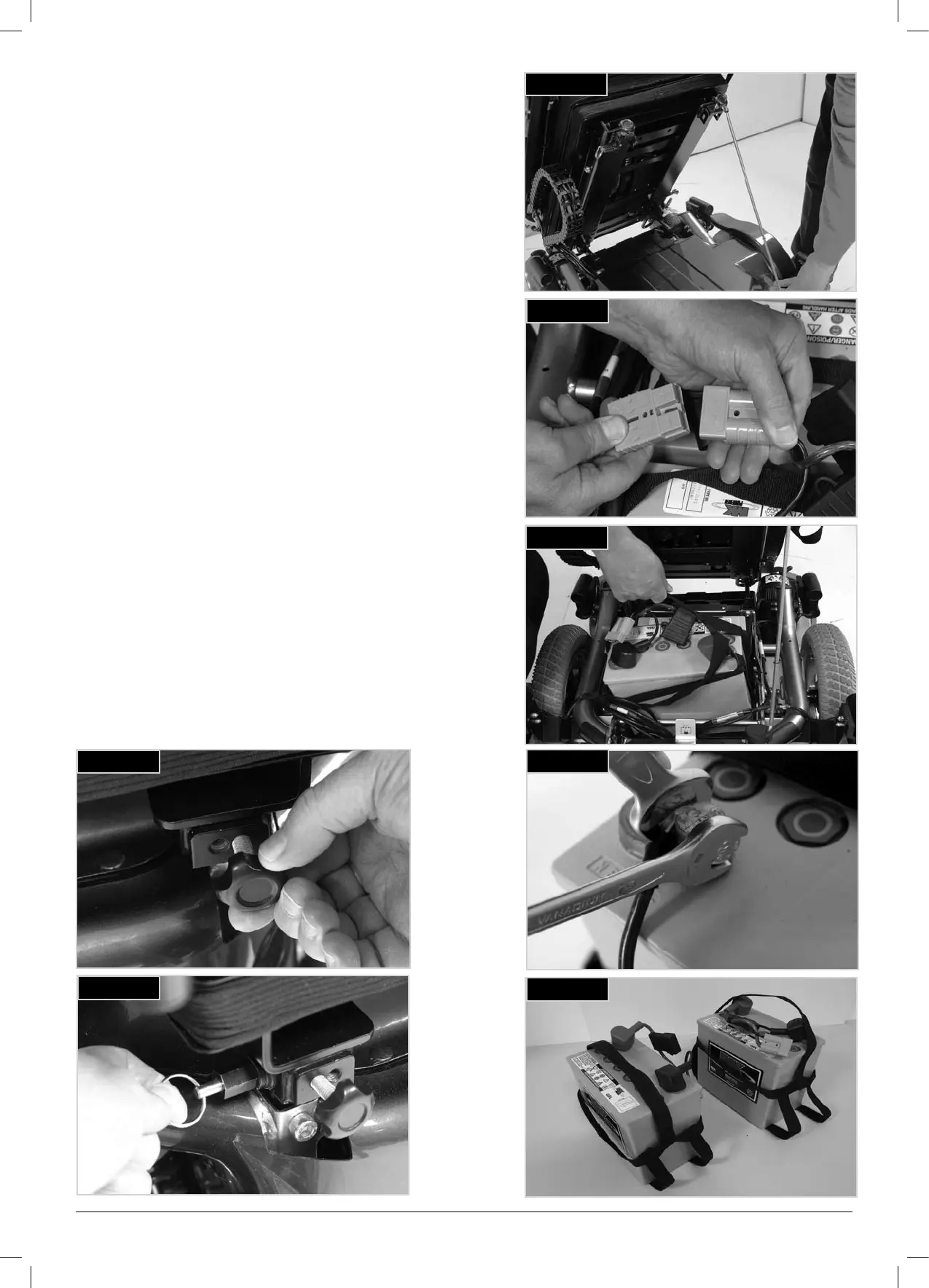

Fig.13.23
Fig.13.24
Fig.13.25
Fig.13.26
Fig.13.27
Fig.13.28
Fig.13.29
