QuickJack™ Portable Car Jack 40 P/N 5900263 — Rev. B6 —September 2023

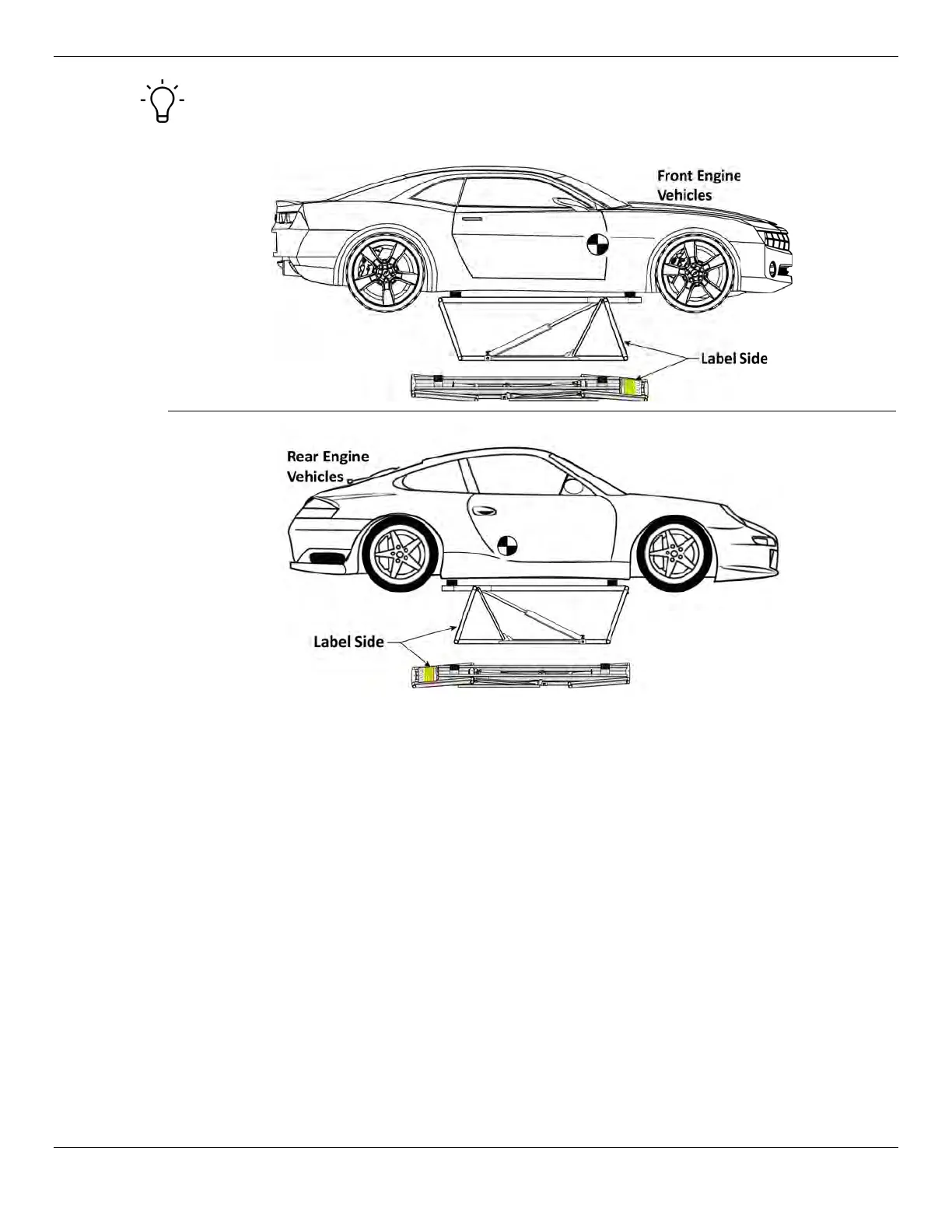

Tip Position the QuickJack Frames with the Label Side facing the heavy side of
the vehicle. Refer to the figure below.
Raising the QuickJack Frames
QuickJack Frames have two locking positions. When you raise the QuickJack Frames, always engage
both Frames on a Locking position of the same height or lower them back down to the ground.
⚠ WARNING Do not raise a Vehicle unless the QuickJack Frames are properly positioned under
the Vehicle, the Frames are as close to parallel as possible, all personnel are a
sufficient distance away from the Vehicle, both Lock Bars are on the outside, there
is open space on all sides and above the Vehicle, and the operator is paying
attention. The operator must maintain visual contact with the Vehicle
the surrounding area, and both Frames while raising or lowering the
QuickJack.
To raise a Vehicle:
1. Position the Lift Blocks, Pinch-Weld Blocks, or SUV and Light Truck Adapters in the Receiver
Trays.
Note: You can stack one Medium Lift Block on one Tall Lift Block, but not more than that.
Do not stack Lift Blocks on Pinch-Weld Blocks or SUV and Light Truck Adapters.
