QuickJack™ Portable Car Jack 8 P/N 5900263 — Rev. B6 —September 2023
Components

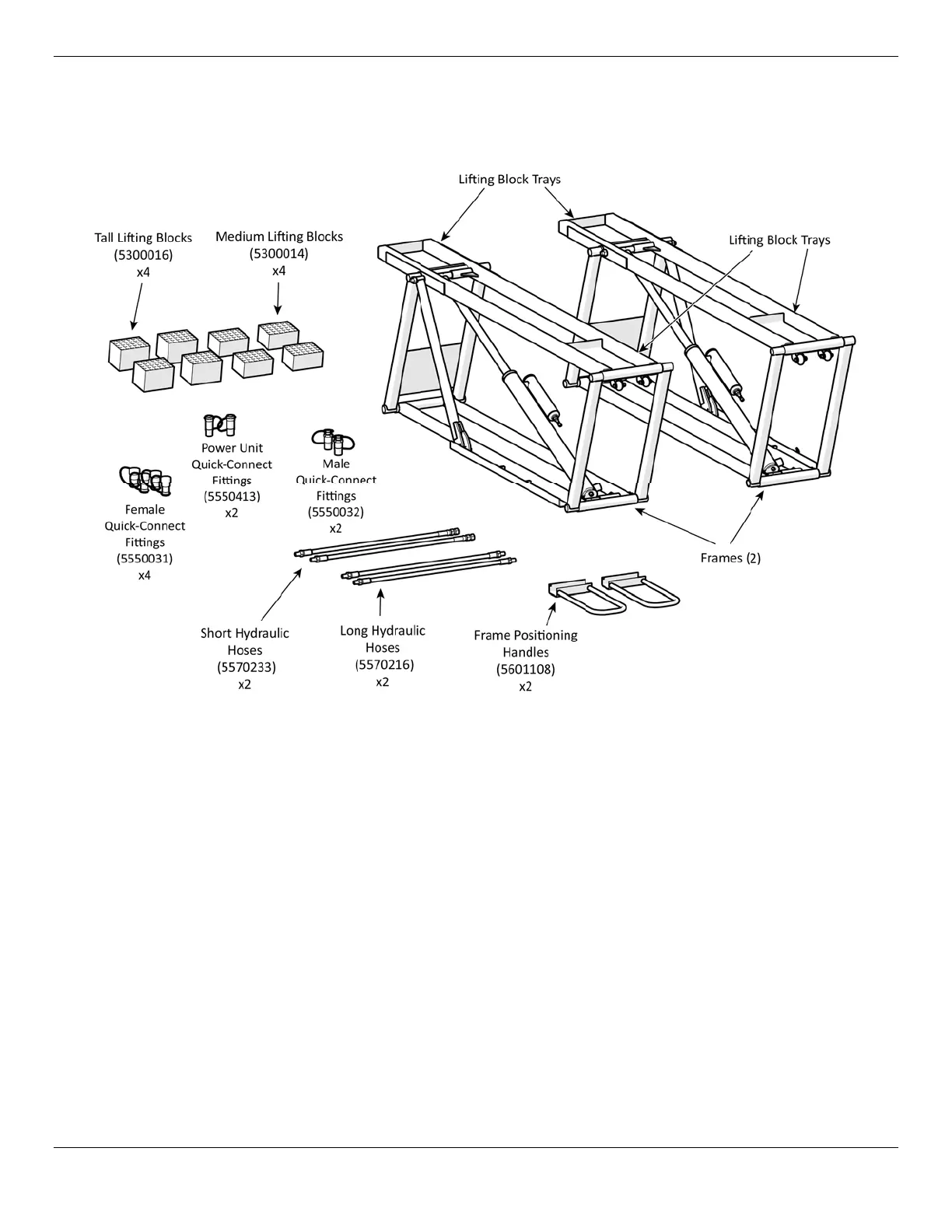

The following image shows the main components of a QuickJack.
Not all components shown. Not drawn to scale.
QuickJack components include:
• Two QuickJack Frames. The Frames, working together, raise and lower Vehicles.
The two Frames are not interchangeable. The Lock Bars, described below, must be on the
outside when you orient the Frames.
• Eight rubber Lift Blocks. Four are medium height (2 inches) and four are tall (3 inches high).
The Lift Blocks can be placed in different locations in the Receiver Trays, allowing you to contact
the factory-recommended Lifting Points on a wide variety of Vehicles. Always use Lift Blocks; do
not raise a Vehicle on just the QuickJack Frames.
Note: You can stack one medium and one tall block together, but not more than that.
If you have a Vehicle with a unibody/pinch-weld frame, QuickJack recommends ordering optional
Pinch-Weld Blocks, available on the QuickJack website. If you have an SUV or truck, there
is an SUV and Light Truck Adapter available for these Vehicles, also on the QuickJack website.
If you are going to be raising Vehicles with very low ground clearance, low-profile Lift Blocks are
available as Accessories.
