Wiring Diagrams
Always follow the 208-230 VAC electrical rules for the country in which you are using the unit.

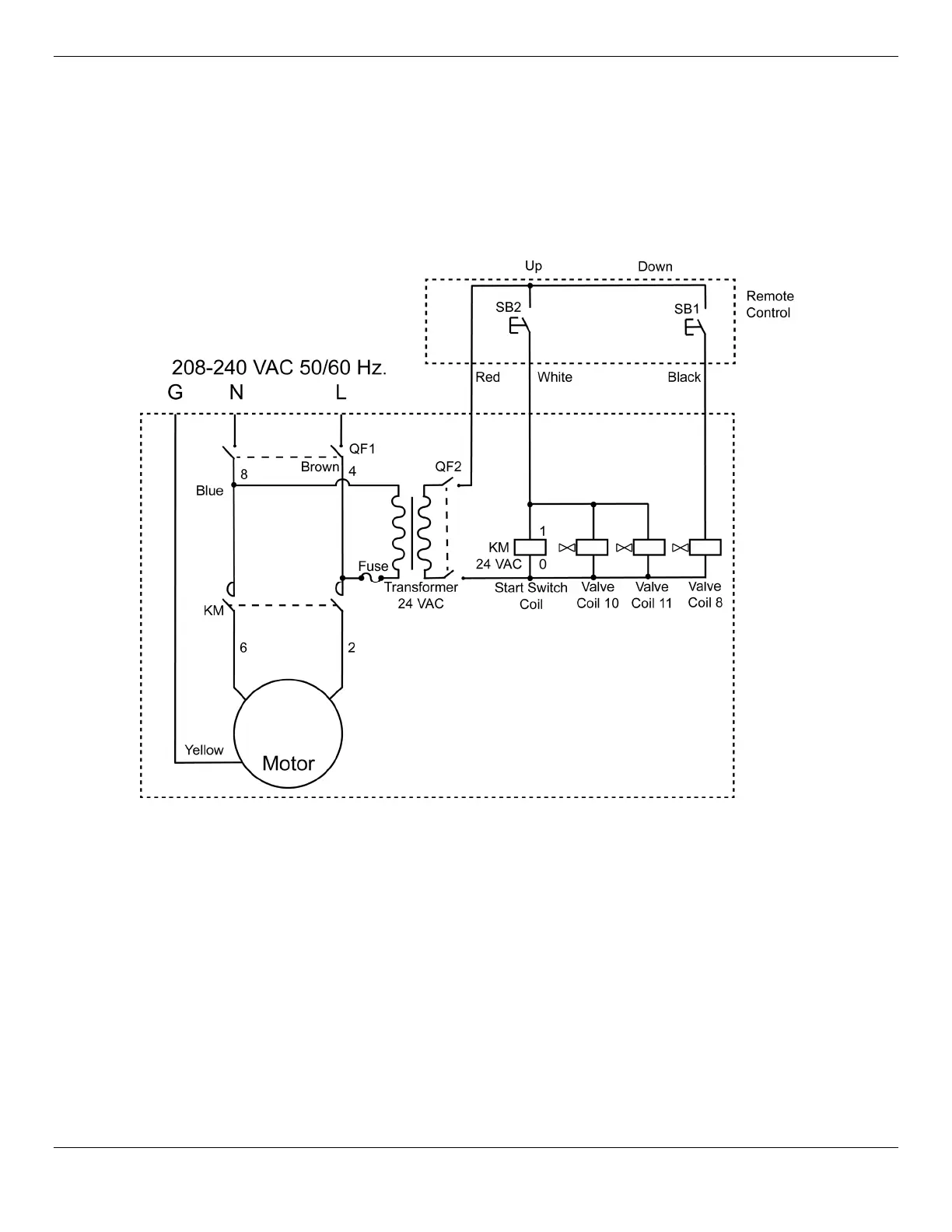

208 - 240 VAC Wiring Diagram (CE-approved)
CE/UKCA approved Power Units:
• 5585360
• 5585760
• 5585739
