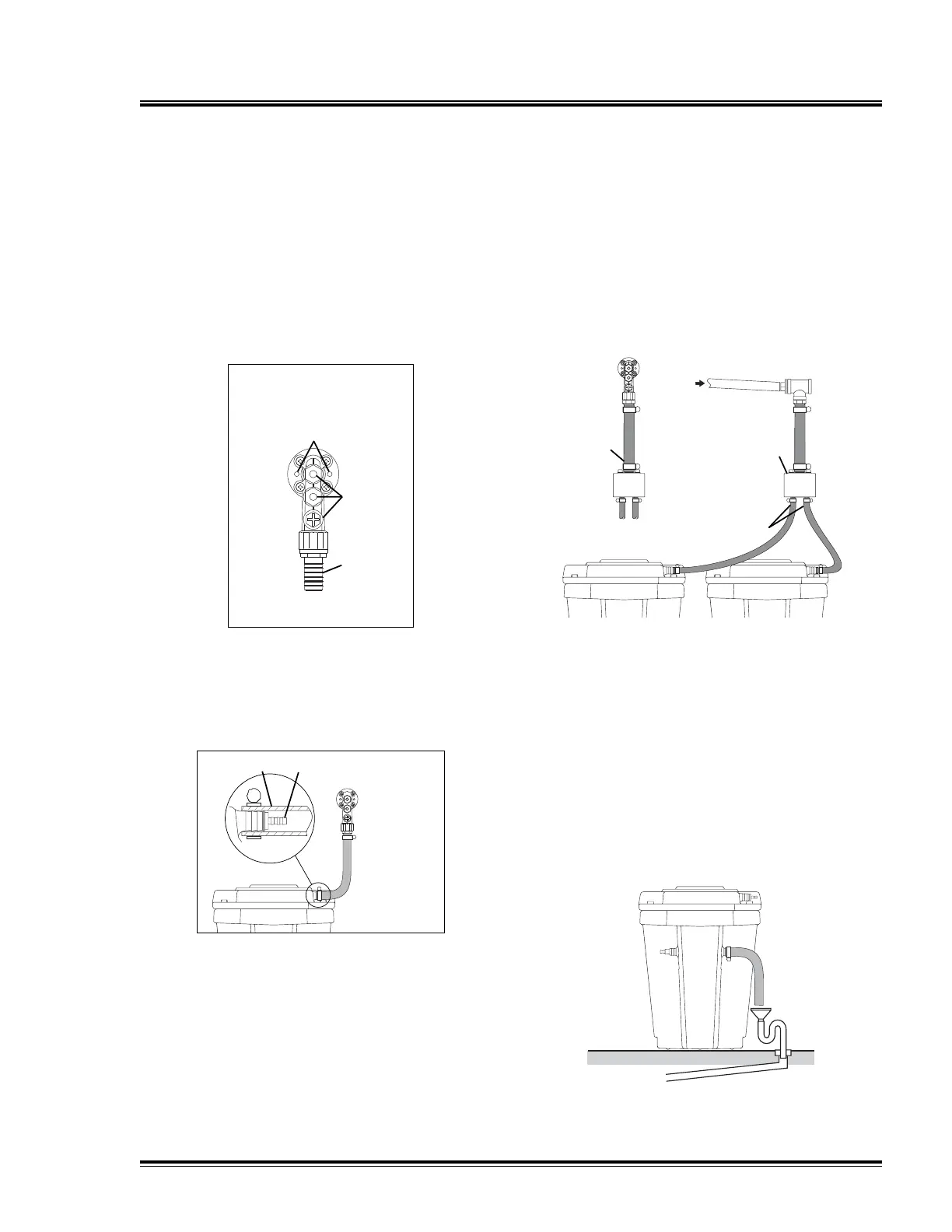

Section III - QCS450
If there are more than 4 feed points, a 1"
diameter header must be installed above
the QCS450 inlet (height 24" above floor)
with a slight slope down to the QCS450
unit (minimum slope 1°).
Up to 4 QCS450 units can be joined using
a flow splitter.
The condensate must be fed in from the
top.
1”
(25mm)
1/2”
(13mm)
FLOW SPLITTER
Wastewater Drain
The wastewater drain must be lower than
the water outlet of the separator.
Install a trap against odors.
Connecting the wastewater hose:
Use the hose supplied and attach it to the
QCS450 water outlet.
Lay the hose with a continuous slope down
to the wastewater drain (trap).
Installation Options
Up to 3 condensate lines can be connected
directly to the QCS450 unit using the
multiple inlet adapter.
The inlet adapter can be mounted on the
wall. It has three 1/2" hose connectors for
condensate inflow and a 1" hose connector
for connecting to the separator.
1.0”
(25mm)
0.26”
(6.5mm)
MOUNTING
HOLES
0.5”
(13mm)
INLET ADAPTER
The 1/2" connector on the QCS450 must
not be removed.
The 1" hose can be pulled over the 1/2"
connector.
Quincy Compressor-QCS High Efficiency Emulsion Separators 13
