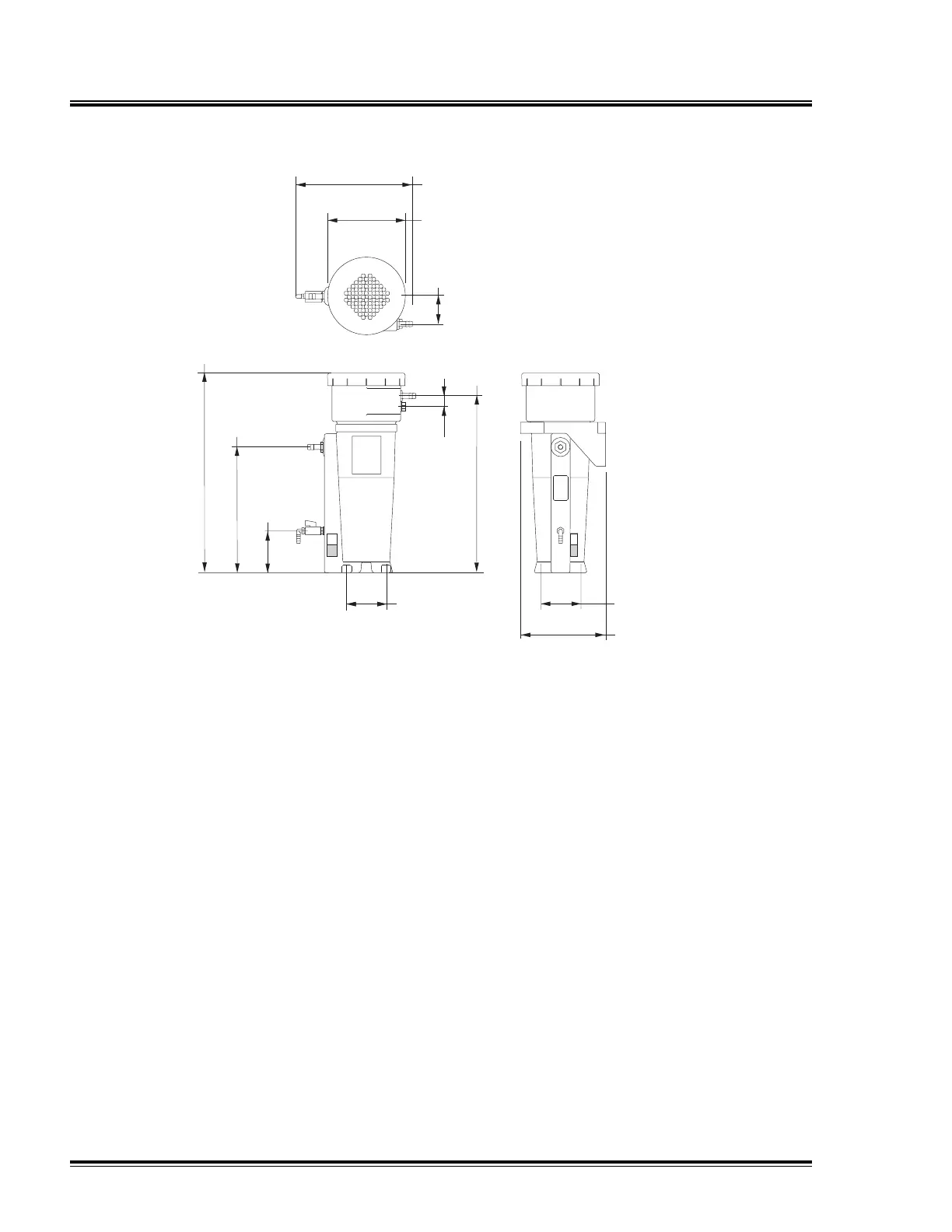

Appendix A - Dimensional Drawings & Technical Data
QCS100
20.8
(528)
13.0
(330)
4.3
(110)
3.9 (100)
18.3
(464)
1.2
(31)
8.7 (222)
3.9 (100)
12.2 (310)
7.9 (200)
2.75
(70)
DIMENSIONS ARE IN INCHES (MILLIMETERS).
