QCS900/1600 Function
The oil-contaminated condensate can be
fed under pressure to the QCS unit (1).
The pressure is reduced in the pressure
relief chamber (2).
The condensate flows steadily into the
subjacent filter stage without turbulence
and runs through the two-stage filter.
The filter unit (3) comprises a prefilter (4)
and a main filter (5) for binding any residual
oil constituents. The water flows out of the
QCS oil/water separator through the water
outlet (8) and can be discharged directly
into the sewer system.
A sampling valve (5) is provided so that the
wastewater quality can be checked at any
time.

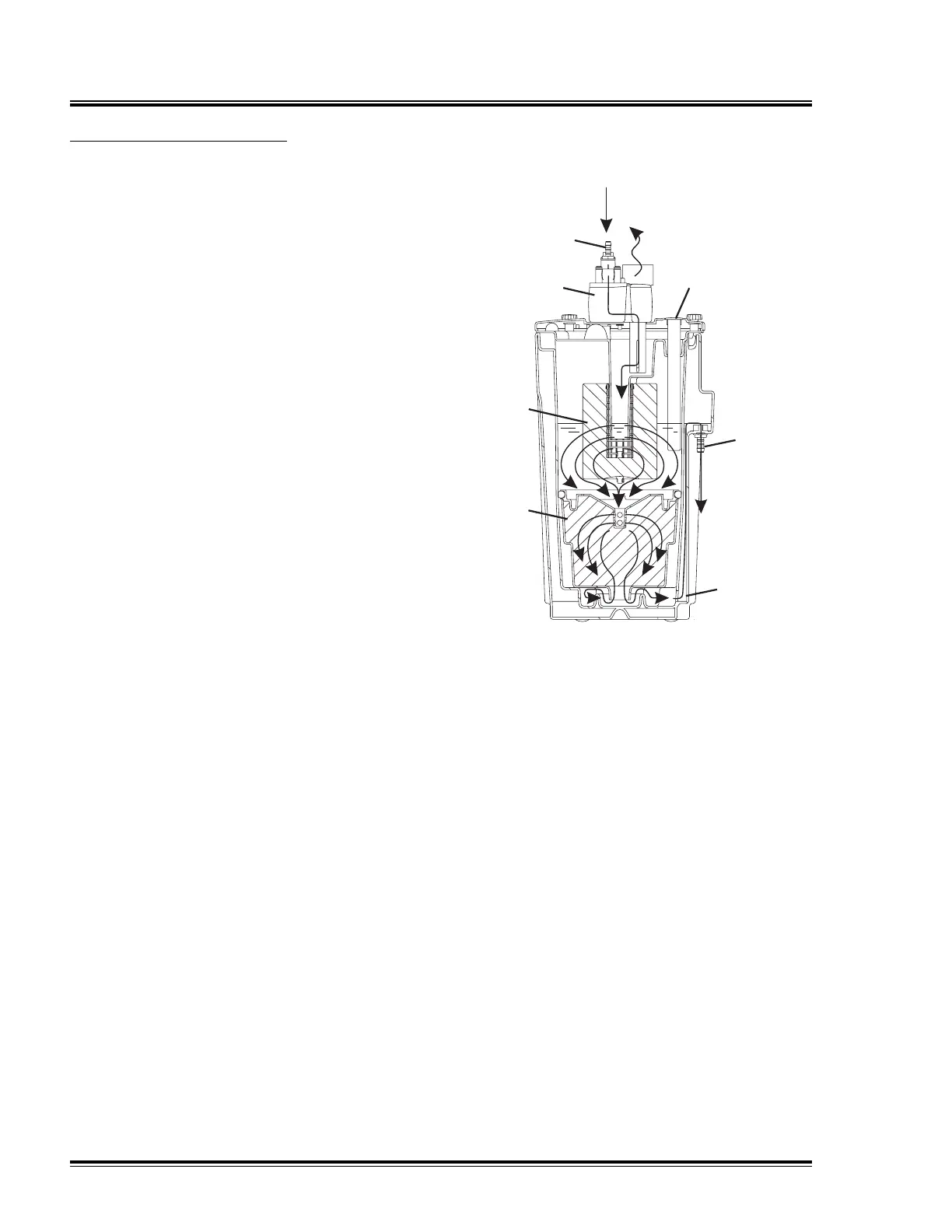

1 CONDENSATE INLET
2 PRESSURE RELIEF CHAMBER
3 LEVEL INDICATOR
4 PREFILTER
5 MAIN FILTER
6 RISER DUCT
7 SAMPLING VALVE (NOT SHOWN)
8 WATER OUTLET
