Quincy Compressor QCS900 - QCS100 Components

Section II - QCS100
QCS100 Components
1
2
3
4
5
6
11
9
10
12
5
7
8
13

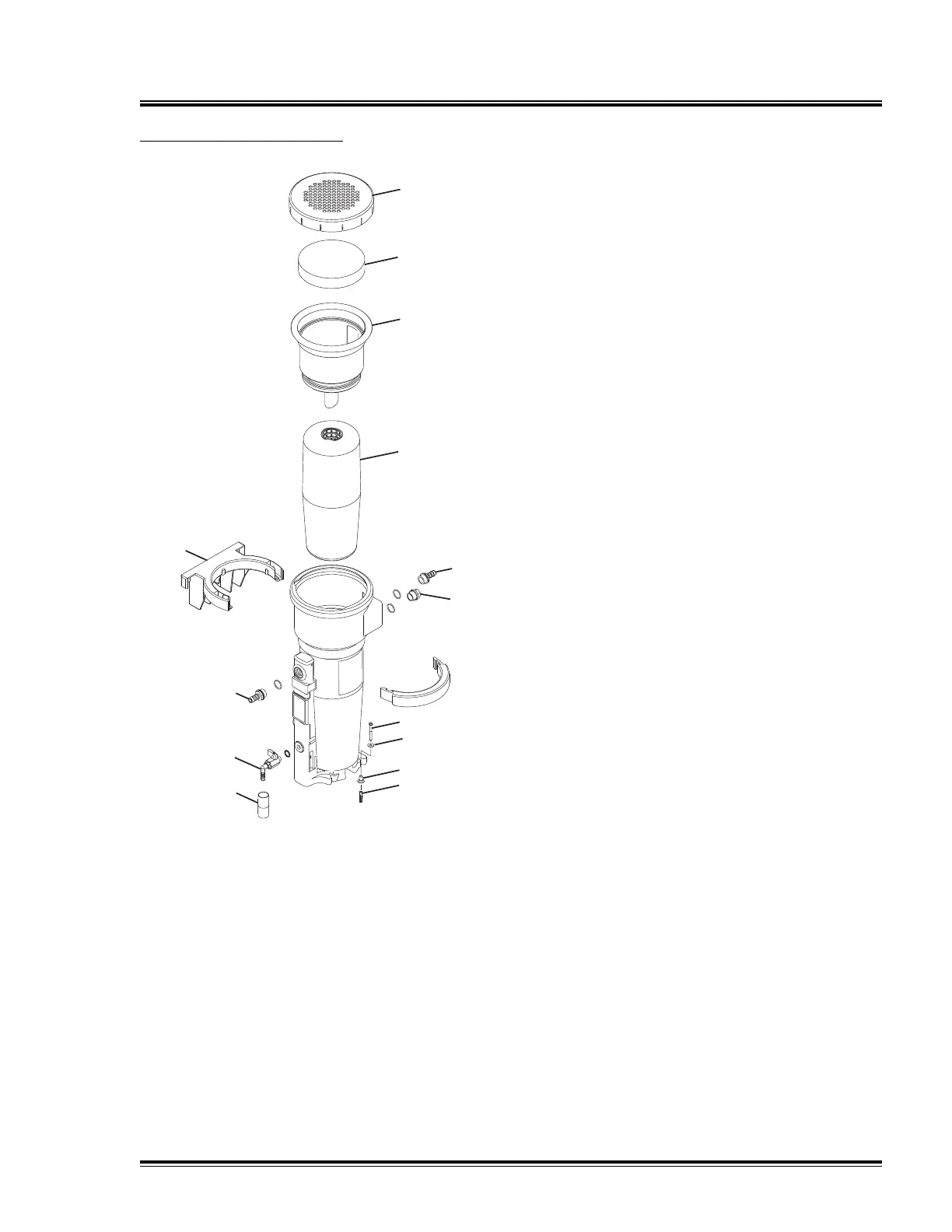

1 Cap
2 filtEr mat
3 inlEt pipE
4 filtEr
5 HoSE ConnECtor (g ½, di = 10 mm)
6 SCrEw plug (g ½)
7 SamplE valvE
8 tESt tuBE
9 waSHEr
10 tuBular rivEt (C1-8x15)
11 wood SCrEw (5x50)
12 dowEl
13 wall mounting BraCKEt
Quincy Compressor-QCS High Efficiency Emulsion Separators 5
