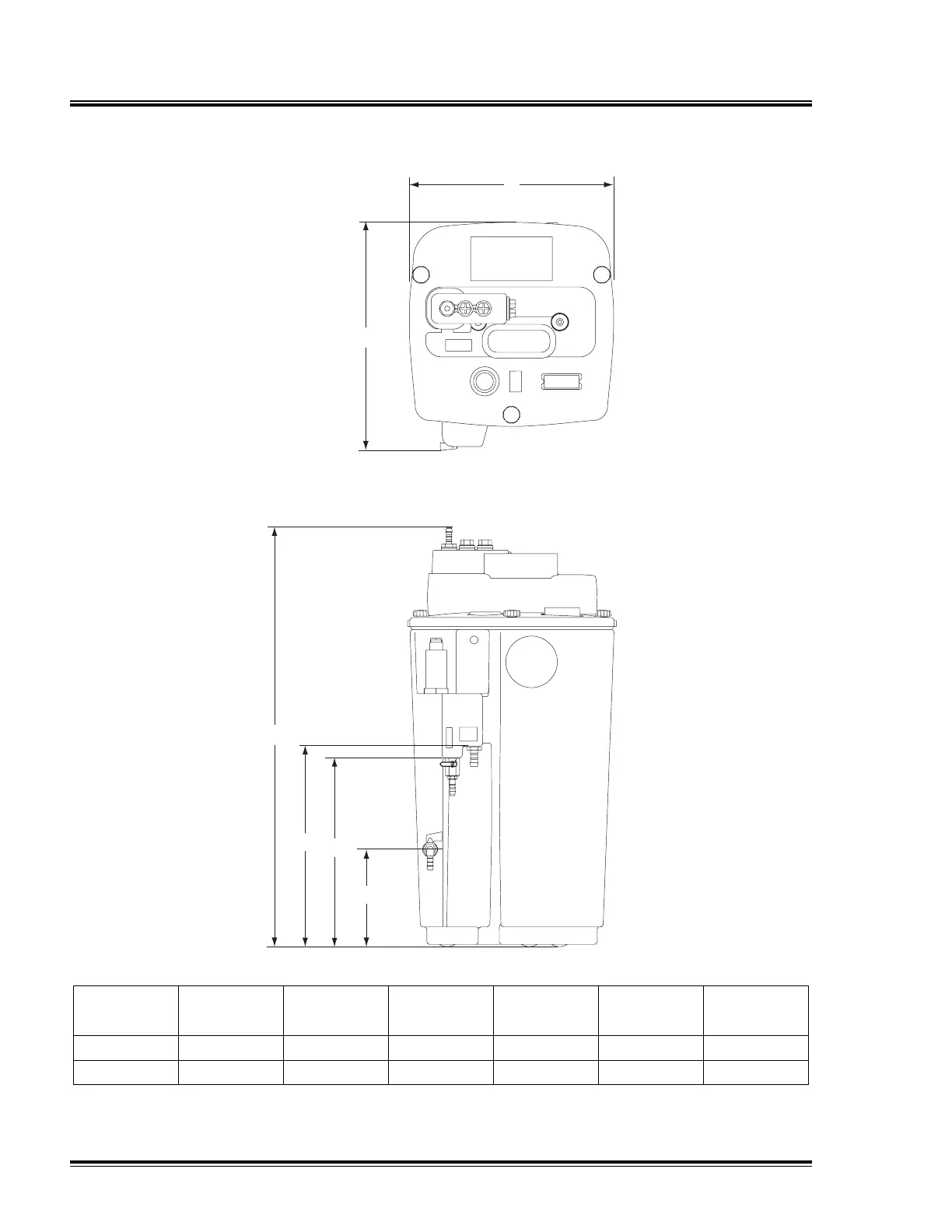

Appendix A - Dimensional Drawings & Technical Data
QCS900/QCS1600
F
E
D
A
B
C
A
Inch (mm)
B
Inch (mm)
c
Inch (mm)
D
Inch (mm)
E
Inch (mm)
F
Inch (mm)
QcS900
44.1 (1120) 20.9 (531) 22.5 (572) 21.7 (551) 19.9 (505) 10.6 (269)
QcS1600
47.3 (1201) 25.95 (659) 27.7 (704) 22.8 (579) 21.1 (536) 7.9 (201)
30 Quincy Compressor-QCS High Efficiency Emulsion Separators
