PLEGADO
CONTROL UNIT
I T A
E N G
E S P
P O R
FOLDING

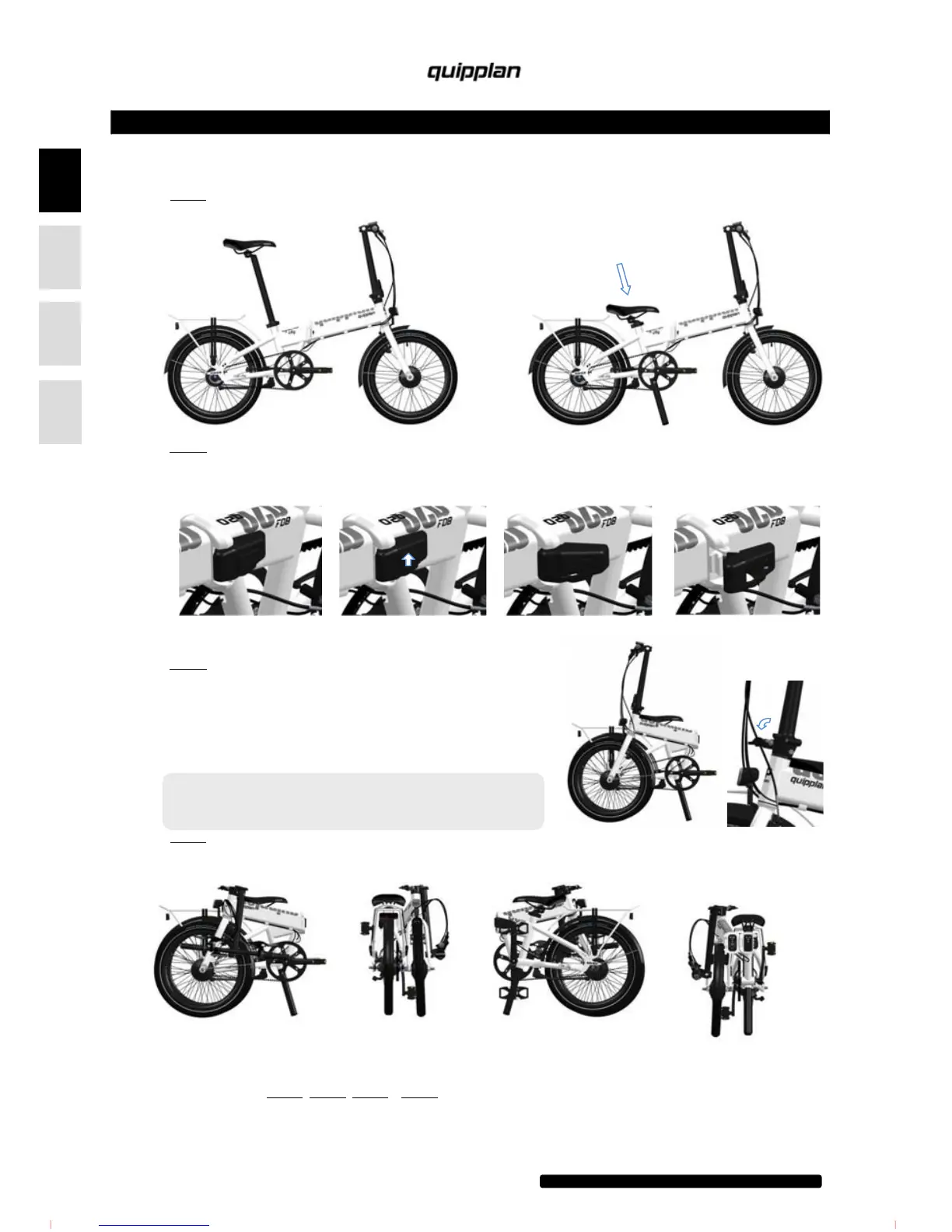

1. FOLDING
1.1. Step 1
: open the seatpost lock, introduce it completely in the frame and close the lock again.
1.2. Step 2
: open the frame folding mechanism lock by lifting the internal plastic part. This part secures the lock and it
wŽƌŬƐĂƐĂŶŽŶŽƉĞŶŝŶŐƐĂĨĞƚLJŵĞĐŚĂŶŝƐŵ/ĨŝƚŝƐŶŽƚĐŽŵƉůĞƚĞůLJůŝĨƚƚŚĞůŽĐŬǁŽŶƚďĞŽƉĞŶĞĚ To lift the piece,
put the fingers on the piece and push.
Keeping the interior piece lifted, pull from the principal aluminum lever outwards until the lock is opened.
1.3. Step 3: Fold the front part of the bicycle to the right until both
wheels are parallel. The bicycle stays by the base of the
seatpost.
Turn the crank until the pedals are in an appropriate position to
be folded: the left pedal in upper and the right one in down
position. Fold the pedals.
Note: it is recommended to block the lock once the frame is
folded, so all the pieces are static in their position.
1.4. Step 4
: Open the safety lock of the folding handlebar system and fold the handlebar downwards.
2. UNFOLDING
Proceed in inverse order: Step 4
, Step 3, Step 2 y Step 1.
