Assembly Instruction Sheet #IS-NY8317AC
For Style NY8317AC

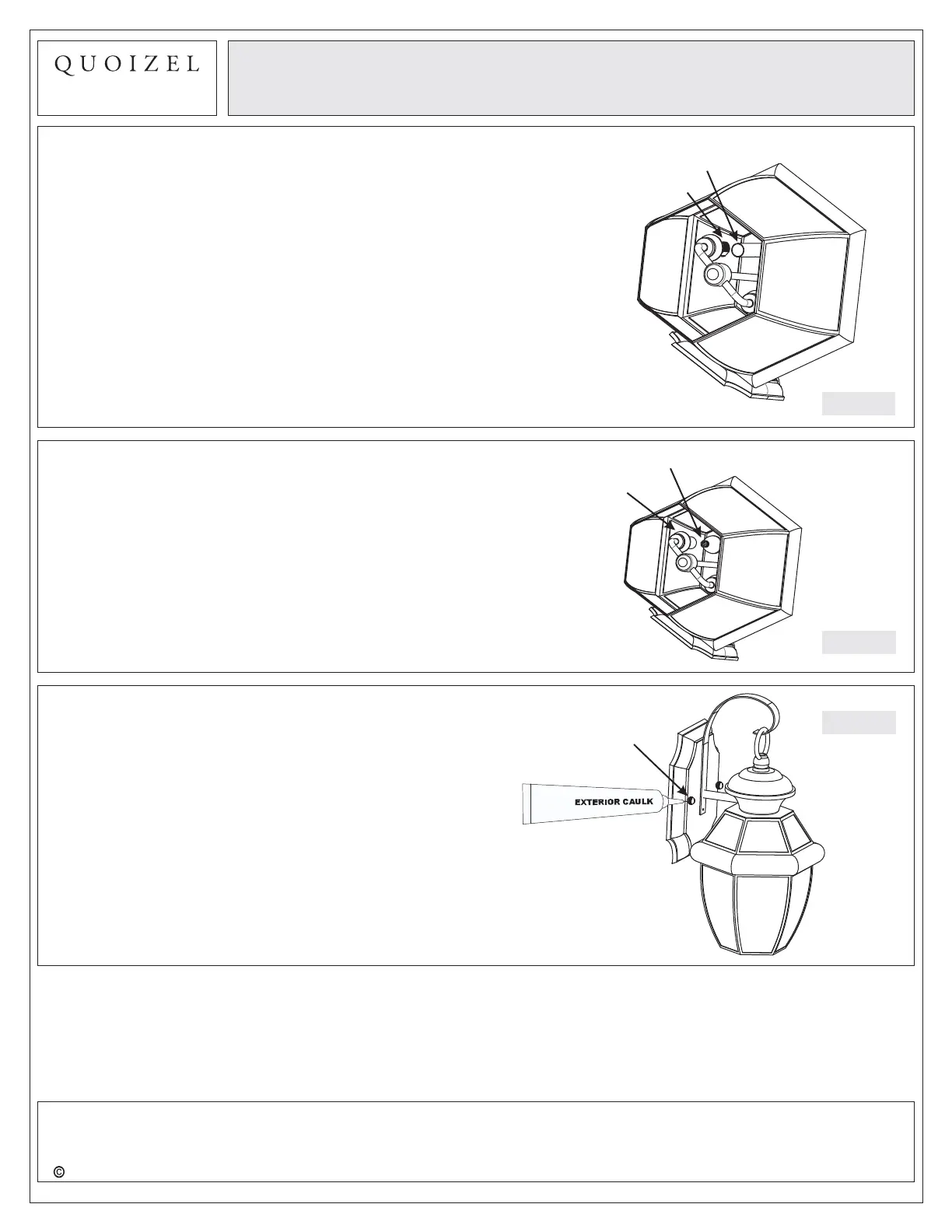

STEP 7 Apply Silicone Sealer to Mounting
Balls
-
A. To prevent moisture from entering the wire
compartment, apply a small amount of silicone sealer
(not included) to the threaded side of the mounting
balls (E) and then install them onto the mounting
screws (B). Wipe off excess caulk.
STEP 6 - Install Bulb
A. This fixture uses standard bulb with a candelabra screw
base. Maximum 60 watts.
B. Place the bulb from the bottom of the glass frame. Insert
bulb and screw snugly into place.
Figure 7
Figure 8
Mounting Ball
Socket
Bulb
Figure 6
STEP 5 Attach Candle Cover to Socket
Assembly
-
A. Place the Candle Cover (G) over the Socket properly.
Socket
Candle
Cover
RevisedDate: 2016-09-13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
