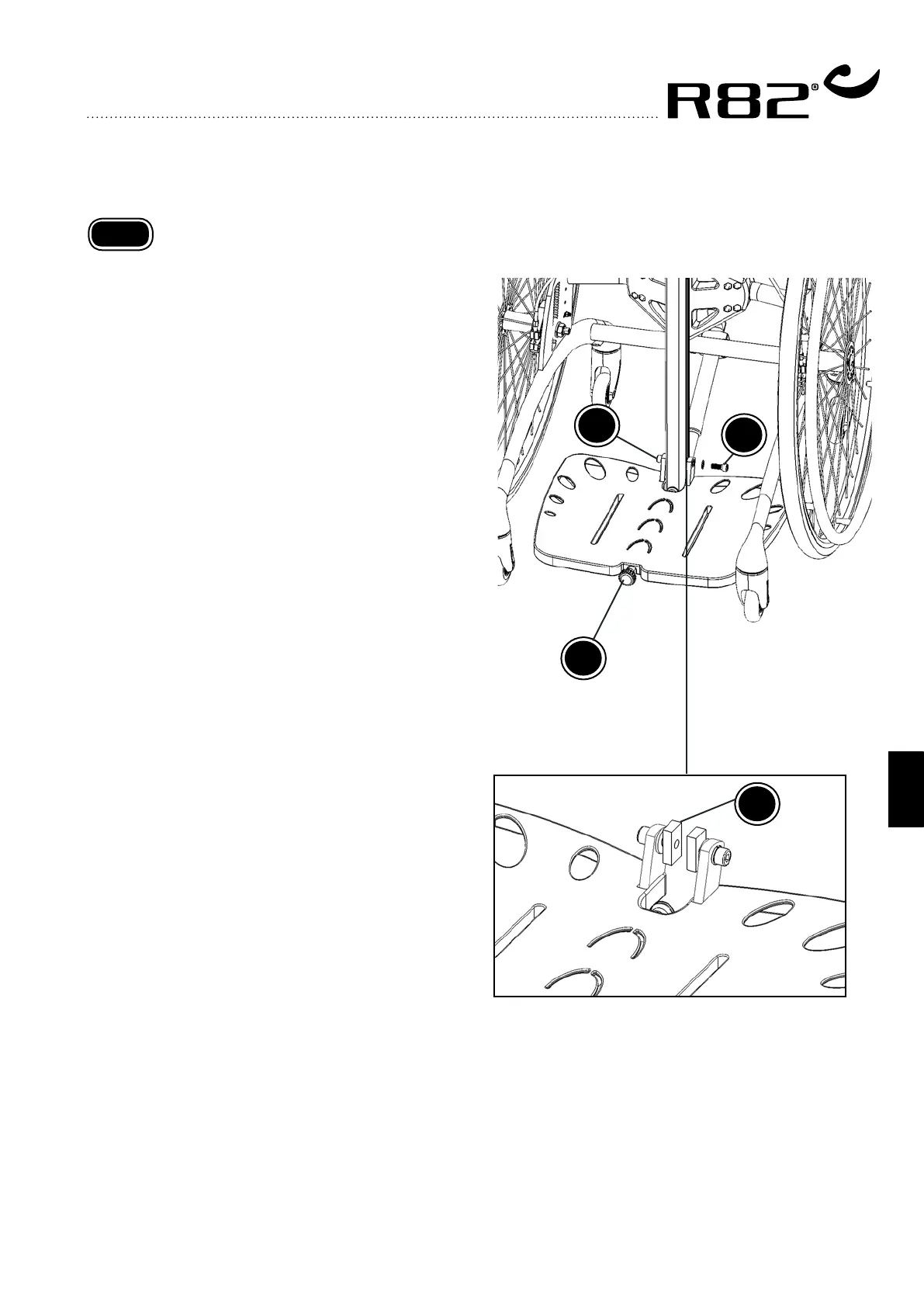

MOUNTING AND
ADJUSTMENT OF
THE FOOT PLATE
Follow the description below to mount the foot
plate correctly. We recommend to dismount
the square plates from the foot plate before
mounting.
Tip!
In general we recommend to mount all acces-
sories from the top of the centre bar which is why
the lower accessories must be mounted first.
* The square plates (A) from the foot plate is
mounted in the slots on the centre bar. Let
them slide all the way down.
* Mount the foot plate using the enclosed bolt
(B) and the 6 mm Allen key.
Turn the handle (C) to angle adjust the foot
plate.
Loosen the bolts (B) in both sides of the centre
bar and height adjust the foot plate. Fasten the
bolts in the desired position.
