HIP SUPPORTS

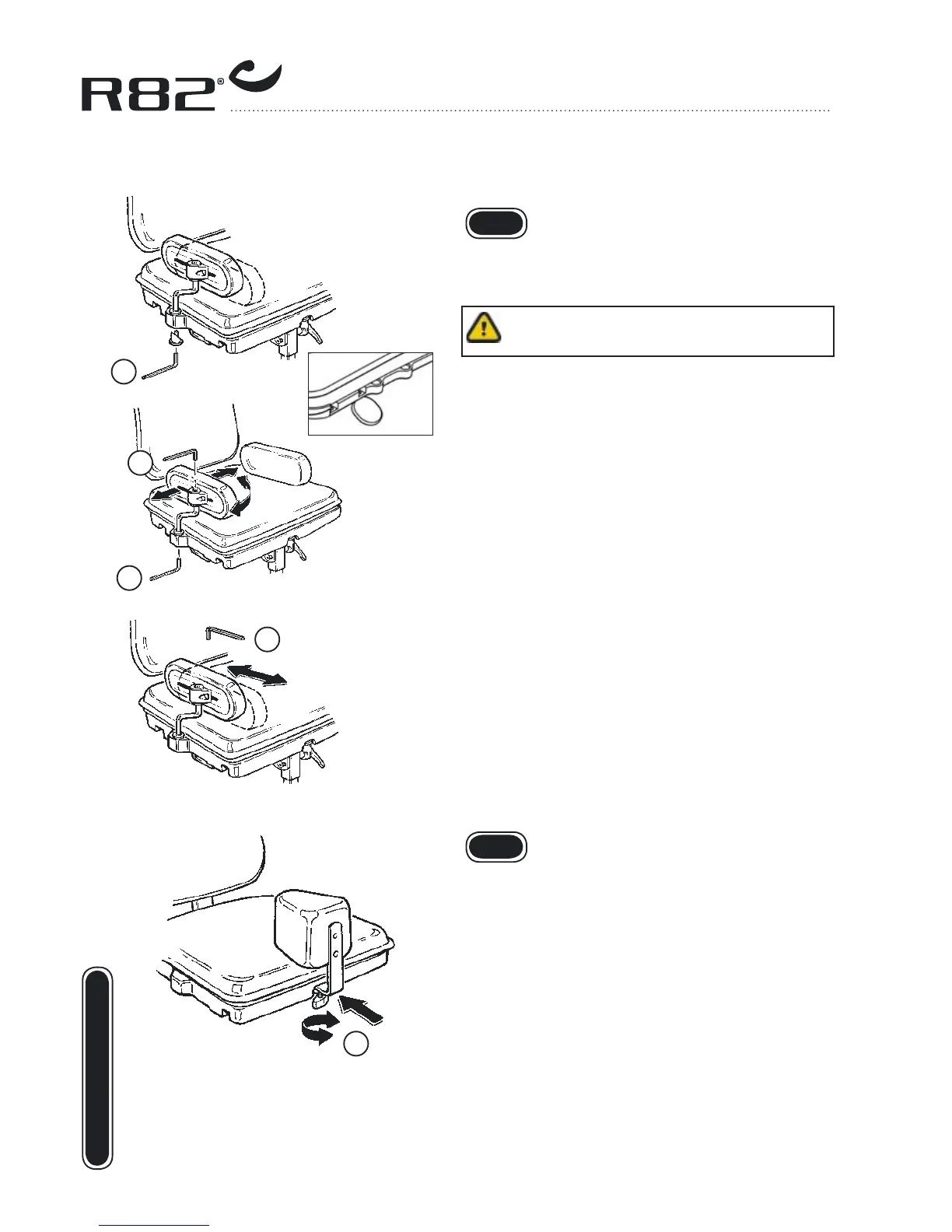

Use the enclosed 5 mm Allen key to mount the
hip supports in the seat (A).
Wombat size 3 offers two different fitting
options for hip supports.
Loosen the two screws (B) and (C) to adjust the
hip supports all round. Fasten with the enclosed
5 mm Allen key.
Use the enclosed 4 mm Allen key to loosen the
screws (D) and adjust the hip support in depth.
Adjust the depth in the slots and fasten in the
wanted position.
GB
POMMEL
Mount the pommel in front of the seat.
Adjust the depth by loosen the fingerscrew (A)
below the seat.
GB
B
C
D
A
A
