WOMBAT READY TO
USE
Wombat Basic:

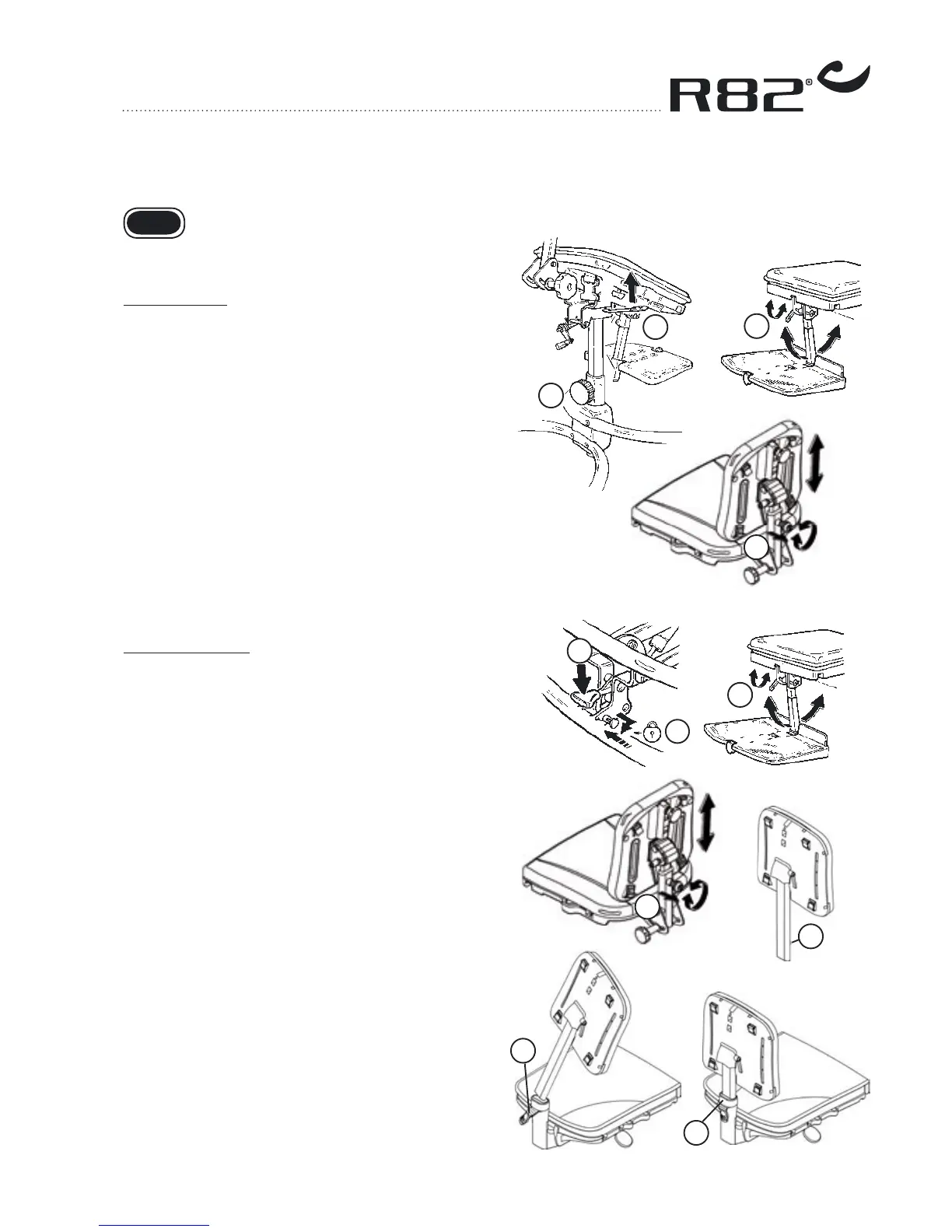

When you unpack your Wombat, you will find the
back of the chair packed separately.
Begin by removing the frame from the box. Loosen
handle (A) on the central bar. Release handle (B)
under the right-hand side of the seat so the seat
can be raised.
Pull out the footrest so that it is at a right angle to the
bar. Loosen the tightening handle (C) for the footrest
bar under the seat and adjust the footrest.
The back support is fitted on to the seat by turning the
knob clockwise and pulling out the knob (D) behind
the back support bar and attaching the back there.
Wombat Upgrade
:
When you unpack your Wombat, you will find the
back of the chair packed separately.
Begin by removing the frame from the box. Raise
the seat unit by placing your foot on the pedal (E).
Remember first to loosen the safety lock (F) to the
right of the pedal.
Pull out the footrest so that it is at a right angle to the
bar. Loosen the tightening handle (C) for the footrest
bar under the seat and adjust the footrest.
Size 1+2: The back support is fitted on to the seat
by turning the knob clockwise and pulling out the
knob (D) behind the back support bar and attaching
the back there.
Size 3: First remove the security nut (I) to be able to
mount the back on size 3. Pull out the locking lever
(J). Mount the backsupport bar in the fitting and tip
into vertical. Depress the blue ring (K) to push down
the bar in the fitting. Mount the security nut again.
Adjust the height to the desired position. Resecure
the locking lever.
GB
D
A
B
C
I
J
K
F
E
H
G
