2 Installation
Step 2 of 5 – Disconnect throttle pedal sensor
There are two types of throttle pedal: fl oor-mounted or hanging. We’ll explain how to disconnect
the throttle pedal sensor for both types.
A. Floor-mounted throttle pedal B. Hanging throttle pedal
If you need assistance in detaching the throttle pedal sensor connector: see the
additional instructions “Detaching the connector correctly”.

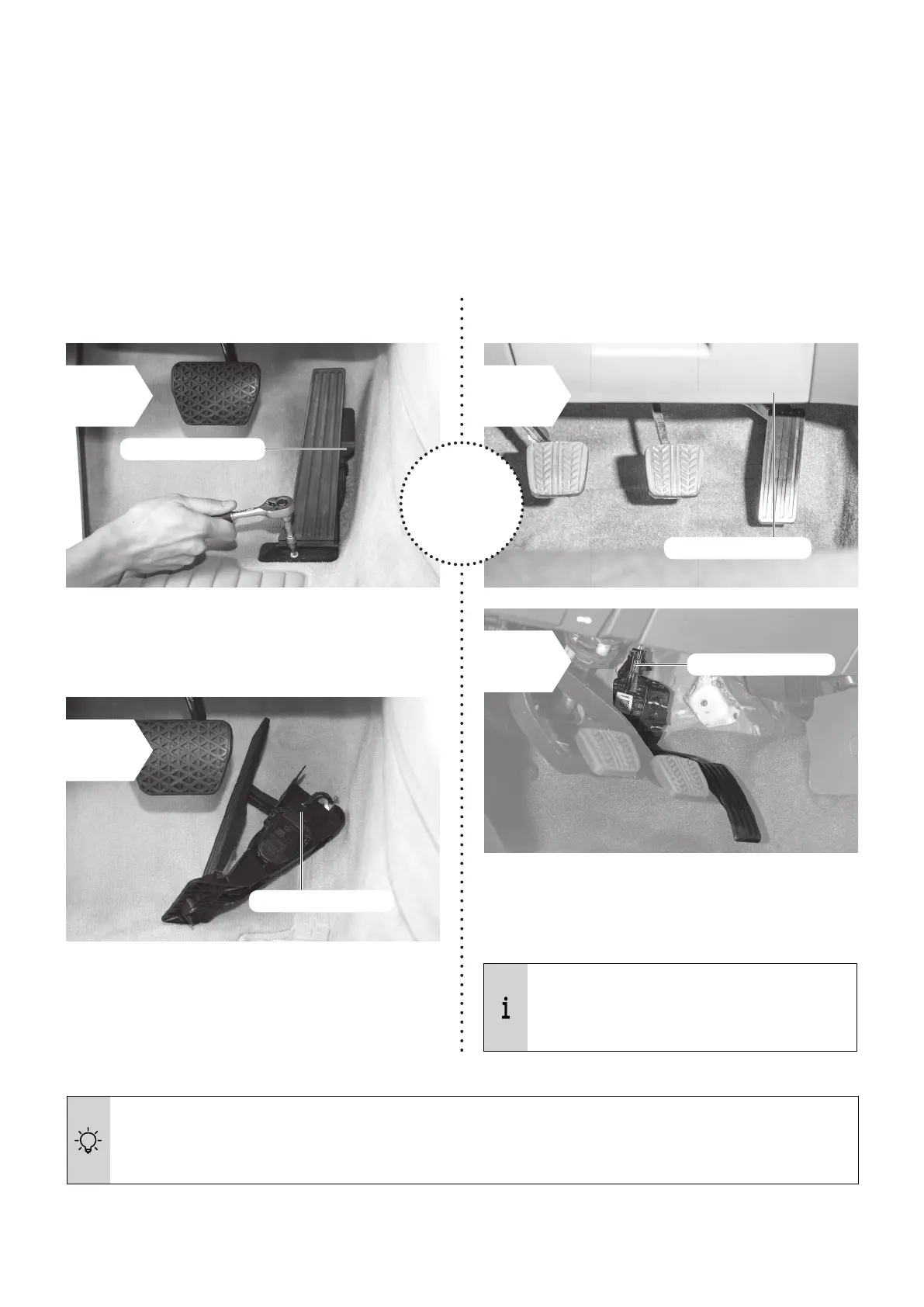

B1
You might have to remove part of the
trim to get to the connector.
OR
Throttle pedal sensor
• The throttle pedal sensor is on the right-
hand side of the throttle pedal. Carefully
pull off the connector of the throttle pedal
sensor.
A2
Throttle pedal sensor
A1
Throttle pedal sensor
Throttle pedal sensor
B2
• Disassemble the throttle pedal with the
appropriate tools.
• The throttle pedal sensor is at the top of
the throttle pedal. Carefully pull off the
connector of the throttle pedal sensor.
