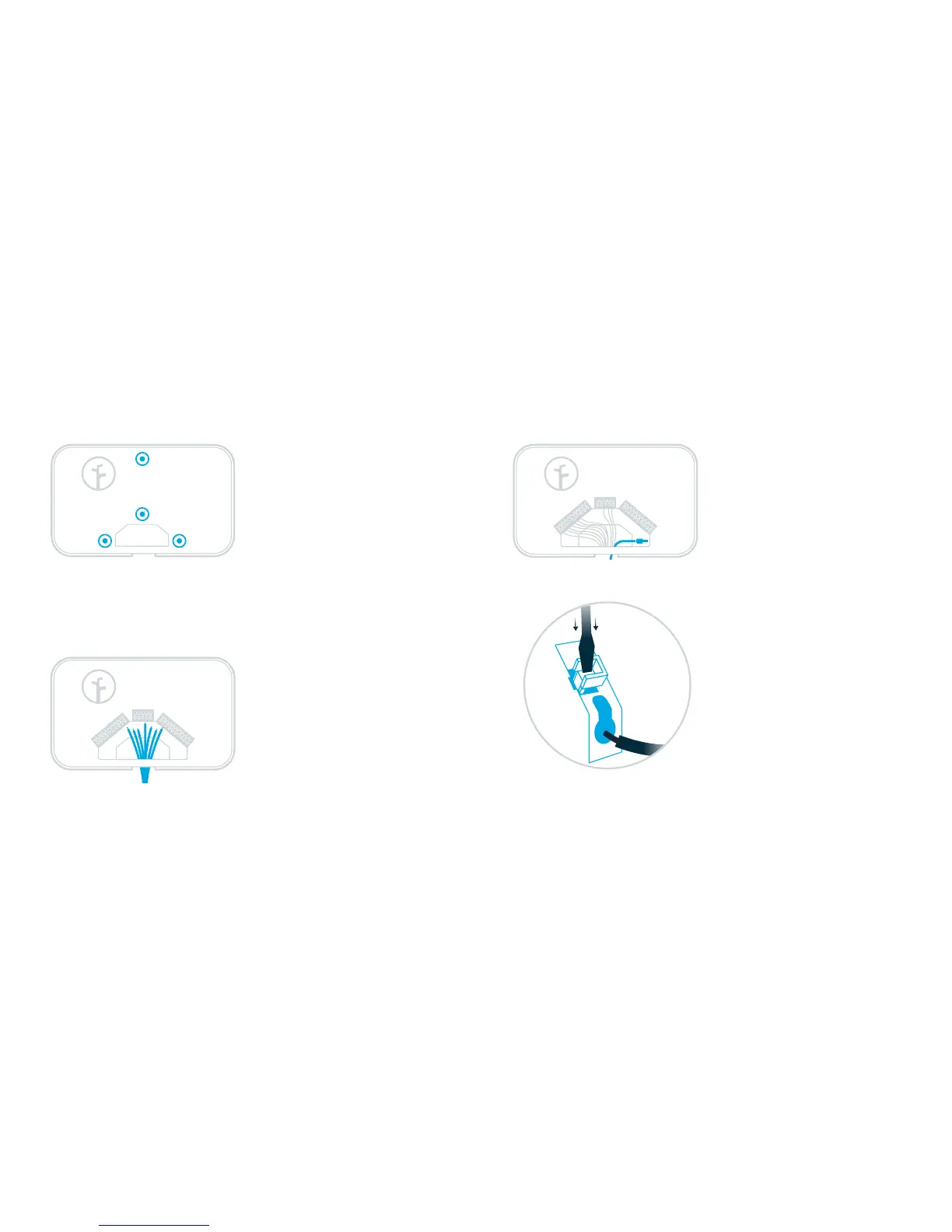

Attach it to the wall.
Remove the controller’s cover
from the base and attach to the
wall using the included screws.
Wall anchors are included for
drywall. Make sure your wiring
and power adapter will reach
the Rachio controller.
Wire it up.
Insert sprinkler wire through
the opening on the base.
Connect the wires to the
corresponding terminal
locations.
Connect the power cord.
Insert the power connector into
the controller’s power port in
the lower right-hand corner of
the wiring bay. Finally, plug the
transformer into a wall outlet.
Note:
To insert or remove a wire,
press down on each terminal
tab with a screwdriver.
