- 9 -
Figure 6
3.4 Display Console
3.4.1 Layout of Display Console

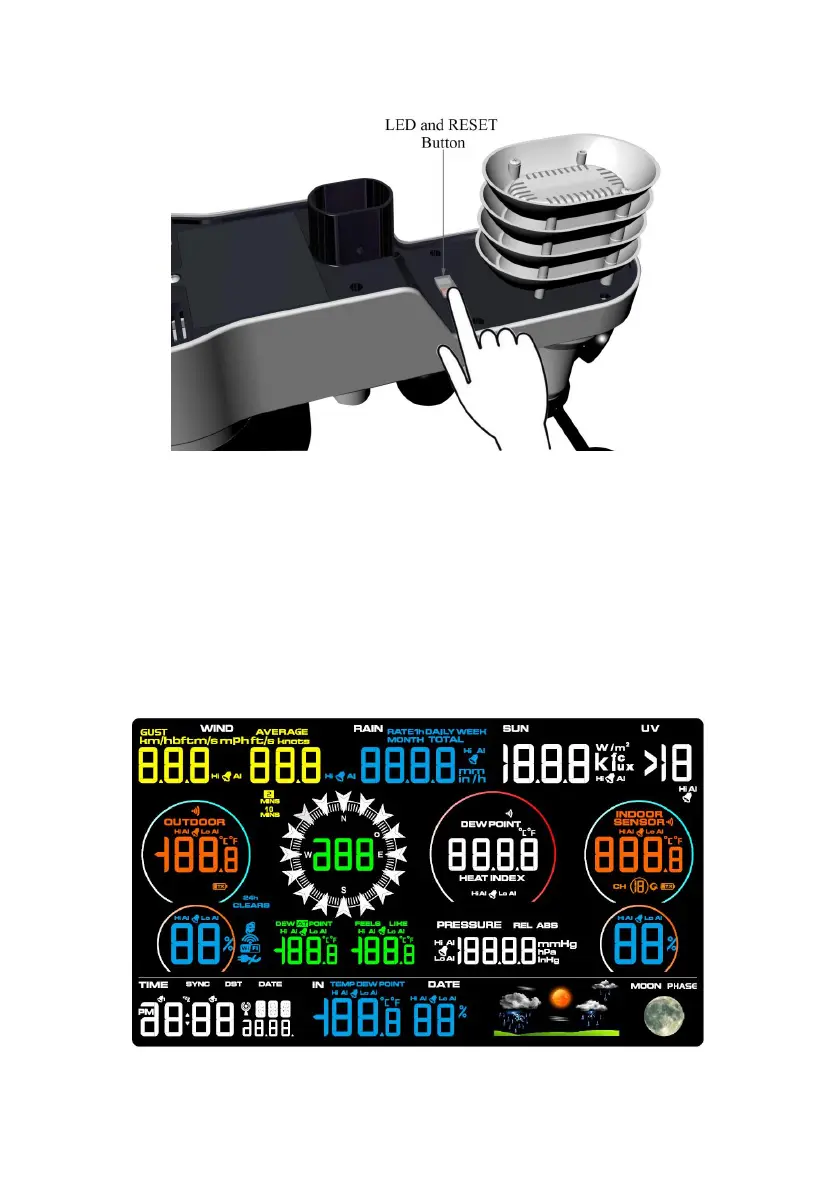

The following illustration shows the full segment LCD display
for feature description purposes only in Figure 7, and will not
appear like this during normal operation.
