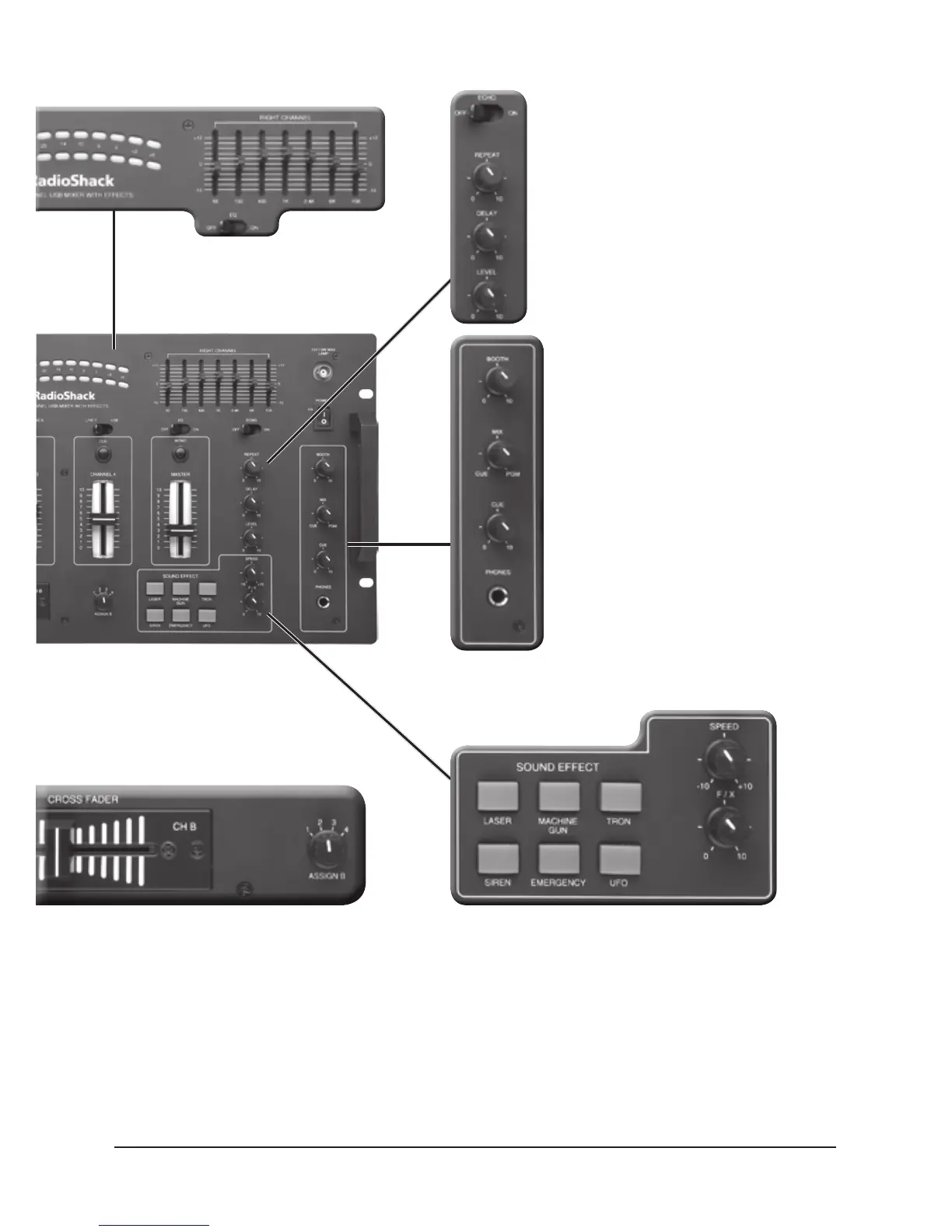

Radio Shack 3200026 - Right Channel EQ; Right Channel EQ Adjustment; Echo Controls; Echo Effect Settings

7
BOOTH
Control the mixer’s booth
volume level.
CUE/MIX/PGM
Balance output volume with
the input being prepared
for mixing when wearing
headphones.
CUE
Adjust the headphones
volume.
PHONES
Echo Controls
Compensate for environmental
conditions or adjust for
personal preference.
LEFT CHANNEL / EQ
Cut or boost channel frequencies
by ± 12dB.
RIGHT CHANNEL / EQ
SOUND EFFECT
SPEED
Control the pitch of the selected effect.
F/X
Control the level of the selected effect.
CROSS FADER
Select an input source for
Channel A and Channel B and
mix the sound output between
the two sources.
LED Meters
