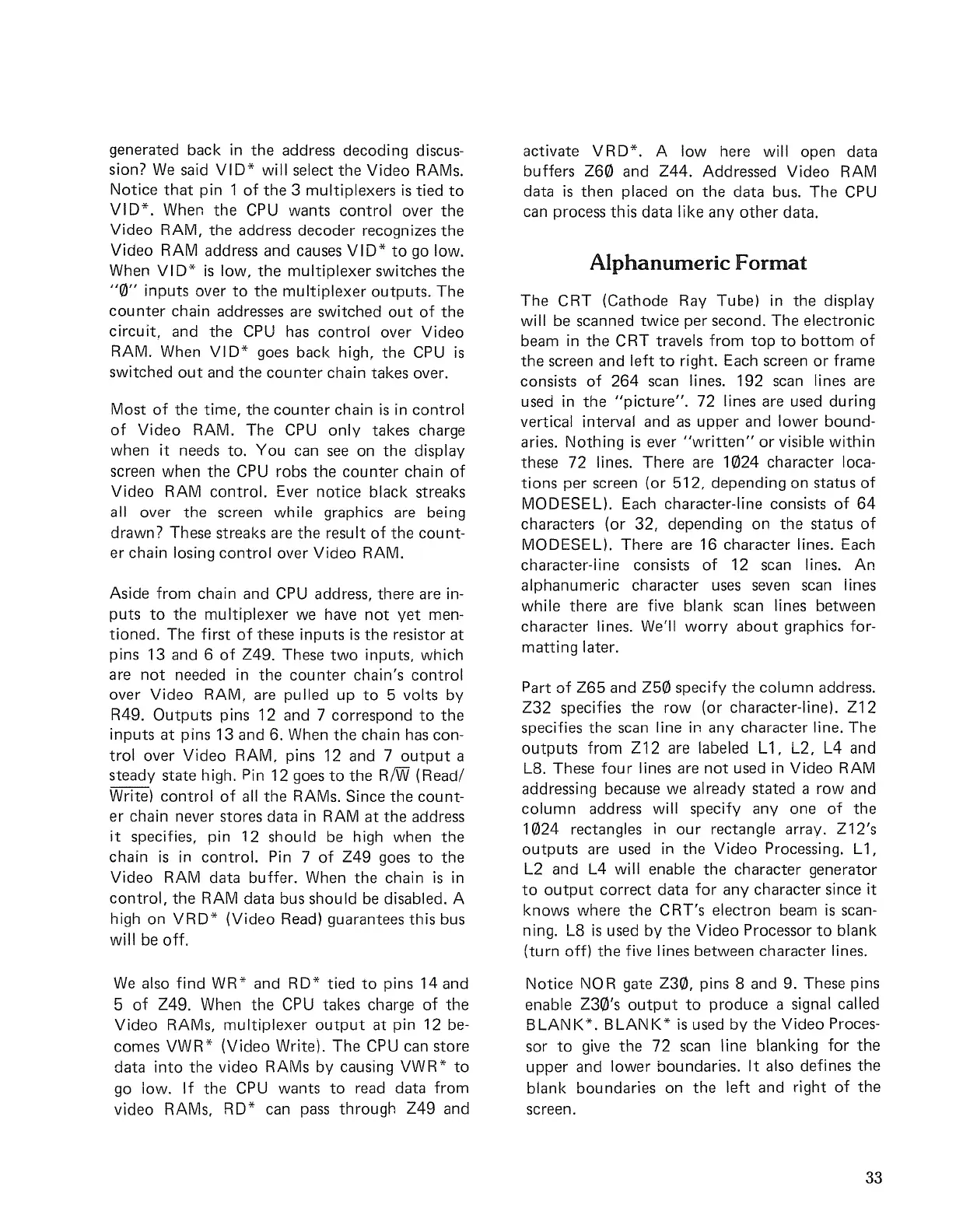

generated
back
in
the
address
decoding
discus-
sion? We said
VID*
will select
the
Video
RAMs.
Notice
that
pin 1
of
the
3
multiplexers
is
tied
to
VID*.
When
the
CPU
wants
control
over
the
Video
RAM,
the
address
decoder
recognizes
the
Video
RAM
address
and
causes
VID*
to
go low.
When VID*
is
low,
the
multiplexer
switches
the
"0"
inputs
over
to
the
multiplexer
outputs.
The
counter
chain
addresses are
switched
out
of
the
circuit,
and
the
CPU has
control
over
Video
RAM. When
VI
D*
goes
back
high,
the
CPU
is
switched
out
and
the
counter
chain
takes
over.
Most
of
the
time,
the
counter
chain
is
in
control
of
Video
RAM.
The
CPU
only
takes
charge
when
it
needs
to.
You
can
see on
the
display
screen
when
the
CPU
robs
the
counter
chain
of
Video
RAM
control.
Ever
notice
black
streaks
allover
the
screen
while
graphics are being
drawn?
These
streaks
are
the
result
of
the
count-
er
chain
losing
control
over
Video
RAM.
Aside
from
chain
and
CPU
address,
there
are in-
puts
to
the
multiplexer
we have
not
yet
men-
tioned.
The
first
of
these
inputs
is
the
resistor
at
pins
13
and
6
of
Z49.
These
two
inputs,
which
are
not
needed
in
the
counter
chain's
control
over
Video
RAM,
are
pulled
up
to
5
volts
by
R49.
Outputs
pins
12
and
7
correspond
to
the
inputs
at
pins
13
and
6.
When
the
chain
has
con-
trol
over
Video
RAM, pins 12
and
7
output
a
steady
state
high. Pin
12
goes
to
the
RIW
(Read!
Write)
control
of
all
the
RAMs.
Since
the
count-
er
chain
never
stores
data
in
RAM
at
the
address
it
specifies, pin
12
should
be high
when
the
chain
is
in
control.
Pin 7
of
Z49
goes
to
the
Video
RAM
data
buffer.
When
the
chain
is
in
control,
the
RAM
data
bus
should
be disabled. A
high
on
VRD*
(Video
Read)
guarantees
this
bus
will be
off.
We
also
find
WR*
and
RD*
tied
to
pins
14
and
5
of
Z49.
When
the
CPU
takes
charge
of
the
Video
RAMs,
multiplexer
output
at
pin 12 be-
comes
VWR*
(Video
Write).
The
CPU
can
store
data
into
the
video
RAMs
by
causing VWR*
to
go low. If
the
CPU
wants
to
read
data
from
video
RAMs, RD*
can
pass
through
Z49
and
activate
VRD*.
A low
here
will
open
data
buffers
Z60
and
Z44.
Addressed
Video
RAM
data
is
then
placed
on
the
data
bus.
The
CPU
can
process
this
data
like
any
other
data.
Alphanumeric
Format
The
CRT
(Cathode
Ray
Tube)
in
the
display
will
be
scanned
twice
per
second.
The
electronic
beam
in
the
CRT
travels
from
top
to
bottom
of
the
screen
and
left
to
right. Each screen
or
frame
consists
of
264
scan lines.
192
scan
Ii
nes are
used
in
the
"picture".
72
lines are used
during
vertical interval
and
as
upper
and
lower
bound-
aries.
Nothing
is
ever
"written"
or
visible
within
these
72
lines.
There
are
1024
character
loca-
tions
per
screen
(or
512,
depending
on
status
of
MODESE L). Each
character-line
consists
of
64
characters
(or
32,
depending
on
the
status
of
MODESEL).
There
are
16
character
lines. Each
character-line
consists
of
12
scan lines. An
alphanumeric
character
uses seven scan lines
while
there
are five
blank
scan lines
between
character
lines. We'll
worry
about
graphics for-
matting
later.
Part
of
Z65
and
Z50
specify
the
column
address.
Z32
specifies
the
row
(or character-line).
Z12
specifies
the
scan line
in
any
character
line.
The
outputs
from
Z
12
are labeled L1, L2, L4
and
L8.
These
four
lines are
not
used
in
Video
RAM
addressing
because
we
already
stated
a
row
and
column
address will
specify
anyone
of
the
1024
rectangles
in
our
rectangle
array.
Z12's
outputs
are used
in
the
Video
Processing. L1,
L2
and
L4 will
enable
the
character
generator
to
output
correct
data
for
any
character
since it
knows
where
the
CRT's
electron
beam
is
scan-
ning. L8
is
used
by
the
Video
Processor
to
blank
(turn
off)
the
five lines
between
character
lines.
Notice
NO
R gate
Z30,
pins 8
and
9.
These
pins
enable
Z30's
output
to
produce
a signal called
BLAN K*. BLAN K*
is
used
by
the
Video
Proces-
sor
to
give
the
72
scan line
blanking
for
the
upper
and
lower
boundaries.
It also
defines
the
blank
boundaries
on
the
left
and
right
of
the
screen.
33
