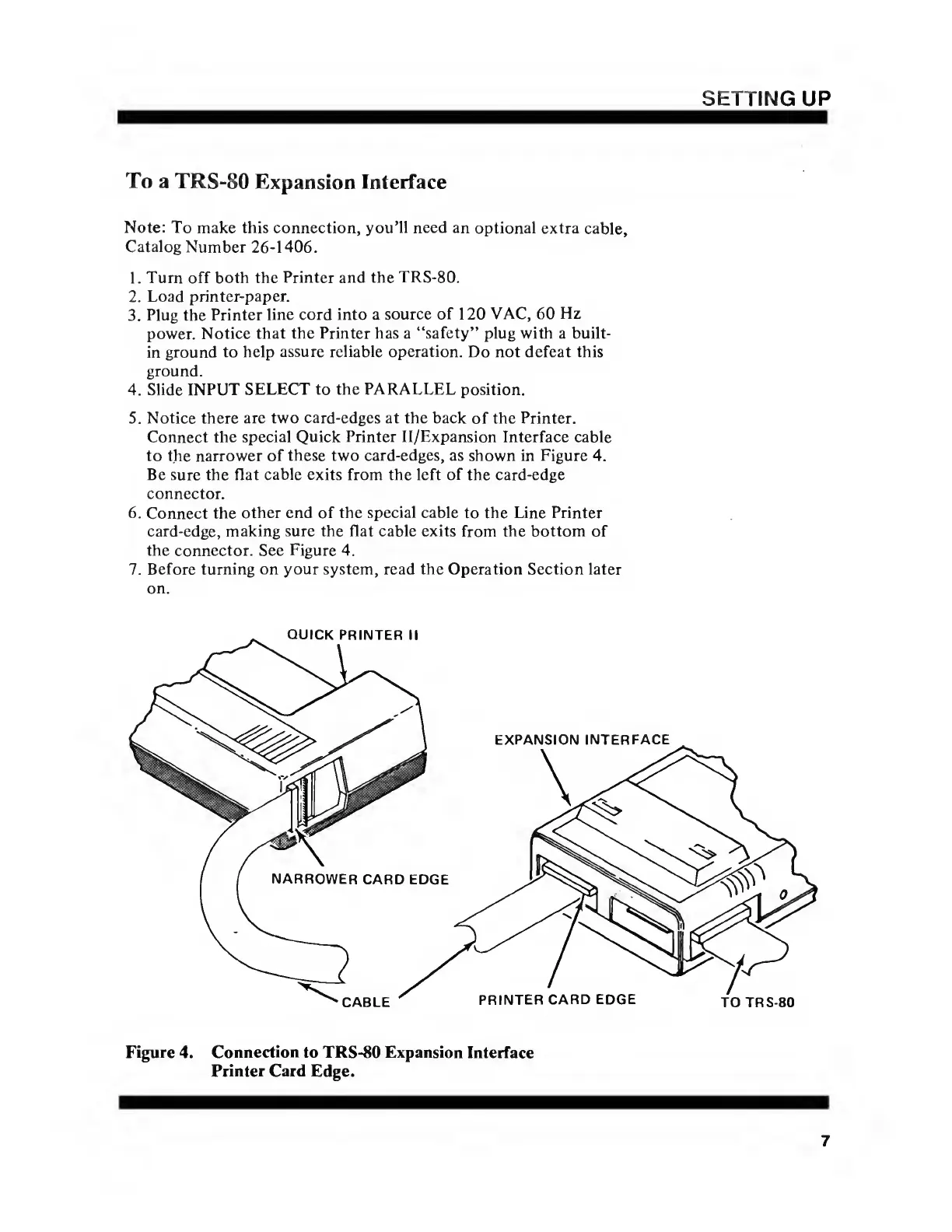

SETTING UP
To a TRS-80
Expansion
Interface
Note: To make
this connection,
you'll need an
optional
extra
cable,
Catalog
Number
26-1406.
1.
Turn off both
the Printer and the
TRS-80.
2.
Load
printer-paper.
3.
Plug
the
Printer
line cord into a
source
of
120
VAC, 60
Hz
power.
Notice
that
the
Printer has a
"safety"
plug with a built-
in ground
to help
assure reliable operation.
Do not
defeat
this
ground.
4. Slide
INPUT
SELECT to the PARALLEL
position.
5.
Notice there are two
card-edges
at the back
of the
Printer.
Connect the special
Quick Printer II/Expansion
Interface cable
to the
narrower of
these
two
card-edges, as
shown in
Figure
4.
Be sure the
flat cable exits
from the left
of
the card-edge
connector.
6.
Connect the
other end of the
special
cable
to
the Line Printer
card-edge,
making sure the flat cable exits
from
the bottom
of
the connector. See Figure 4.
7. Before turning on
your
system, read
the
Operation Section later
on.
QUICK
PRINTER
II
CABLE
PRINTER
CARD EDGE
TO
TRS
80
Figure
4.
Connection to TRS-80 Expansion
Interface
Printer Card
Edge.
