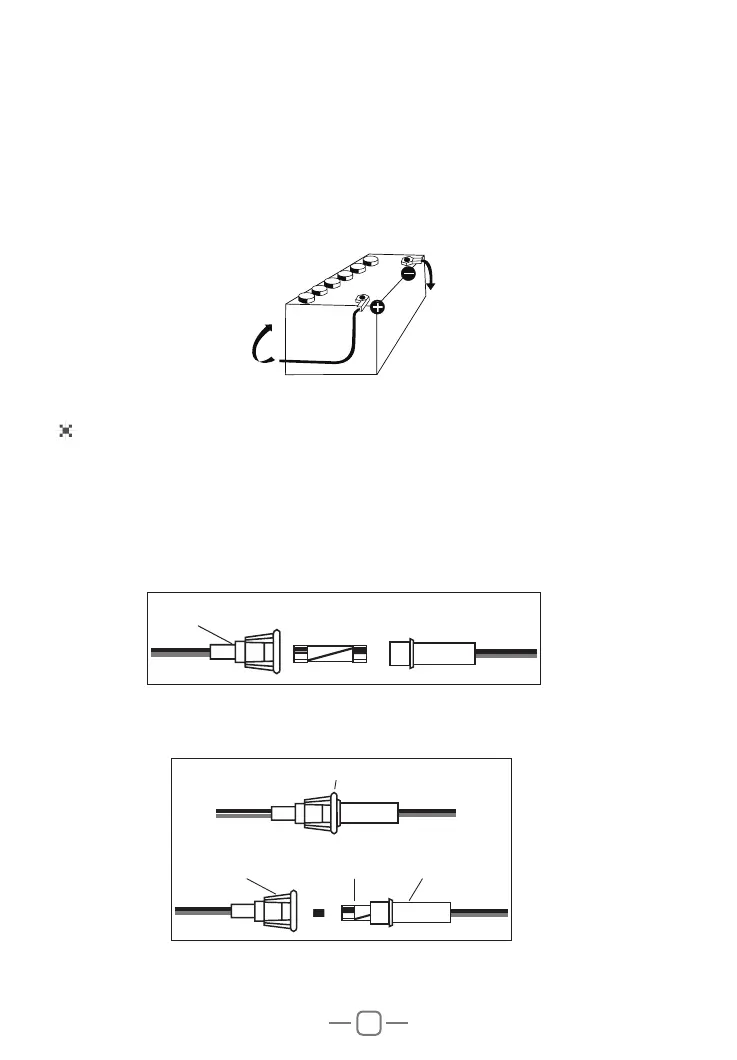

1. Connect the positive (red) power cable to the + terminal of the battery.
2. Connect the negative (black) power cable to the - terminal of the battery.
3. Connect the DC power cable to the transceiver's power supply connector.
Ÿ/RFDWHWKH SRZHUFDEOHDZD\ IURPKLJKWHPSHUDWXUH PRLVWXUHDQGRWKHU
electrical systems. Ensure it is installed where it cannot be damaged.
Ÿ,WLVQRWUHFRPPHQGHGWRXVHDYHKLFOHFLJDUFLJDUHWWHOLJKWHUVRFNHWWRSRZHUWKH
radio, as it may not supply the correct voltage or current.
Ÿ'RQRWUHPRYHWKHIXVHKROGHUIURPWKHFDEOH

REPLACING FUSES
This radio requires a 3A, 250V fuse.
If the fuse blows, determine the reason, then correct the problem.
After the problem is resolved, replace the fuse. If newly installed fuses continue
to blow, disconnect the power cable and contact your authorized dealer or an
authorized service center:
1. Twist the two fuse covers in opposite directions, and open it.
,
IN-LINE
FUSE HOLDER
2. Replace the blown fuse with new one, and close the fuse holder.
3. Be sure to only use the correct fuse type, otherwise damage may occur.
FUSE
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
IN-LINE
FUSE HOLDER
3A 250V FUSE
- (Black wire) connected
to chassis ground in most
vehicles (confirm with your
vehicle manufacturer)
+ (Red wire)
12V
