33
Line 1 Pulse = 25 nsec VOP
V Gain = 8 x
VOP = 83%
L1=55 dBRL
Batt
P r e s s
*
6 8 6 ft
2 0 9 m
2
1
Line 1 Pulse = 25 nsec VOP
V Gain = 20 x
VOP = 83%
L1 =16 dBRL
Batt
P r e s s
*
4 8 4 ft
1 4 8 m
2
1

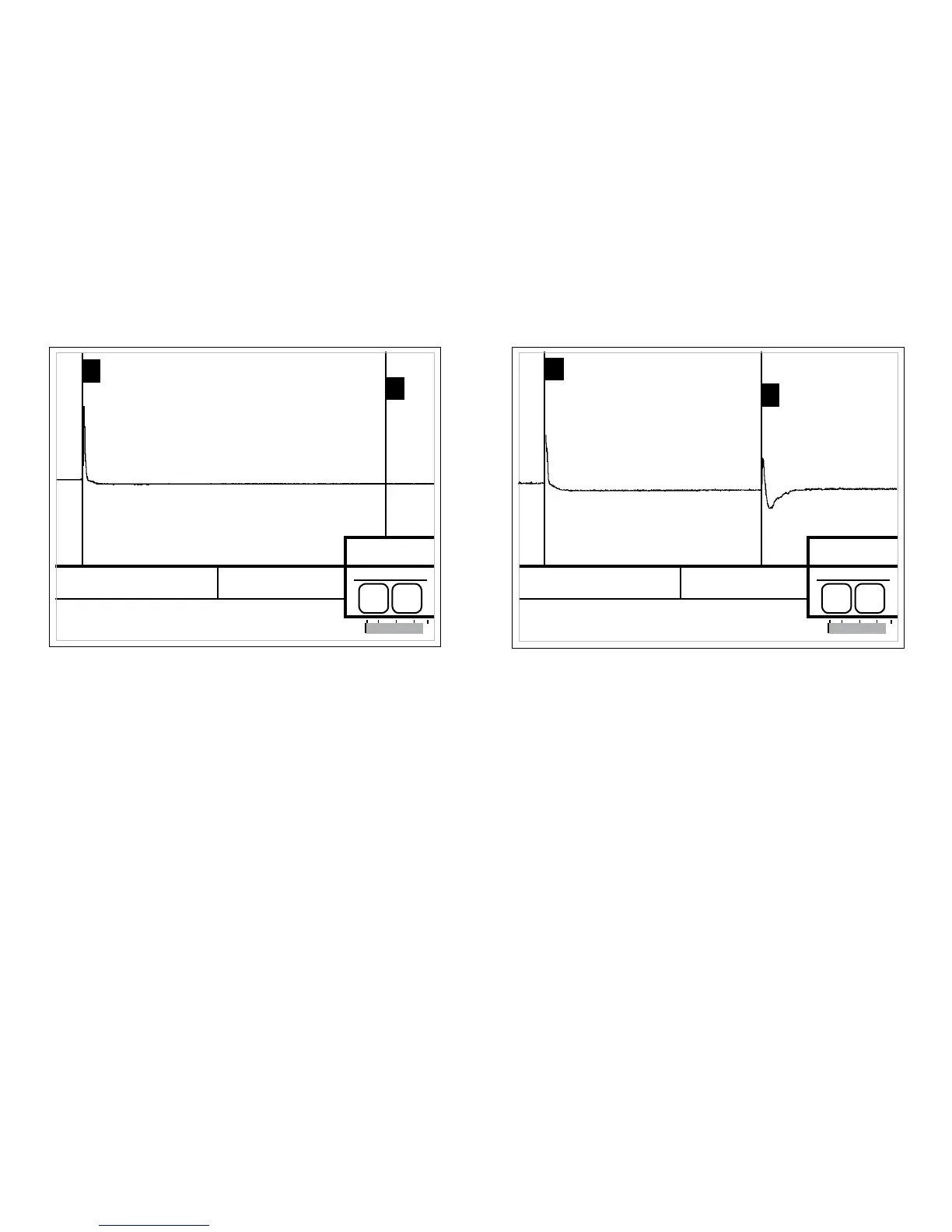

A properly TERMINATED cable will absorb the TDR
signal, resulting in no reflection. Faults prior to the
termination may appear as reflections along the
waveform.
Testing through to an antenna usually results in a “S”
shaped reflection, although reflections can vary greatly
depending on the antenna.
