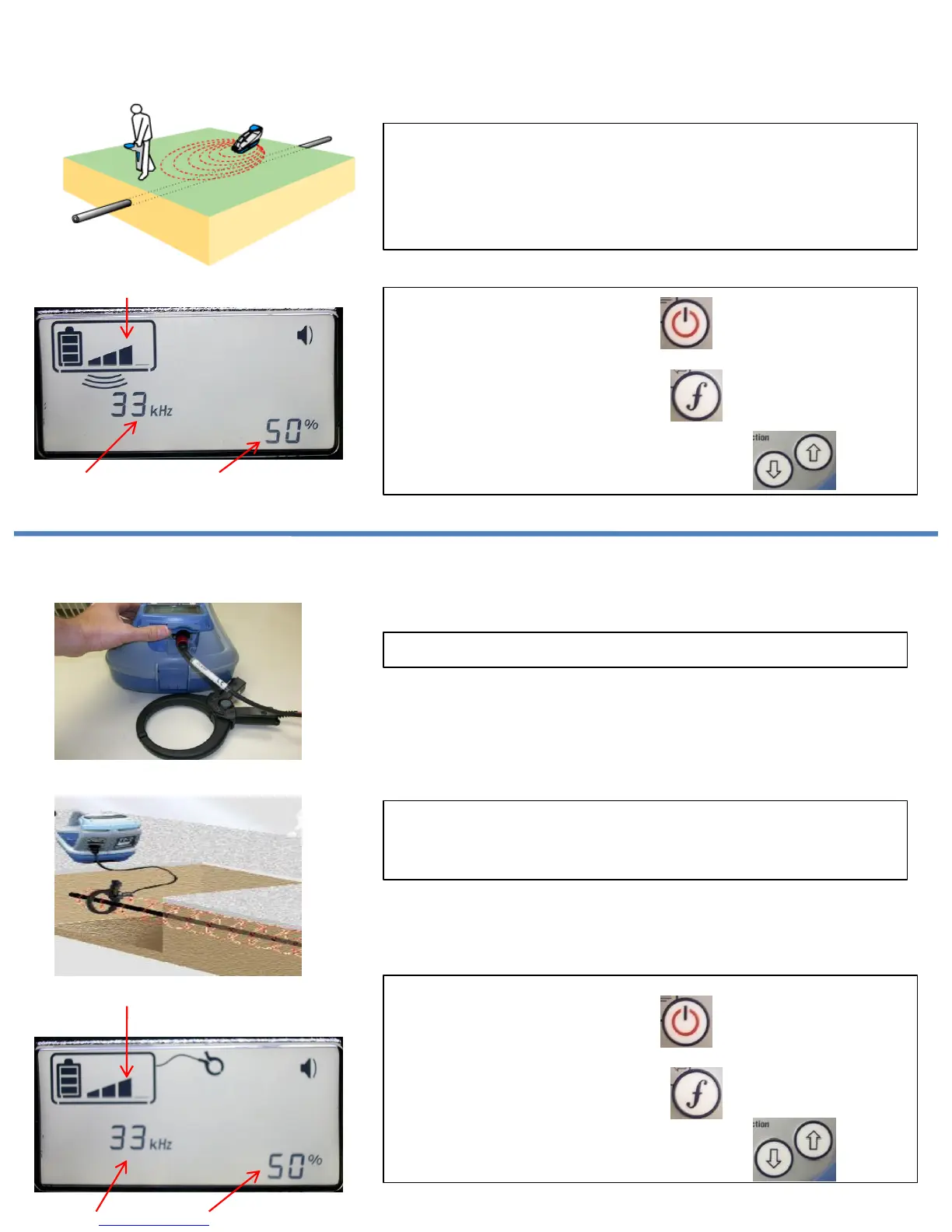

Radiodetection rd7000+ Quick Start Guide

•Turn on transmitter by pushing button.
•Set frequency to 33khz, pushing button.
•Set power to 3 bars (50% Output) pushing buttons.
RD7000+ QUICK START GUIDE
Transmitter – Induction
Place clamp around target conductor.
For best output ensure clamp completely closes around
conductor.
•Turn on transmitter by pushing button.
•Set frequency to 33khz, pushing button.
•Set power to 3 bars (50% Output) pushing buttons.
Plug clamp into connection socket on transmitter.
Transmitter – Signal Clamp
Inductive locating must be done at least 15 paces from
transmitter to avoid air-coupling.
Place transmitter on ground over expected path of conductor
with handle in line with path of conductor.
Power Bars
Frequency Output
Frequency Output
Power Bars
