RadioLink BYME-A User Manual

RadioLink Electronic Ltd
www.radiolink.com
4
Introduction
Byme-A V2.0 is a flight controller applicable to various straight wing aircraft including 3D fixed
wing(F3P) and 4-channel trainer and scale model aircraft(excluding V-tail gliders) and is SBUS and
PPM signal supported. With the three-axis gyroscope and three-axis acceleration sensor and the full
attitude algorithm, control algorithm and digital filter, Byme-A V2.0 makes the flight much easier.
There are six flight modes: Stabilize Mode, Gyro Mode, Acrobat Mode, Manual Mode, Vertical
Mode(Multirotor), and Vertical Mode(Fixed Wing).
Parameters
Size：35.5*15.5*10.5mm (1.4"*0.61"*0.41")
Weight(With wires)：4.5g（0.16oz）
Channel Quantity：4
Integrated Sensor：three-axis gyroscope and three-axis acceleration sensor
Signal Supported：SBUS/PPM
Input Voltage：5-6V
Operating Current：25±2mA
Installation

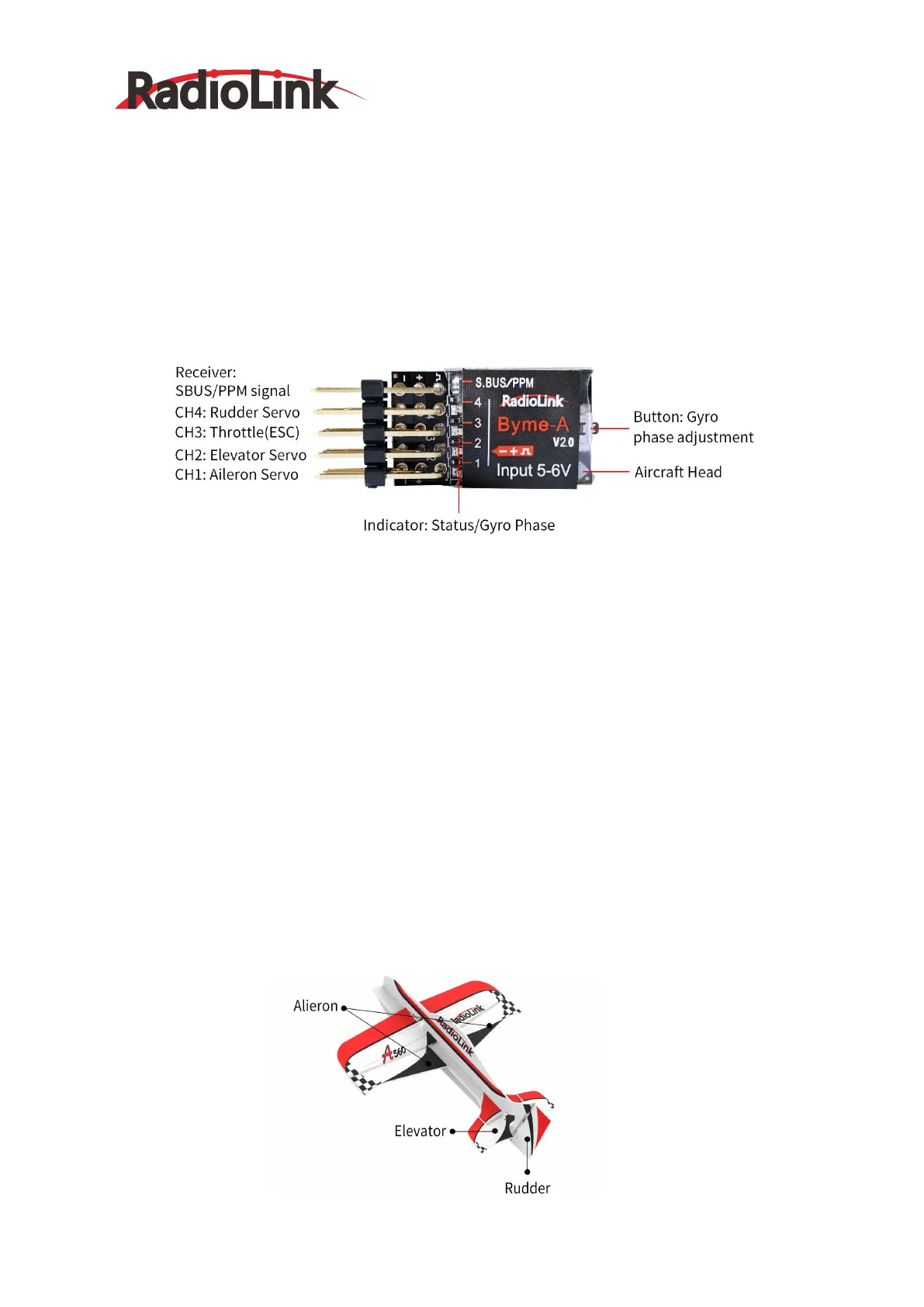

Make sure the arrow on Byme-A V2.0 points to the aircraft head. The flight controller can be installed
either face up or down with 3M glue on the aircraft body (better around the center) and the wires
connect to the corresponding pins. Install Byme-A V2.0 as shown below:
