27Belt Clip Installation Instructions

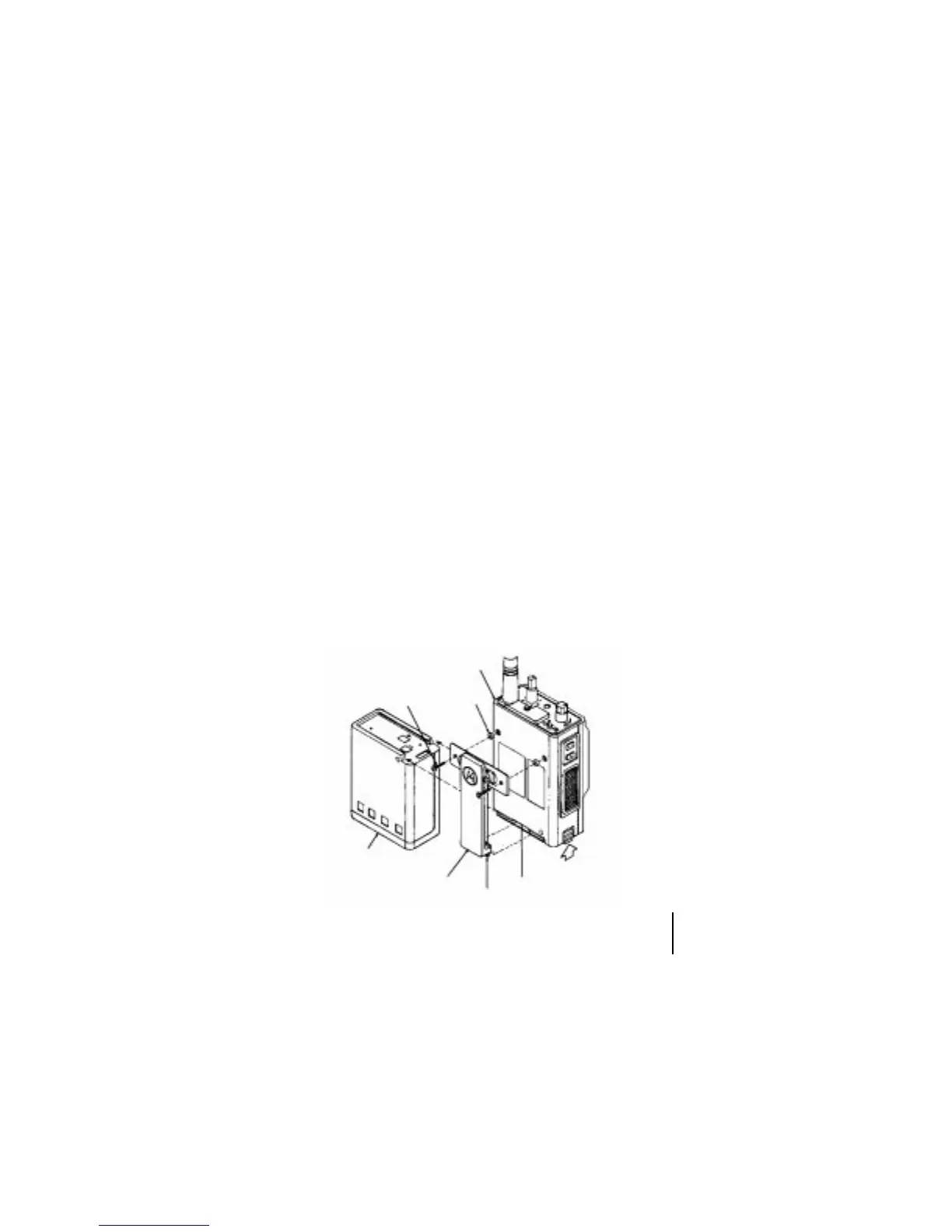

To facilitate installation, refer to the following diagram while
performing the following steps:
1. Make sure the radio is turned off, actuate the Battery
Release button, and slide the battery off the radio.
2. Remove the two belt clip/front cover attaching screws from
the back of the radio. Save the screws.
3.
Install the two rubber spacers into the holes vacated by the
removal of the screws in step 2.
4. Engage the lower attachment hook of the belt clip with the
lower attachment hook slot in the radio and line up the belt
clip attaching screw holes with the belt clip/front cover
attaching screw holes in the back of the radio.
5. Install the two belt clip/front cover attaching screws
removed in step 2 and tighten the screws firmly but not so
tight as to strip the threads.
6. Reinstall the battery by sliding it on to the bottom of the
radio far enough so that the battery release fully engages
the battery pack. This completes the installation.
BELT CLIP/FRONT COVER
ATTACHING SCREW (2)
LOWER ATTACHMENT
HOOK SLOT
LOWER ATTACHMENT
HOOK
RUBBER
SPACER (2)
P200 PORTABLE
RADIO
BATTERY
BELT
CLIP
BATTERY
RELEASE
