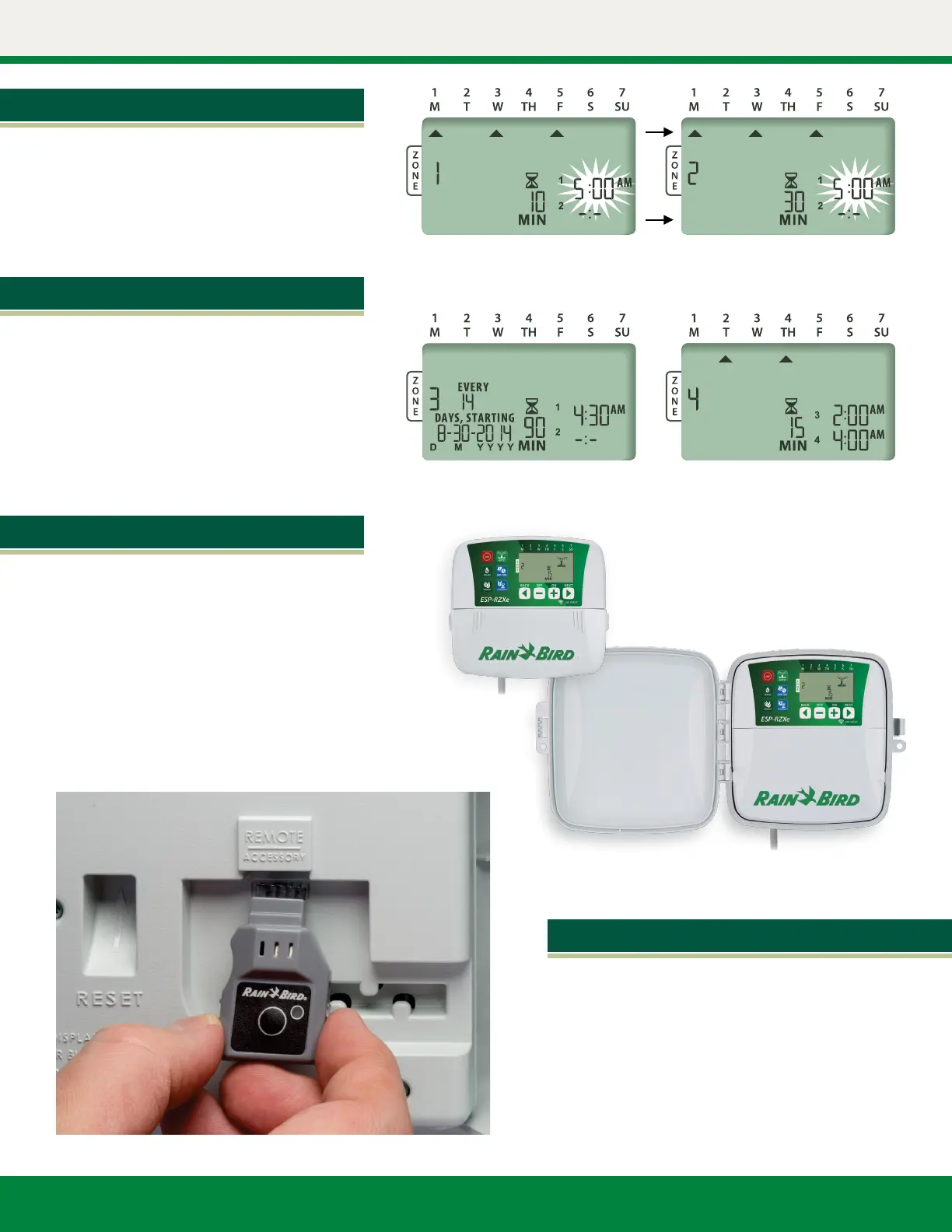

Rain Bird ESP-RZXe Quick Start Guide

LNK WiFi Module*
A revolutionary NEW product from Rain Bird
that enables instant WiFi connectivity!
* Sold separately
ESP-RZXe Controller
Quick to Program
l
Contractor Rapid Programming makes the ESP-
RZXe program like a traditional controller at
installation.
l
Start times, watering days and run time by zone,
all on one screen!
Easy to Use
l
Eliminates common homeowner programming
errors, like adding a start time for every zone or
adding a zone to the wrong program.
l
For the ultimate exibility, each zone can be
scheduled as its own program.
l
Powerful features such as At-A-Glance program-
ming, six start times per zone and more!
Advanced Features
l
Contractor Default™. Allows you to simply
save and restore your custom schedule.
l
Rain Sensor bypass by zone.
l
Also compatible with Rain Bird’s LIMR remote.
www.rainbird.com
®
Registered trademark of Rain Bird Corporation
© 2017 Rain Bird Corporation 27JU17 D40638
Indoor Model
Outdoor Model
Zone-specic schedules are easy to understand and modify.
Start times are automatically stacked so that only
one zone irrigates at a time.
Indoor/Outdoor models available
in 4, 6 and 8 station congurations.
WiFi Compatible
l
Easy access, monitor and operate your system
from anywhere.
l
Automatically and seamlessly enjoy the water
saving benets of daily seasonal adjustment.

Rain Bird ESP-RZXe Specifications

General

Zones	4, 6, or 8
Enclosure	Indoor/Outdoor
Start Times per Zone	6
Manual Watering	Yes
Delay Between Zones	Yes
Sensor Compatibility	Yes
Transformer Output	24 VAC
Pump/Master Valve Output	Yes
Voltage	24 VAC
Watering Start Times	6 per zone
Cycle + Soak	Yes
Sensor Input	1
Enclosure Rating	NEMA 3R
Wi-Fi Connectivity	Optional, with LNK2 WiFi Module
Programming	Zone-based
Display	Large LCD display
Power Source	24V AC transformer
Weather Sensing	Yes, via optional WR2 Wireless Rain Sensor or wired rain sensor
Remote Compatibility	Yes, with optional WiFi module
Station Output	24 VAC 650mA
Station Run Time	1 to 199 minutes
Backup Battery	No
Weight	680 g
