Rain Bird WP Series User Manual

19

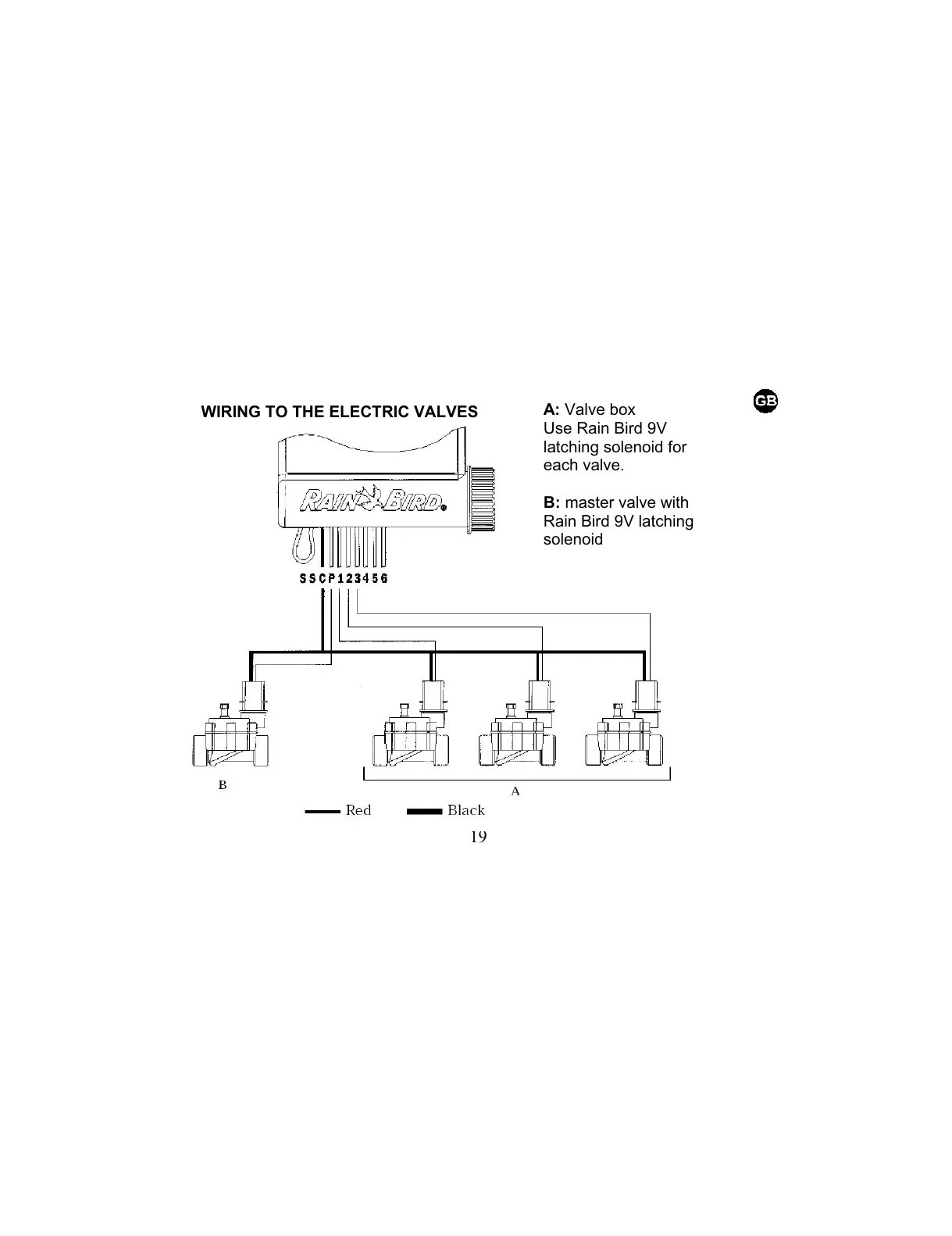

WIRING TO THE ELECTRIC VALVES
A
: Valve box
Use Rain Bird 9V
latching solenoid for
each valve.
B: master valve with
Rain Bird 9V latching
solenoid
All manuals and user guides at all-guides.com

Rain Bird WP Series Specifications

General

Solenoid Type	Latching
Watering Days	7-day watering schedule
Mounting	Wall
Rain Sensor Compatibility	Yes
Operating Pressure	15 to 150 PSI (1, 0 to 10, 4 BAR)
Manual Operation	Yes
