WR2-48 Wireless Sensor
2

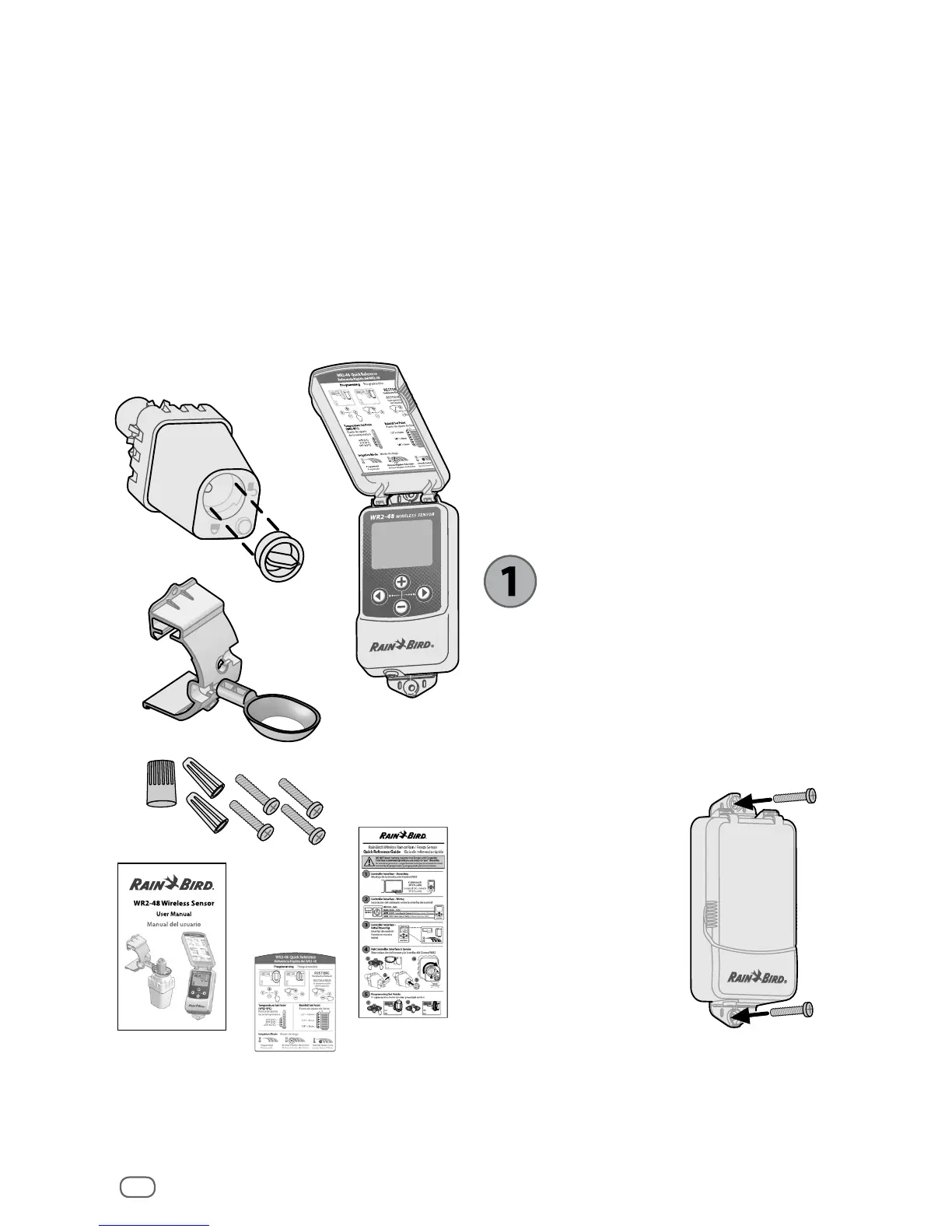

WR2 Components
A
Controller Interface
B
Sensor
C
Battery Cassette and Lithium CR2032
Battery
D
Sensor Mounting Bracket Assembly
E
Mounting Hardware
F
User’s Manual
G
Quick Reference Guide
H
WR2-48 Quick Reference Label

NOTE: Tools needed for installation:
drill, drill bit, and Phillip’s head
screwdriver.
WR2 Benefits

All settings are programmed through the
Controller Interface device

Large easy to understand icons communicate
irrigation mode and sensor status

Sensor LED indicator enables one-person
setup, reducing installation time

Battery is easy to install / replace

Aesthetic appearance - no external
antennas

Easy to install, self-levelling sensor bracket
mounts to at surfaces or rain gutters

“Quick Shut O ” interrupts active
irrigation cycle during a rain event

Enhanced antenna array provides
superior signal reliability that overcomes
most line of sight obstructions

Automatically prevents irrigation for
48-hours following a rainfall event (WR2-
48 model only).
Mounting the
Controller Interface
Choose a location near the irrigation
controller / timer.

CAUTION: The cable harness is 30
inches (76.2 cm) long, so before
mounting the device, ensure the wires
easily reach the irrigation controller’s
connection terminals.

Select a at surface
adjacent to the irrigation
controller.

For best performance,
the Controller Interface
should be installed at
least ve feet (1.5m)
above the ground.

It is recommended that
the Controller Interface
be installed away from
sources of electrical interference (such
as transformers, generators, pumps, fans,
electrical meter boxes) and metal objects
to maximize communication range.

Use the mounting hardware supplied.
Attach the Controller Interface to the wall.
