Rain Master PROMAX - Figure 4: Permanent Mount Pro Max Receiver

Rain Master Irrigation Systems Pro Max User’s Manual
1. Part No. JACK-IRC
• Factory installed permanent interface.
• Factory programmed Pro Max receiver with a programmed access code (1-999). Access
codes are required whenever one Pro Max transmitter controls multiple Pro Max Pro
Max receivers.
2. Part No. PMRKIT
• Permanently mounted Pro Max receiver
• Antenna Pro Max-ANT
• All interconnecting cables and hardware
Note: Operation of a permanent mount Pro Max receiver requires usage of the
ACCESS CODE feature key. Refer to section 4.6.

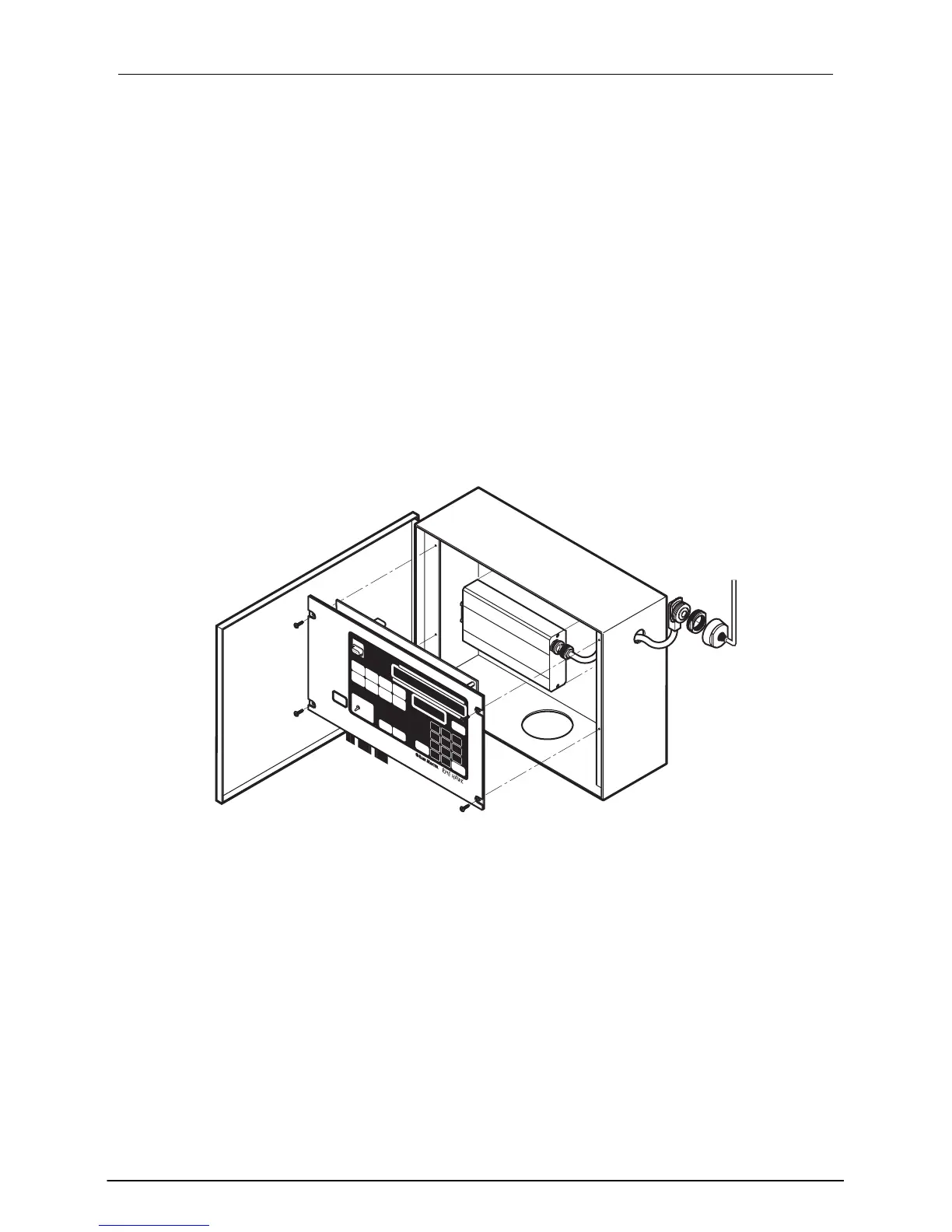

Figure 4: Permanent Mount Pro Max Receiver
Page 9
