Pro2-Series 3D Printer
/ Quick Start Guide
H. Dual-Extruder Print - Hardware Installation

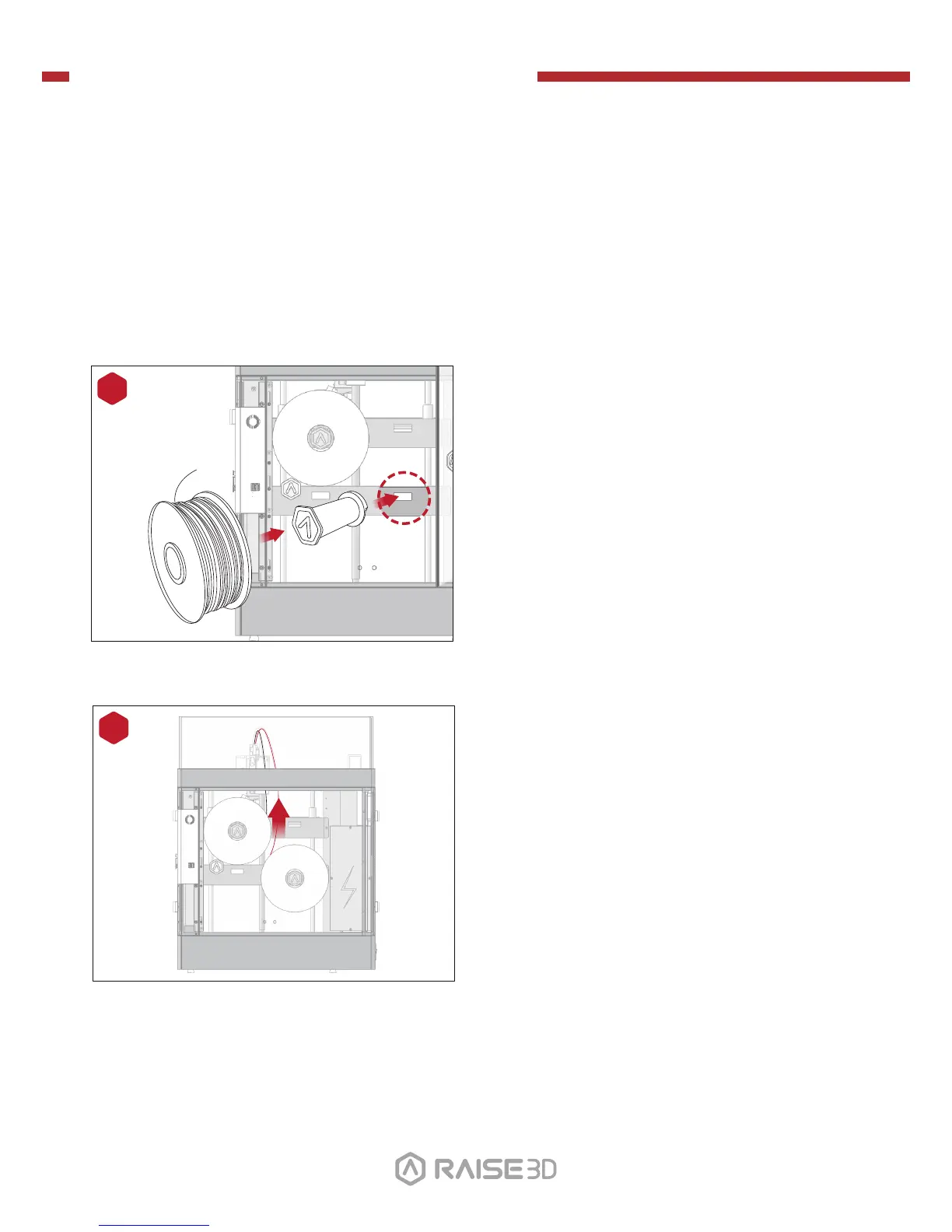

Feed the filament through the guide tube.
2
Install the filament holder in the mount
point on the side of the printer and place a
spool of filament on the holder.
NOTE: The direction of filament spool should be
placed to rotate in clockwise at mount points B
and D and counterclockwise at mount points A
and C.
A B
C D
1
Mount Points
The following steps show how to feed the right nozzle. For the other hardware installations
steps please see with Part B. Hardware Installation in this guide.
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19
20 21 22
23 2624 25
