Pro2-Series 3D Printer
/ Quick Start Guide

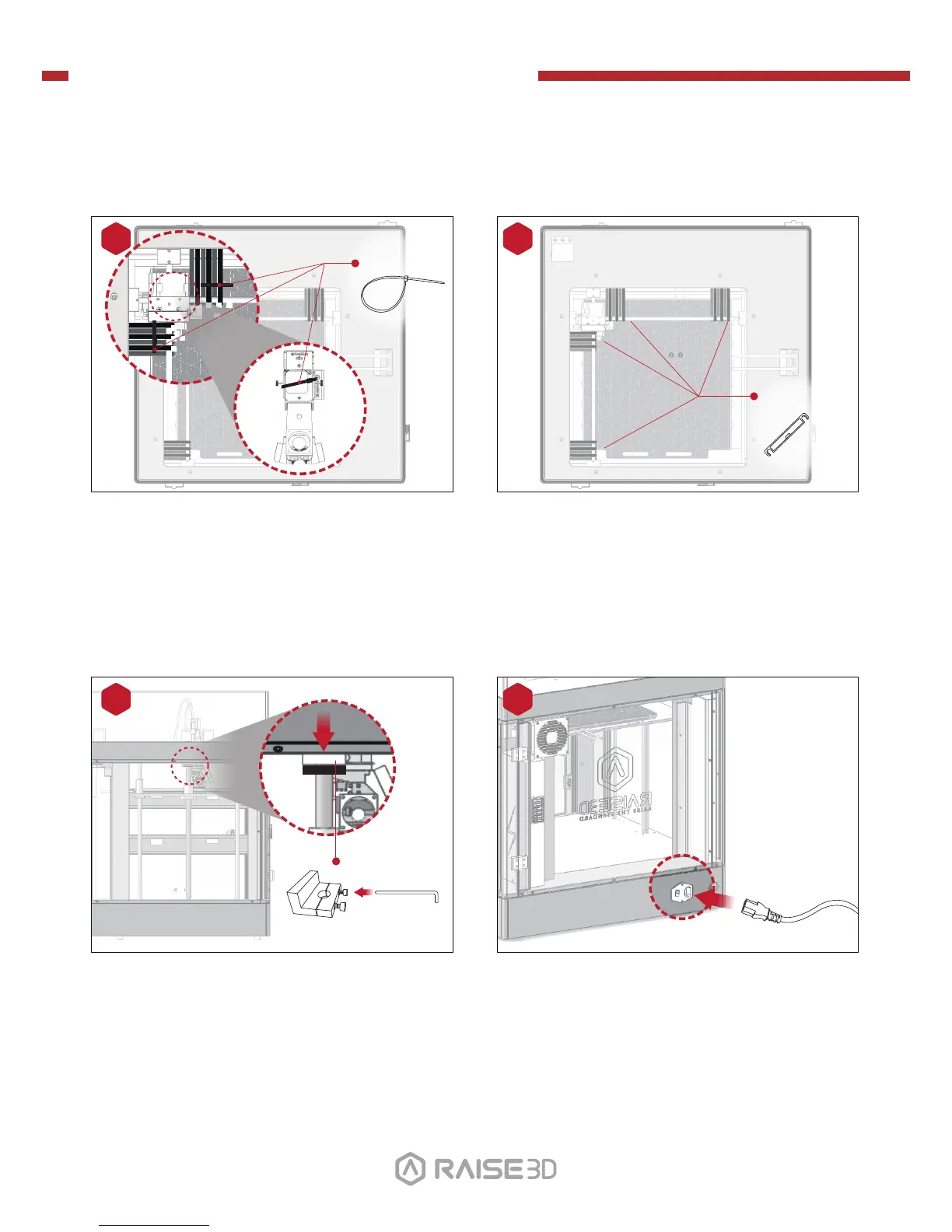

B. Hardware Installation
Locate the four shipping zip ties, and
remove them.
It's recommend to unclip these as opposed
to cutting. They can be reused if you need
to transport your machine in the future.
1
3
Remove!
(×2) Hex Wrench
(3 mm)
Select the largest of the included hex head
wrench (3mm), and remove all four hex
head security bolts from Z-axis clamps (2
bolts each).
These are located on the left and right
sides on the printer on the ball screw
thread.
Peel the yellow sticker and remove the 24
security spacers.
These clips are designed to hold the
extruder assembly in place during shipping
and should be saved for future transport.
Do not operate printer with clips installed.
2
Remove!
(×24)
Remove!
Plug the machine into a wall outlet using
the power adapter for your designated
country. (5 included)
Flip the switch to power the unit on.
4
01 02
03 04 05 06
07 08 09 10
11 12 13 14
15 16 17 18
19 20 21 22
23 2624 25
To Next Page
