Raisecom ISCOM2624G-4C-PWR-AC User Manual

Raisecom
ISCOM2600G (A) Series Product Description
3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
36
3.3 Power interfaces
3.3.1 DC power
Introduction
The DC power supply provides -48 VDC power.
Interface
There is a DC power input interface for inputting DC power on the panel of the ISCO2600
series switch, as shown in Figure 3-34.

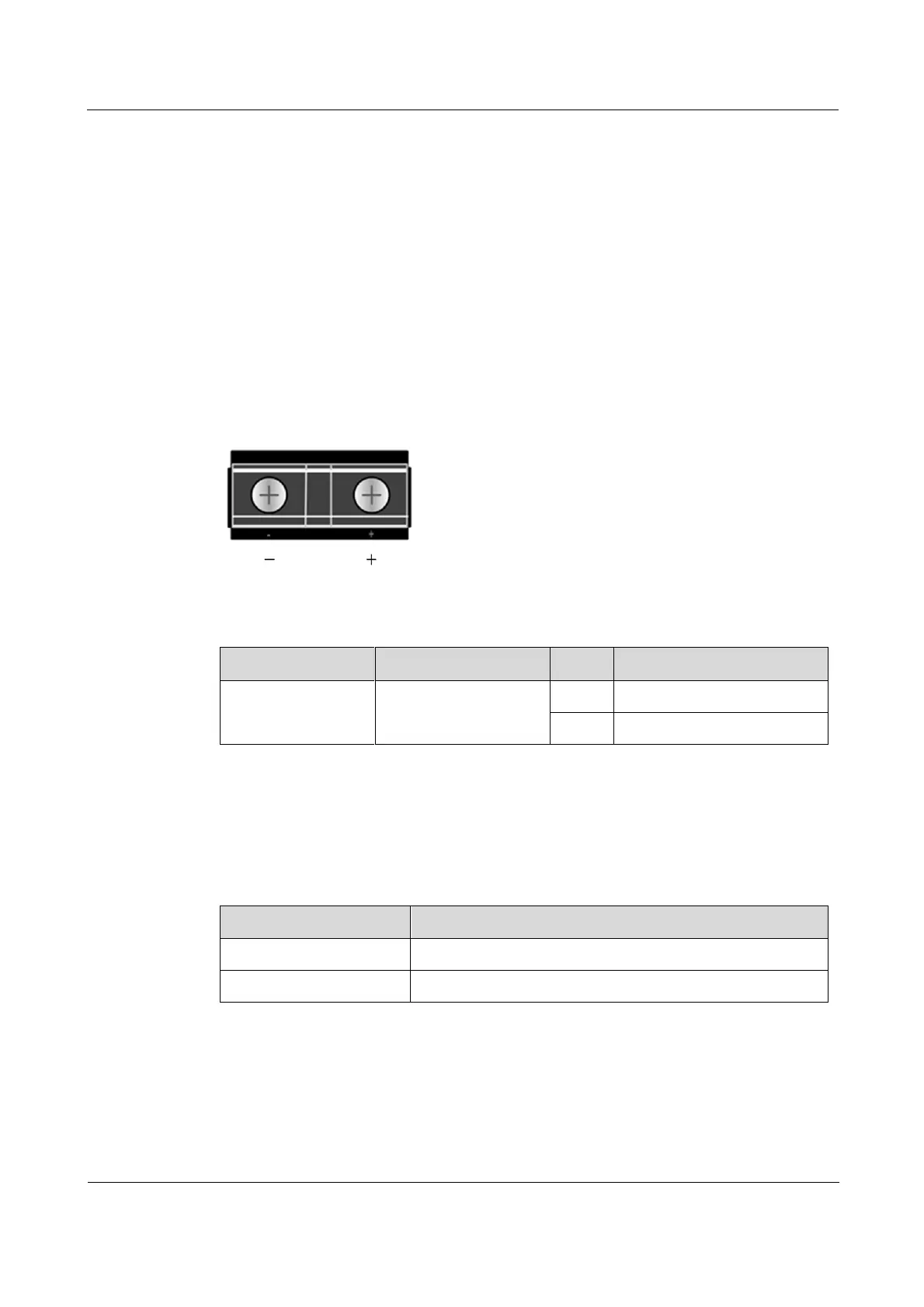

Figure 3-34 DC power interface
Table 3-9 describes the DC power interface.
Table 3-9 DC power interface
Power interface
Type
Print
Usage
DC power interface
Fence terminal
–
-48V power input terminal
+
GND power input terminal
Parameters
Table 3-10 lists parameters of the DC power interface.
Table 3-10 Parameters of DC power interface
Parameter
Description
Rated input voltage
-48 VDC
Voltage range
-36 to -72 VDC
3.3.2 AC power interface
Introduction
The AC power supply supports the following features:

Raisecom ISCOM2624G-4C-PWR-AC Specifications

General

Model	ISCOM2624G-4C-PWR-AC
Ports	24
Uplink Ports	4
Power over Ethernet	Yes
Power Supply	AC
Switching Capacity	128 Gbps
MAC Address Table	16K
VLAN Support	Yes
Jumbo Frame Support	Yes
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Type	Switch
Operating Temperature	0°C to 50°C
