ISCOM2600G (A) Series Product Description
3 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
38

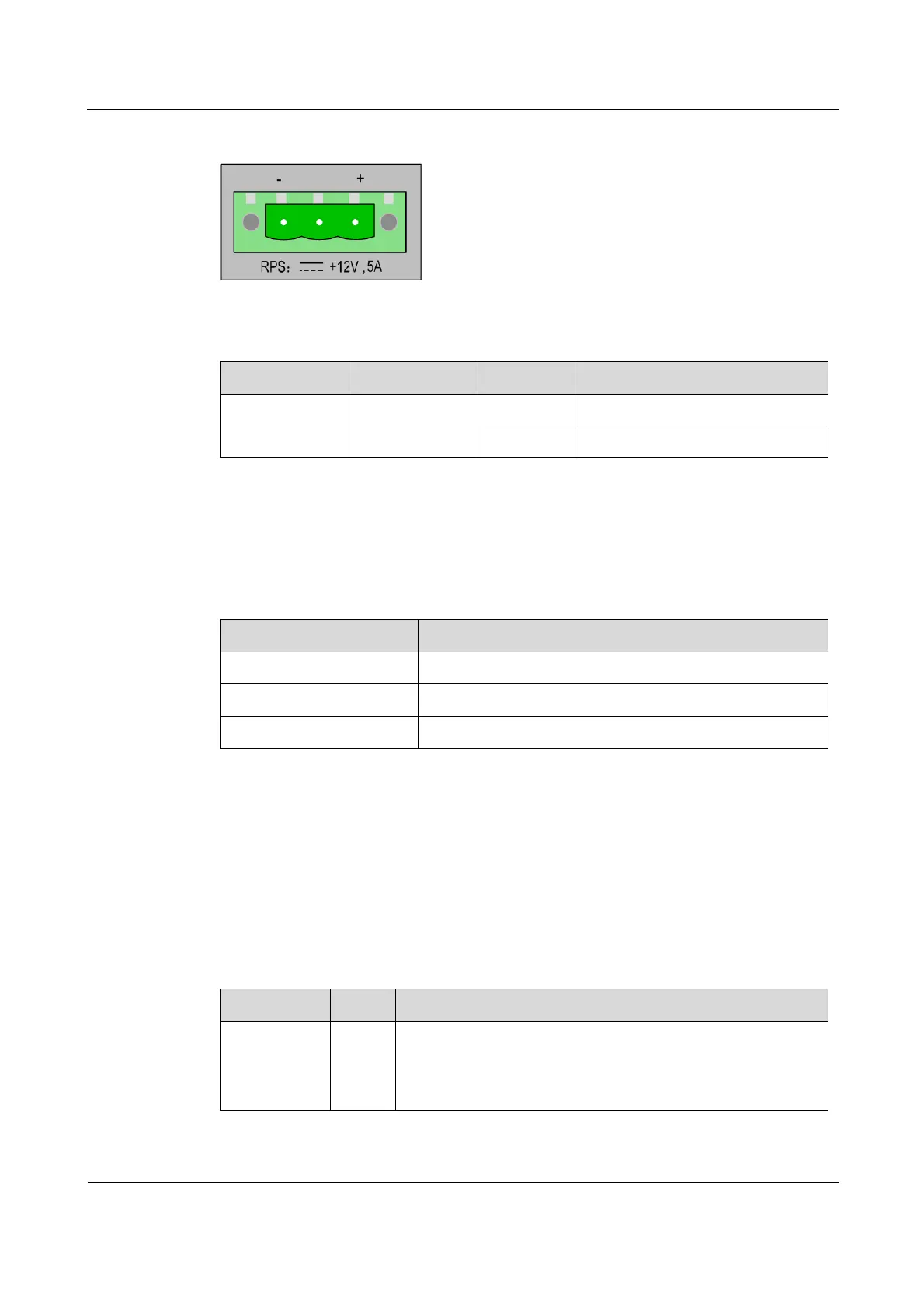

Figure 3-37 ISCOM2648G-4GE-RPS-AC power interface
Table 3-12 lists details about the RPS power interface.
Table 3-12 Details about the RPS power interface
Interface
Type
Print
Usage
RPS power
interface
3-pin Phoenix
connector
-
GND power input terminal
+
+12V power input terminal
Specifications
Table 3-13 lists parameters of the RPS power interface.
Table 3-13 Parameters of the RPS power interface
Parameter
Description
Connector type
3-pin Phoenix connector (with spaces of 5.08 mm)
Rated voltage
12 VDC
Voltage range
11.64–12.36 VDC
3.4 LEDs
3.4.1 ISCOM2608G-2GE
Table 3-14 lists LEDs on the ISCOM2608G-2GE.
Table 3-14 LEDs on ISCOM2608G-2GE
LED
Status
Description
LNK/ACT
1–8
Green
Ethernet interface working status LED

Green: the interface is properly connected.

Blinking green: the interface is receiving or sending data.

Off: the interface is disconnected or improperly connected.

Raisecom ISCOM2624G-4C-PWR-AC Specifications

General

Model	ISCOM2624G-4C-PWR-AC
Ports	24
Uplink Ports	4
Power over Ethernet	Yes
Power Supply	AC
Switching Capacity	128 Gbps
MAC Address Table	16K
VLAN Support	Yes
Jumbo Frame Support	Yes
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Type	Switch
Operating Temperature	0°C to 50°C
