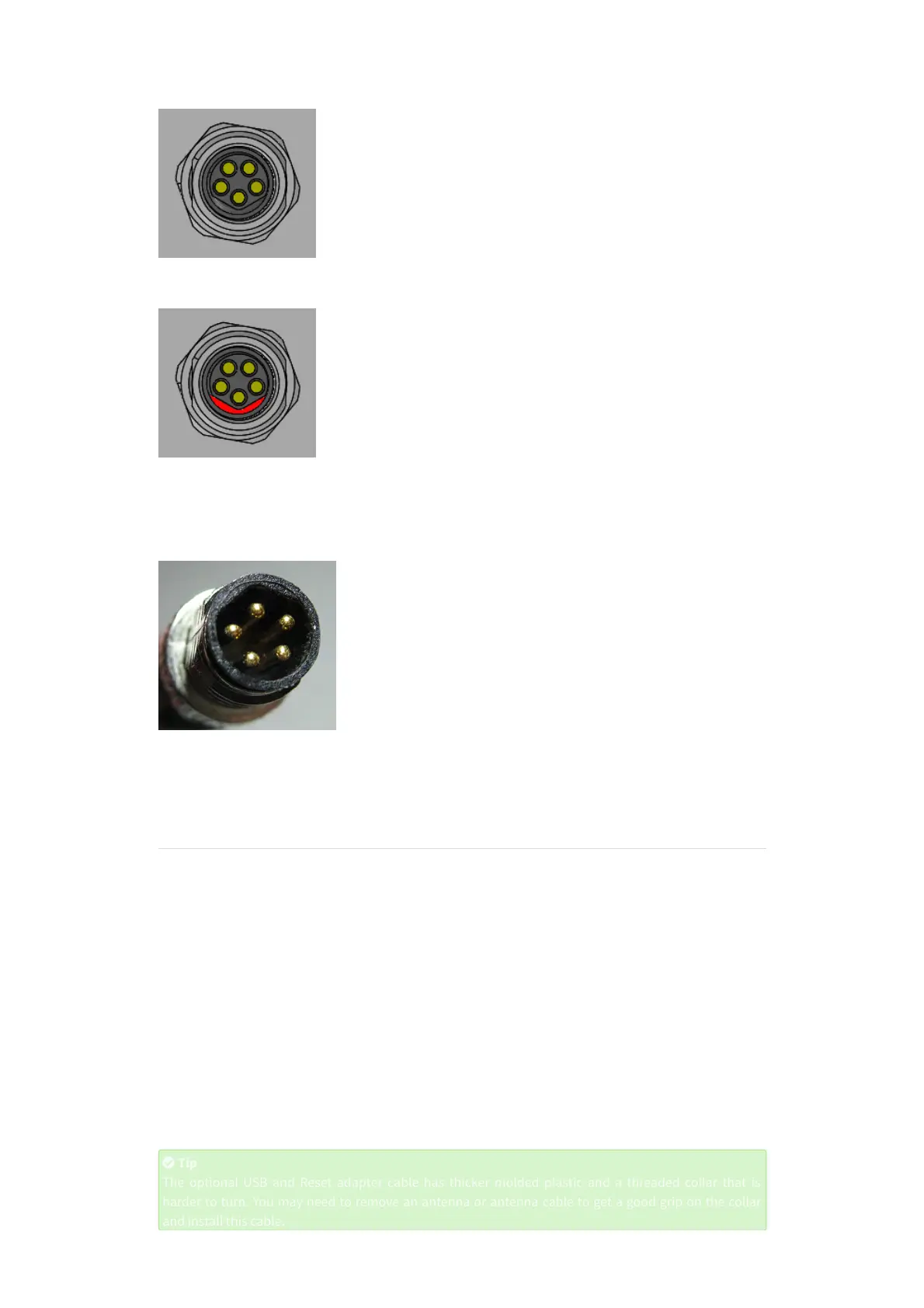

Figure: M8 5-pin Female (ES1-5050CS Enclosure Bottom)
Figure: M8 5-pin Female w/ Recessed Key Highlighted (ES1-5050CS Enclosure Bottom)
The male M8 connector of the ES1-5050CS M8 5-pin male to USB 2.0 female adapter cable has the match-
ing angular key, shown at the top of the connector in the following figure:
Figure: M8 5-pin Male (ES1-5050CS Adapter Cable)
Rajant ES1-5050CS M8 adapter cables use a connector similar to this molded straight shielded 5-pin male
connector from Finecables Enterprise Co. Ltd., for example MA08MSBF05STXXYB25, where XX is cable
length and Y is “C” for PVC or “R” for PUR cable jacket.
2.5.2 Connecting ES1-5050CS M8 Adapter Cable
To connect an ES1-5050CS M8 adapter cable, do the followinbg:
1. Turn off power to the BreadCrumb ES1 power supply.
2. Line up the M8 keys by feel. (It is difficult to visually line up the M8 keys.) Gently press the cable’s M8
male connector against the enclosure’s M8 female connector and rotate the male connector until
you feel it move slightly into the female connector.
3. While pressing the M8 male connector toward the female connector, turn the M8 male connector’s
threaded metal collar clockwise to catch the first thread. Once the threads have been engaged, the
connection should be more stable.
4. Repeat the following two steps until fully connected:
a. Turn the M8 male connector’s threaded metal collar clockwise to thread it further into the
enclosure’s female connector.
b. Press the M8 male connector further into the female connector.
5. When the adapter cable is fully connected, power may be reapplied to the ES1-5050CS power supply.
Tip
Tip
The optional USB and Reset adapter cable has thicker molded plastic and a threaded collar that is
The optional USB and Reset adapter cable has thicker molded plastic and a threaded collar that is
harder to turn. You may need to remove an antenna or antenna cable to get a good grip on the collar
harder to turn. You may need to remove an antenna or antenna cable to get a good grip on the collar
and install this cable.
and install this cable.
