RAK LoRaWAN Industrial Gateway Configuration Guide

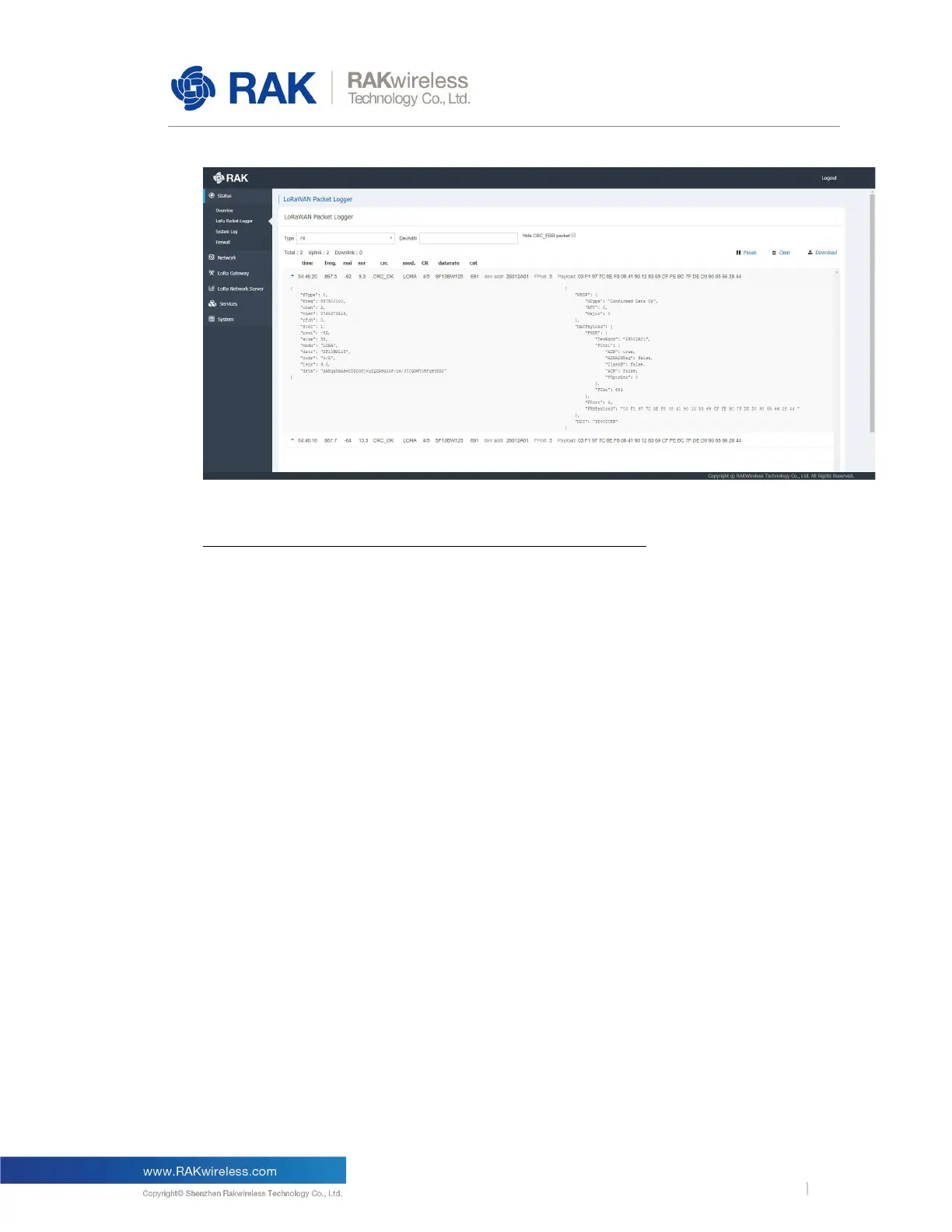

Figure 2 | LoRa Packet Logger page
The user can choose to filter the packets by one of the following:
Type:
Filter by message type. By default ALL messages are displayed, where possible options are:
Join Request/Accept, Unconfirmed Data Up/Down, and Confirmed Data Up/Down
DevAddr:
Filter messages based on the Device Address in order to single out a node.
Hide CRC_ERR packet:
This check box hides messages that are corrupted in some way and will not be forwarded.
The buttons for Pause/Play, Clear and Download of the data are in the top right over the list.
If the user clicks on a given packet the window is expanded detailed information about the
contents of the message is displayed
3.1.3 System Log
The complete system log. It is useful mainly for debugging purposes.
3.1.4 Firewall
Statistics for the Gateway Firewall
