256 STARTING AND OPERATING
AIR SUSPENSION SYSTEM — IF EQUIPPED
DESCRIPTION
This air suspension system is a rear leveling ride
height system. The main purpose of this system
is to maintain the truck’s rear ride height level.
There are two selectable heights that can be
chosen based on your operating conditions.
The system requires that the ignition be in the
ON/RUN position or the engine running with
zero vehicle speed for all user requested
changes and load leveling.

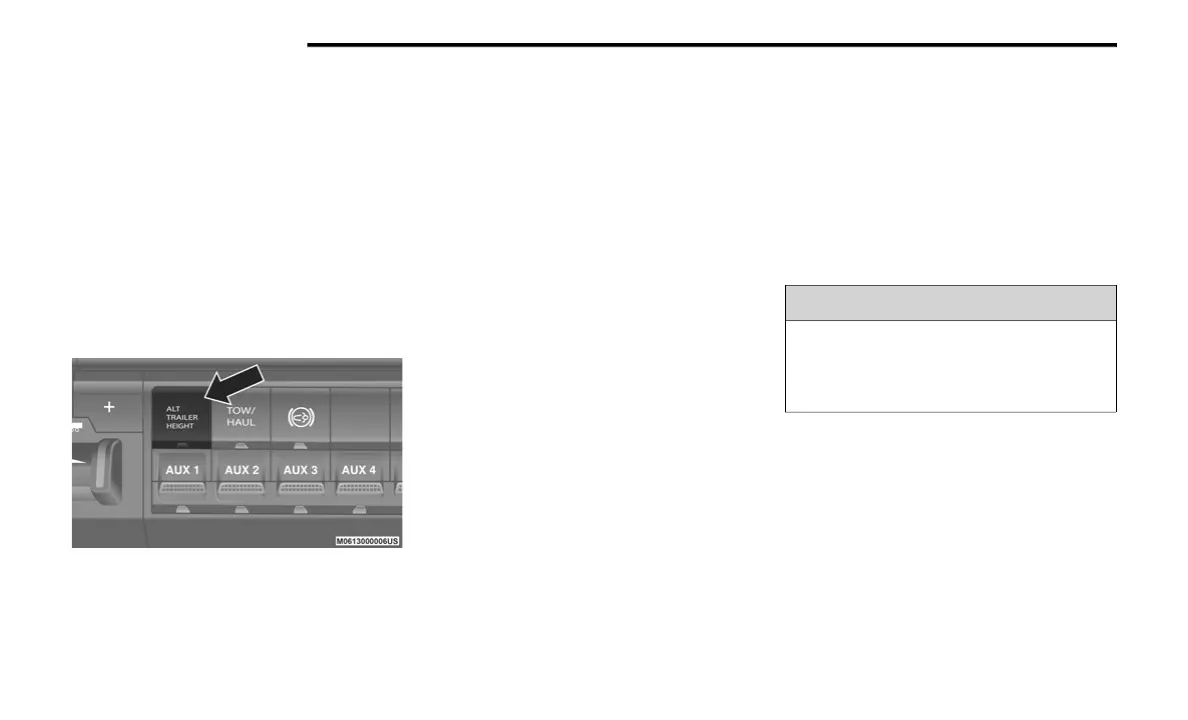

Rear Leveling Ride Height Switch
Normal Ride Height (NRH) – This is the standard
position of the suspension and is meant for
normal driving. It will automatically adjust to
maintain the rear ride height as conditions
change.
Alternate Trailer Height (ATH) – Lowers the
vehicle approximately 1 inch (25 mm) for a level
truck, to be used as required while trailer
towing. It will automatically adjust to maintain
the rear ride height as conditions change.
Trailer Decoupling/Unloading - The air
suspension system will continue to load level
after the vehicle has been turned off for
10 minutes without compressor activation. This
allows for easy removal of a trailer and/or load
from the back of the truck by maintaining the
ride height. After 10 minutes you will need to
turn the ignition to the run position for the air
suspension to re-level due to addition/removal
of load in the vehicle. If the air suspension
system is disabled using the settings menu (Tire
Jack Mode, Transport Mode, Alignment Mode,
or Bed Lowering Mode) the system will remain
disabled when the vehicle is turned off.
Reactivating the air suspension can be
accomplished via the settings menu or driving
the vehicle above 5 mph (8 km/h) for Tire Jack
Mode, Alignment Mode, Transport Mode and
Bed Lowering Mode.
NOTE:
Most 3500 models will not lower to Alternate
Trailer Height (ATH) when unloaded.
Refer to “Trailer Towing” in “Starting And
Operating” for further information.
AIR SUSPENSION MODES
The air suspension system has multiple modes
to protect the system in unique situations:
Tire/Jack Mode
To assist with changing a tire, the air
suspension system has a feature which allows
the automatic leveling to be disabled. This
mode is intended to be enabled with the engine
running. Refer to “Instrument Cluster Display”
WARNING!
The air suspension system uses a high
pressure volume of air to operate the system.
To avoid personal injury or damage to the
system, see an authorized dealer for service.
