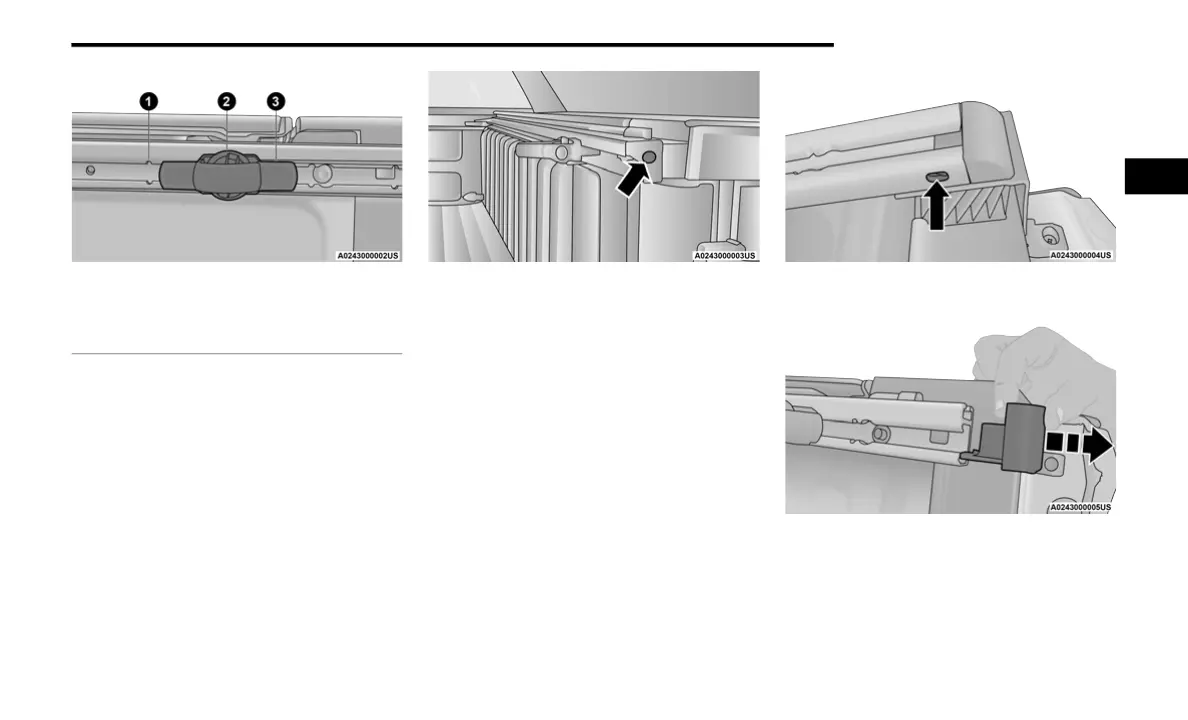

Adjustable Cleat Assembly
Cleat Removal (With Tonneau Cover)
To remove the cleats from the utility rail, remove
the end cap screw located in the center of the
end cap, using a #T30 Torx head driver.
Remove the end cap and slide the cleat off the
end of the rail.
End Cap Screw Location If Equipped With
Tonneau Cover
Cleat Removal (Without Tonneau Cover)
Remove the end cap by pushing upward on the
release button located beneath the end cap
while pulling the cap away from the rail. The
cleat can now be removed by sliding it off the
end of the rail.
End Cap Release Button If Not Equipped With Tonneau
Cover
Pull End Cap Away From Rail
1 — Utility Rail Detent
2 — Cleat Retainer Nut
3 — Utility Rail Cleat
