SECTION 5 - SAFETIES
Page 5-2
Rev B – June 2013
5.2
Figure 3 shows the location of the slack cable brake safety circuit switch. Adjust this switch by rotating the spline
switch head and/or bending the copper tube so that the switch activates when the safeties are engaged and so the
switch disengages just prior to coming to rest in the normal position when the brake linkage is fully disengaged.

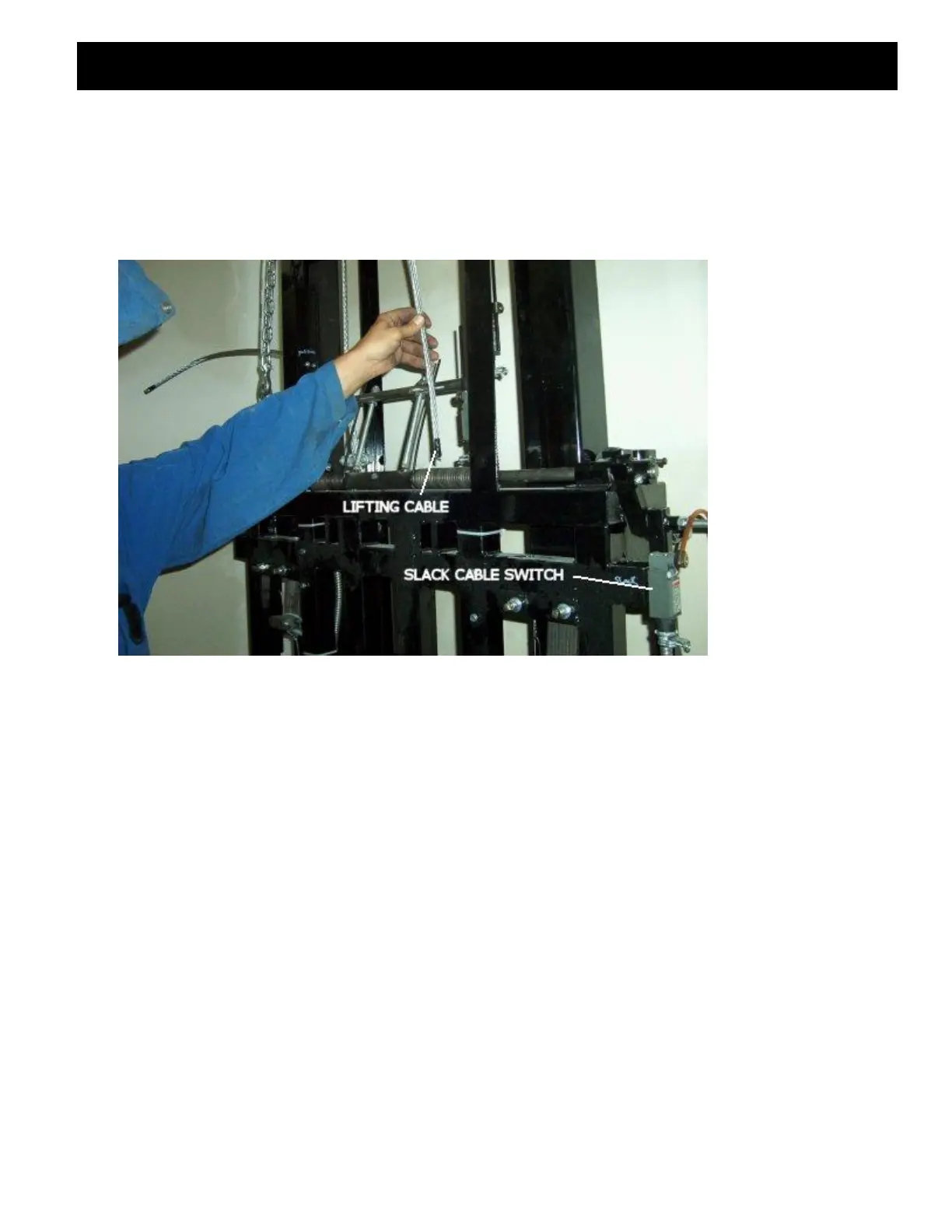

Figure 3. Location of the slack cable brake safety circuit switch.
NOTE:
Parts may not be exactly as shown
