SECTION 4 - CARRIAGE
Page 4-1
Rev B – June 2013
4.1
Remove the four bolts that connect the lower two wall
mounting brackets to the counter weight guides (FIG. 1).
4.2
Place carriage floor inside shaftway on 4 x 4 temporary
support tubes (2-2x4 studs on edge screwed together will
also work) (FIG. 2). Centre the carriage floor with the guide
rails.

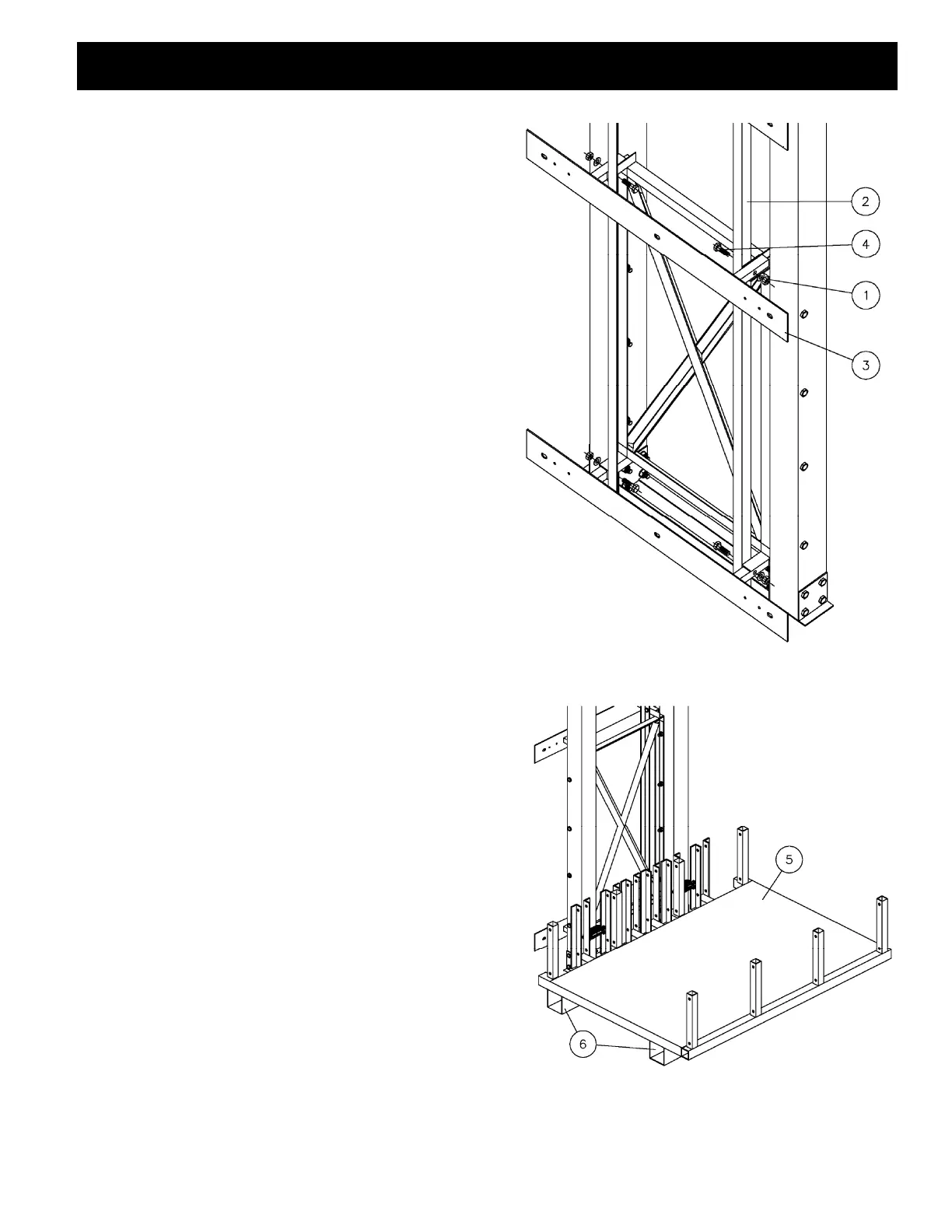

Figure 1. Removing the lower counter weight guide
bolts. Looking from behind the guide rails.
NOTE:
Refer to job specific shop drawings for details of these
items.
MATERIAL LIST PART #
1. 7/16 nylon lock nut PGAGF030
2. Lower counter weight guides *NOTE
3. Wall mounting bracket FFBUG008
4. 7/16 x 1 3/4 bolt PGAGF042
5. Carriage floor *NOTE
6. Temporary 4 x 4 support tubes
Figure 2. Placing the carriage floor inside the
shaftway.
