SECTION 8 – OVER SPEED GOVERNOR
Page 8-1
Rev 1A – Oct. 2003
8.1
Figure 1 shows the basic configuration of the over speed governor. The over speed governor is always on the left side
of the guide rails.
NOTE:
Not all installations require an over speed governor.
MATERIAL LIST PART #
1. Over speed governor bracket FMBUG050
2. Over speed governor
3. OSG counter weight assembly AMBUG057
4. OSG counter weight guide FMBUG055
5. ¼” dia. OSG pulley cable

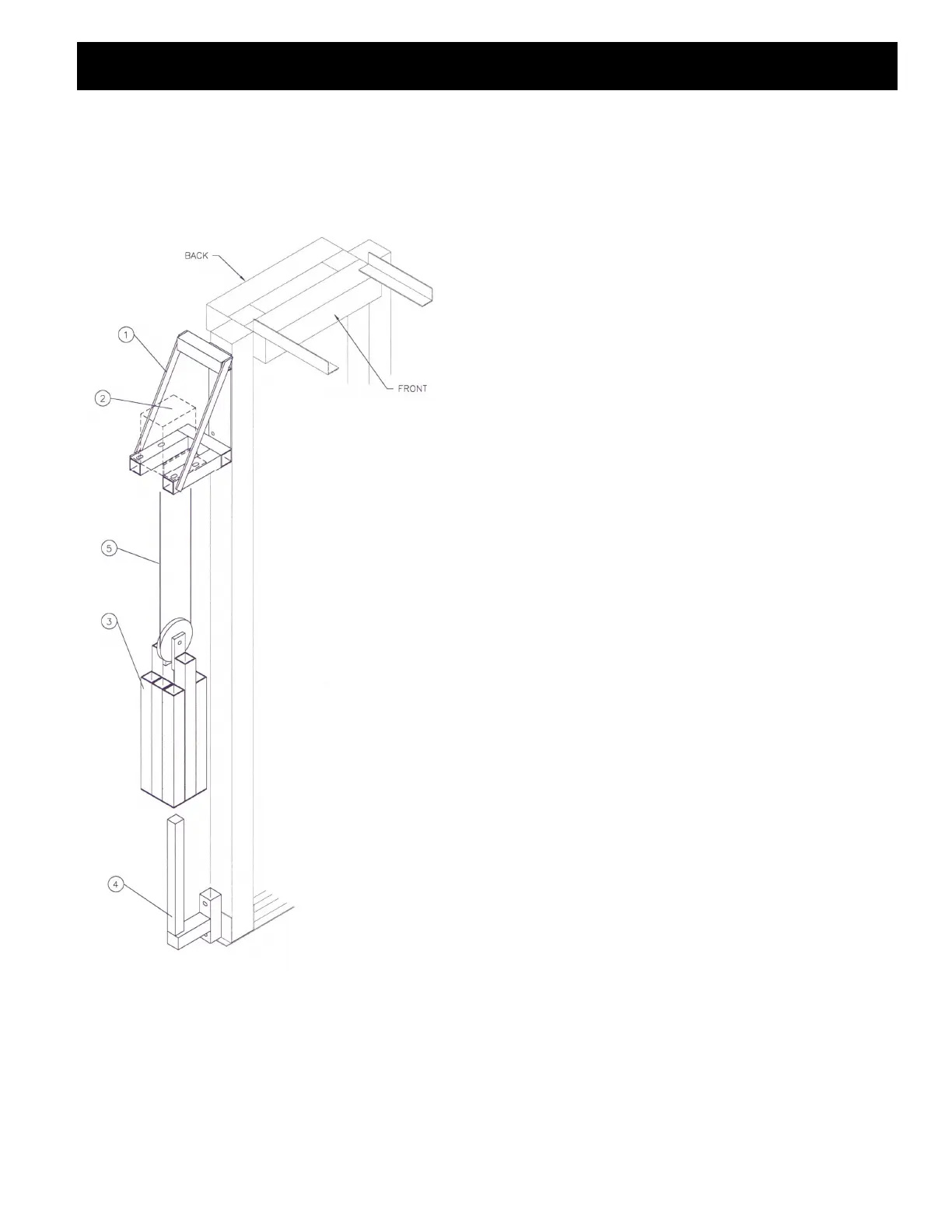

Figure 1. Typical over speed governor
configuration
