SECTION 7 – DOOR LOCK OPERATOR CAMS
Page 7-4
Rev 1A – Oct. 2003
GAL Interlocks (Swing Doors)
7.5
Figure 7 shows a typical GAL cam configuration for an adjacent shaft.

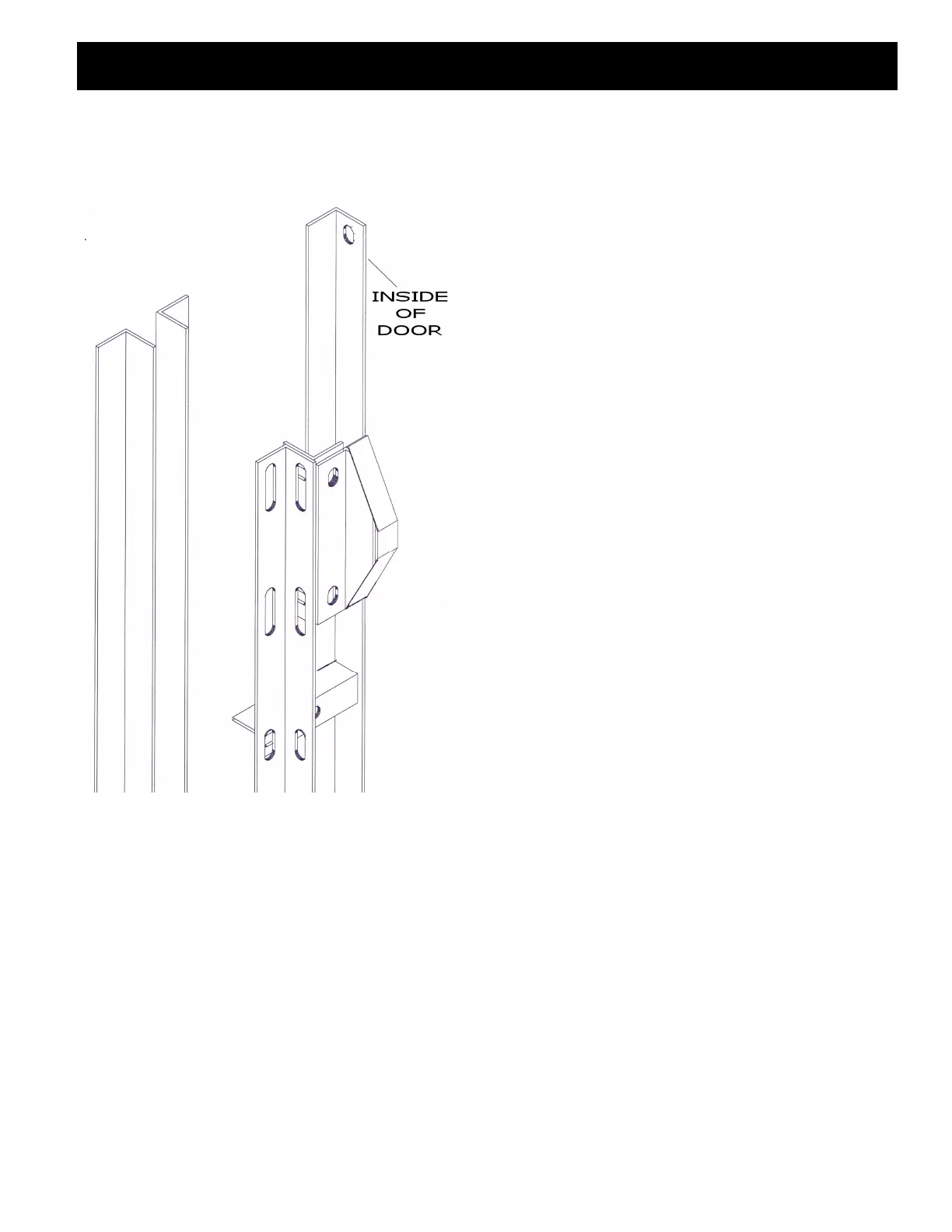

Figure 7. GAL cam configuration (adjacent
carriage).
