Front PDC Additional Fuses
The additional fuse box is located inside the front PDC
Box.
Cavity Mini Fuse Description
F61 20 Amp
Yellow
Vacuum Pump (3.6 Gaso-
line Engine) — If
Equipped
F62 30 Amp
Green
Transmission Power
RELE (3.6 Gasoline En-
gine) — If Equipped
F64 7.5 Amp
Brown
Urea Pump (3.0 Diesel
Engine) — If Equipped
F65 25 Amp
White
Urea NOX Sensor 1–2 —
PM Sensor (3.0 Diesel
Engine) — If Equipped
F66 5 Amp
Beige
STM (3.6 Gasoline En-
gine) — If Equipped

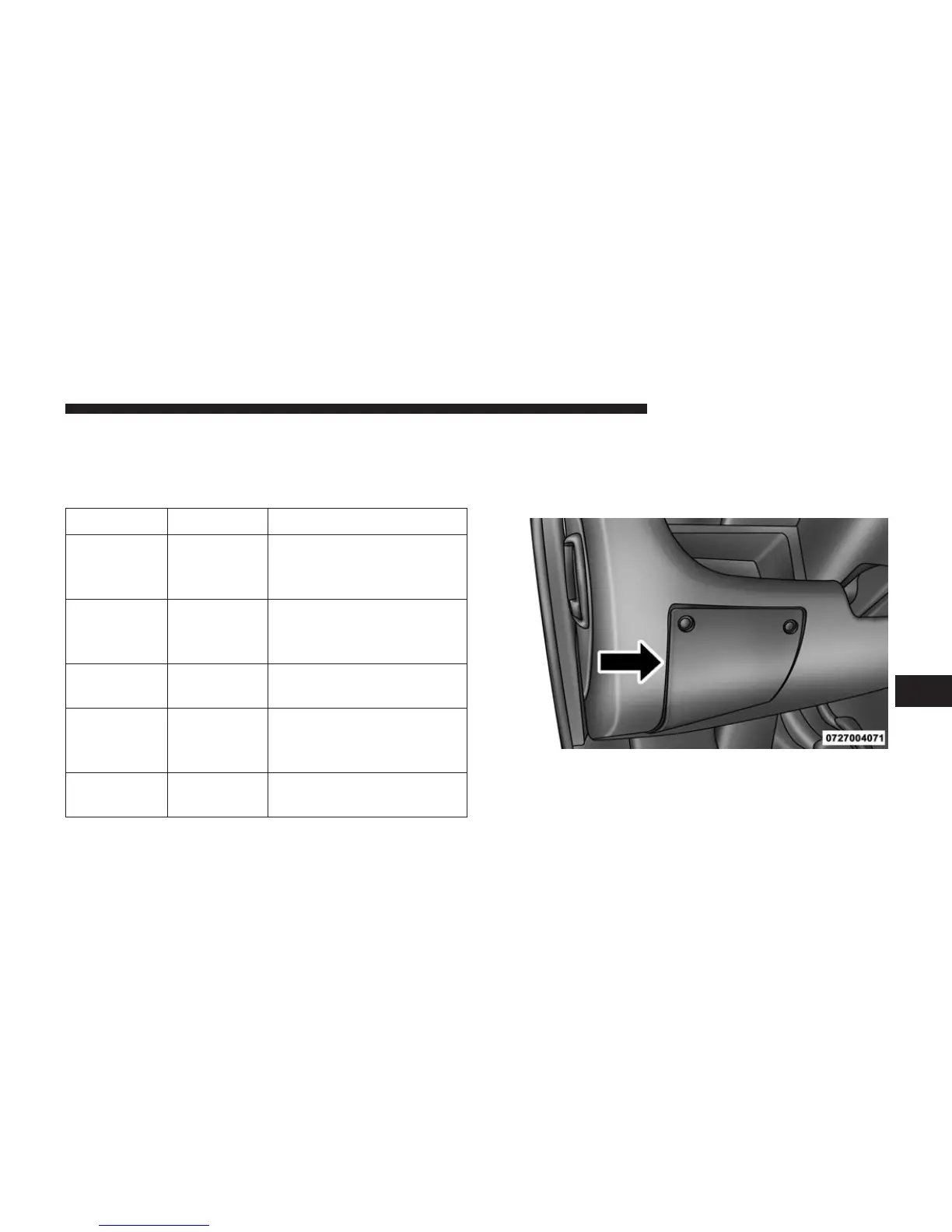

Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Fuse Panel
7
MAINTAINING YOUR VEHICLE 353
