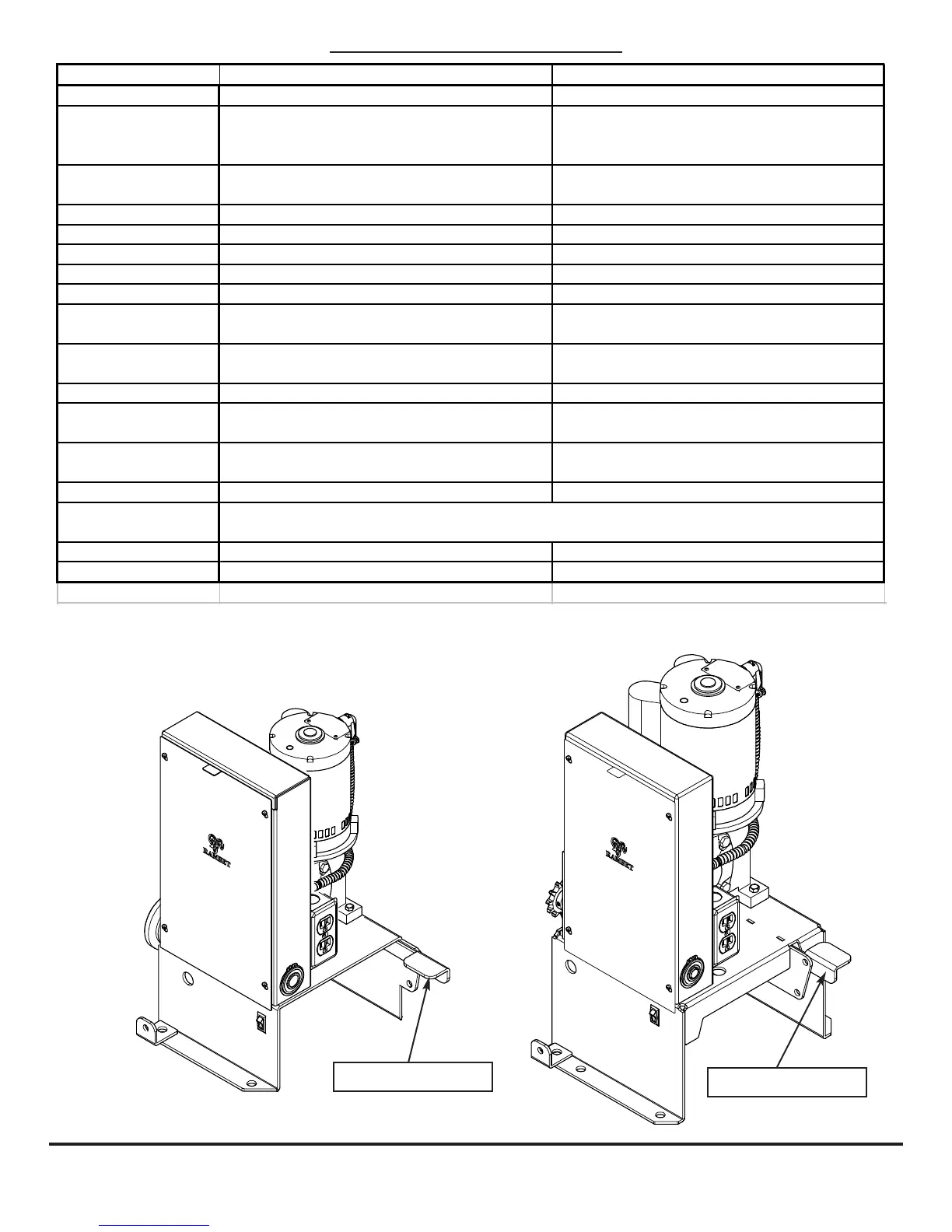

MECHANICAL SPECIFICATIONS:
RAM-5500 UL
foot pedal release
foot pedal release
RAM-1000 UL
Model:
RAM-1000 UL RAM-5500 UL
Power Input:
120VAC 120VAC
Continuous Duty
Motor:
1/2 HP, 120VAC, 4.5 A, 1,625 RPM with High
Speed Bearings
3/4 HP, 120VAC, 8.5 A, 1,625 RPM with High
Speed Bearings
Capacitor:
Aerovox 65µƒ, 240 V, 50/60 HZ, protected S
10000 AFC
Aerovox 65µƒ, 240 V, 50/60 HZ, protected S
10000 AFC
Cycles:
Continuous Continuous
ON/OFF Switch:
120 VAC & 2 outlets 120 VAC & 2 outlets
Max Gate Length:
35 ft. 45 ft.
Max Gate Weight:
1000 lbs 1500 lbs
Gate Travel Speed:
12 inches per second 12 inches per second
Reduction:
By worm gearbox continually lubricated in an
oil bath.
By worm gearbox continually lubricated in an
oil bath.
Fini sh & Ch a ssi s:
Rust-preventing Gold/Zinc coated 3/16" sheet
metal
Rust-preventing Gold/Zinc coated 3/16" sheet
metal
Gate Stops:
with limit switches with limit switches
Chain:
20 ft. of Nickle-plated chain to inhibit corrosion 20 ft. of Nickle-plated chain to inhibit corrosion
Cover:
Polyethylene, high-impact resistance Polyethylene, high-impact resistance
Color:
Charcoal Gray Charcoal Gray
Emergency Release:
Shipping Weight:
95 lbs. 110 lbs.
Overall Dimensions:
W=13-1/2", D=14-1/2", H=22" W=16-1/2", D=14-1/2", H=26"
Depress foot pedal release to disengage gate from motor so it can be opened manually in the
event of an emergency. An optional battery backup system is also available.
1/2 HP
MOTOR
3/4 HP
MOTOR
