RAMSET RAM-1000 UL - Wire Gauge and Voltage Drop

RAMSET z RAMSET z RAMSET RAMSET z RAMSET z RAMSET
- 5 -
RUN START 14 GA 12 GA 10 GA 8 GA
120V Single Phase 1/2 4.7 5.0 up to 50' 50-100' 100-200' 200-300'
120V Single Phase 3/4 5.8 6.5 up to 50' 50-100' 100-200' 200-300'
AMPERES
MAXIMUM CONDUIT DISTANCE IN FEET
USING COPPER WIRE BY WIRE SIZE
INPUT POWER
MOTOR HP
RECOMMENDED WIRE GAUGE / VOLTAGE DROP CHART
Low voltage control wires must be run in a separate conduit to the operator.
E
D

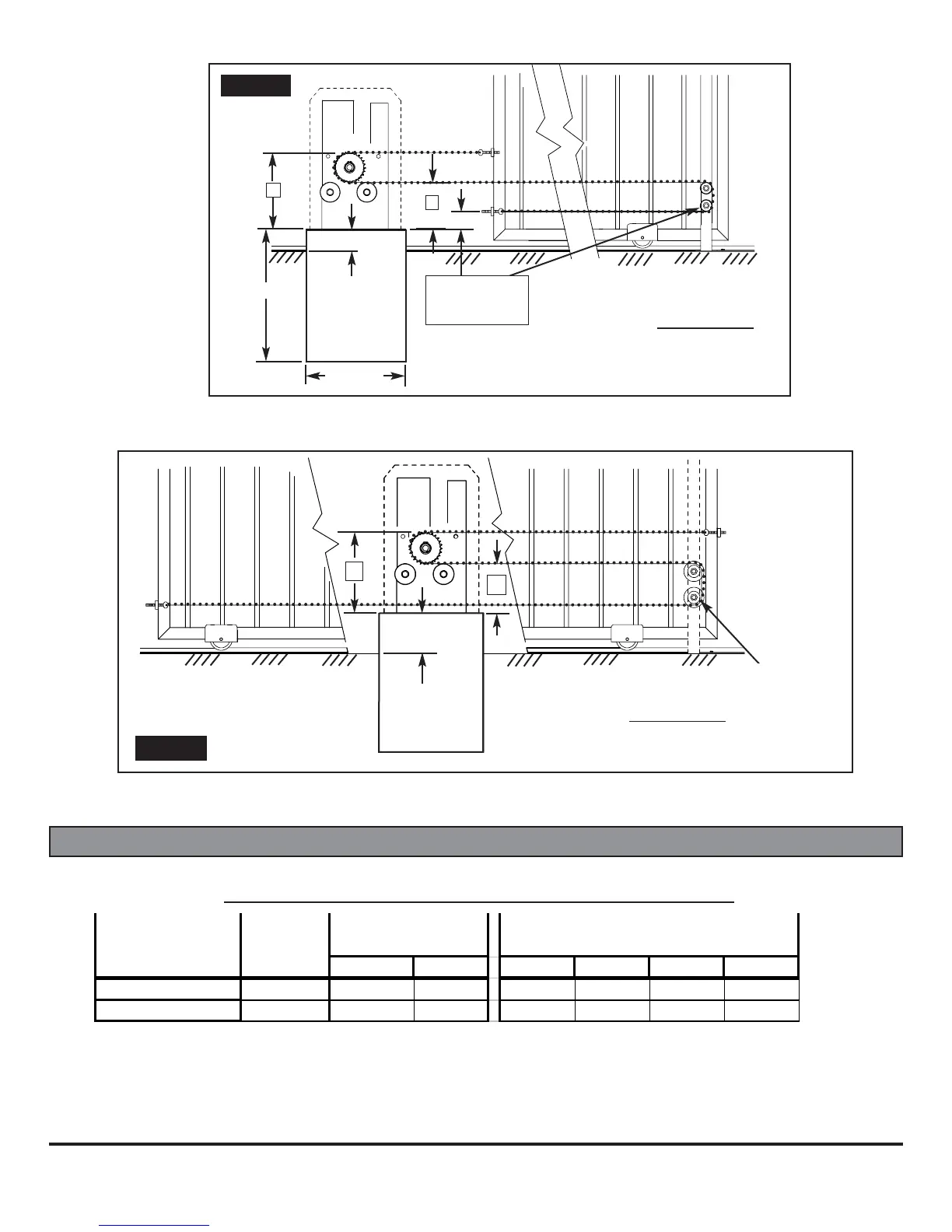

Rear Installation
Gate Shown Fully Open
No tail on gate required
Figure 4
24”
Dim “D” minus
distance deter-
mined by pulleys
E
D
Center Installation
Gate Shown Fully Open
Figure 5
6” min.
Concrete Pad
2-1/2” diameter
UHMW Pulley
No tail on gate required
18” x 18”
Concrete Pad
6” min.
