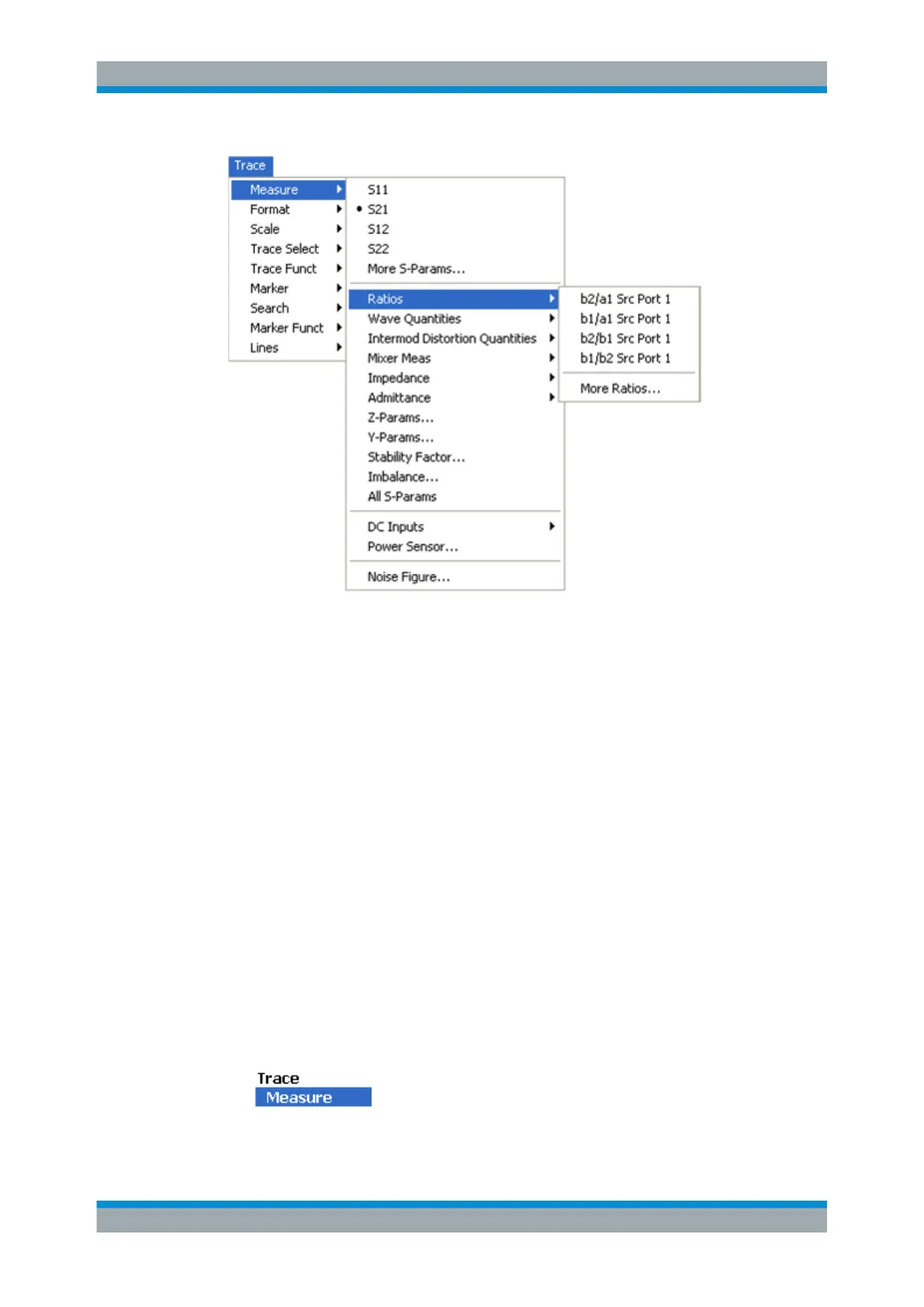

A menu command with a right arrow expands a submenu with further related set-
tings.
Example: "Measure" expands a submenu to select the quantity to be measured
and displayed.
●
A menu command with three dots appended calls up a dialog providing several
related settings.
Example: "More S-Parameters..." opens a dialog to select S-parameters for multi-
port measurements or mixed mode S-parameters.
●
A menu command with no arrow or dots directly initiates an action.
Example: "S21" selects the forward transmission coefficient S
21
as measured
quantity.
●
A dot preceding the menu command indicates the current selection in a list of alter-
native settings.
Example: In the figure above, S
21
is selected as measured quantity.
3.2.1.3 Softkey Bar
The softkey bar displays the commands of the active menu so that they can be activa-
ted by hitting the associated keys on the front panel.
It consists of three elements:
●
Heading
Screen Elements
