MP2015 MANUAL

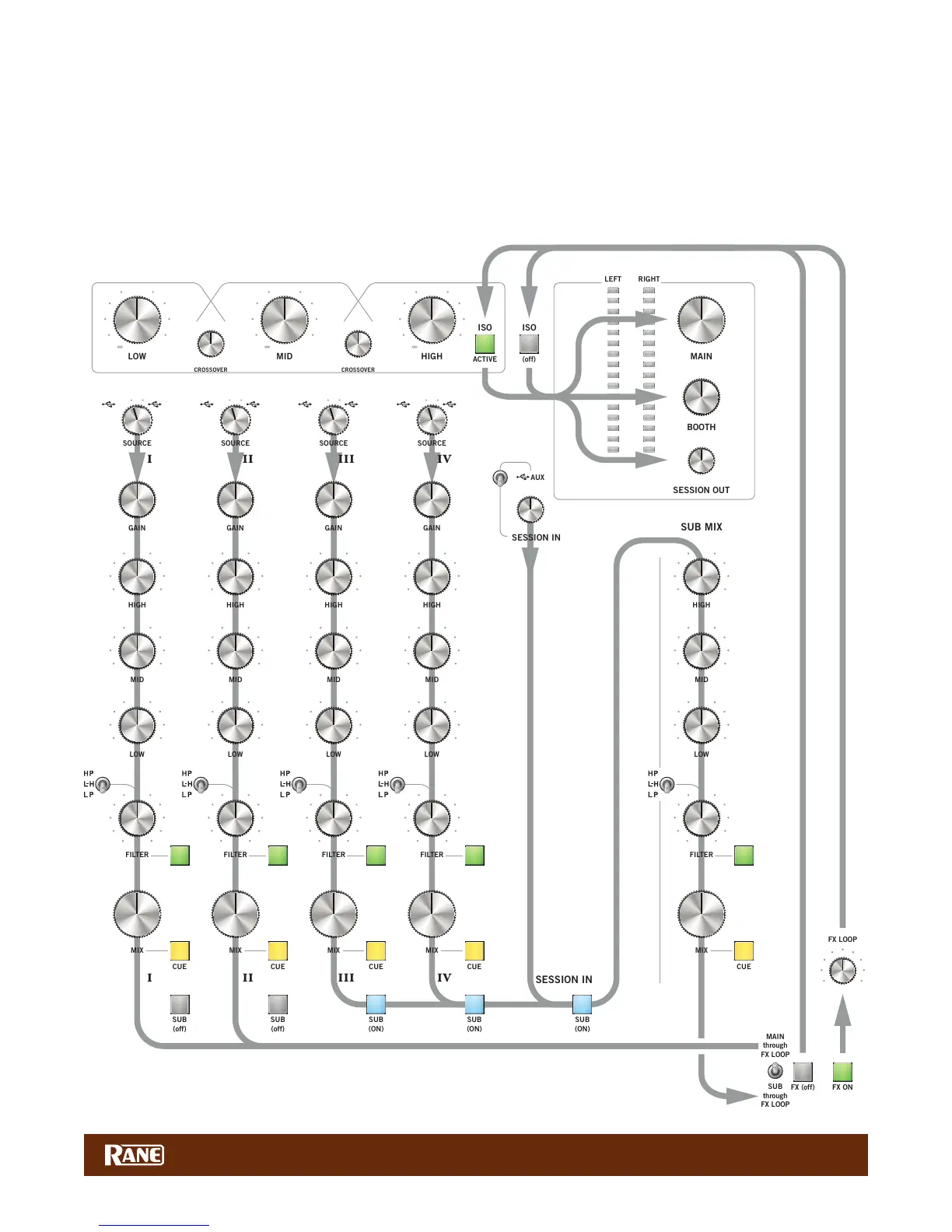

Submix Signal Flow
Starting from the Source selectors, the signal passes through the Gain, Tone, Filter and Mix controls. This graphic has the
SUB buttons, Session In and FX control positions re-arranged to more easily see the signal ow.
• If SUB is not pressed (see Decks 1 and 2) then the signal goes to the FX Loop (if it's on), then the ISO EQ (if it's on),
then to the Main Outputs.
• If SUB is pressed (see Decks 3, 4, and Session In) then the signals are combined and go through another set of
Tone, Filter and Mix controls. From here, the Submix can go through the FX Loop (if it's on), then the ISO EQ (if it's
on), then to the Main Outputs.
